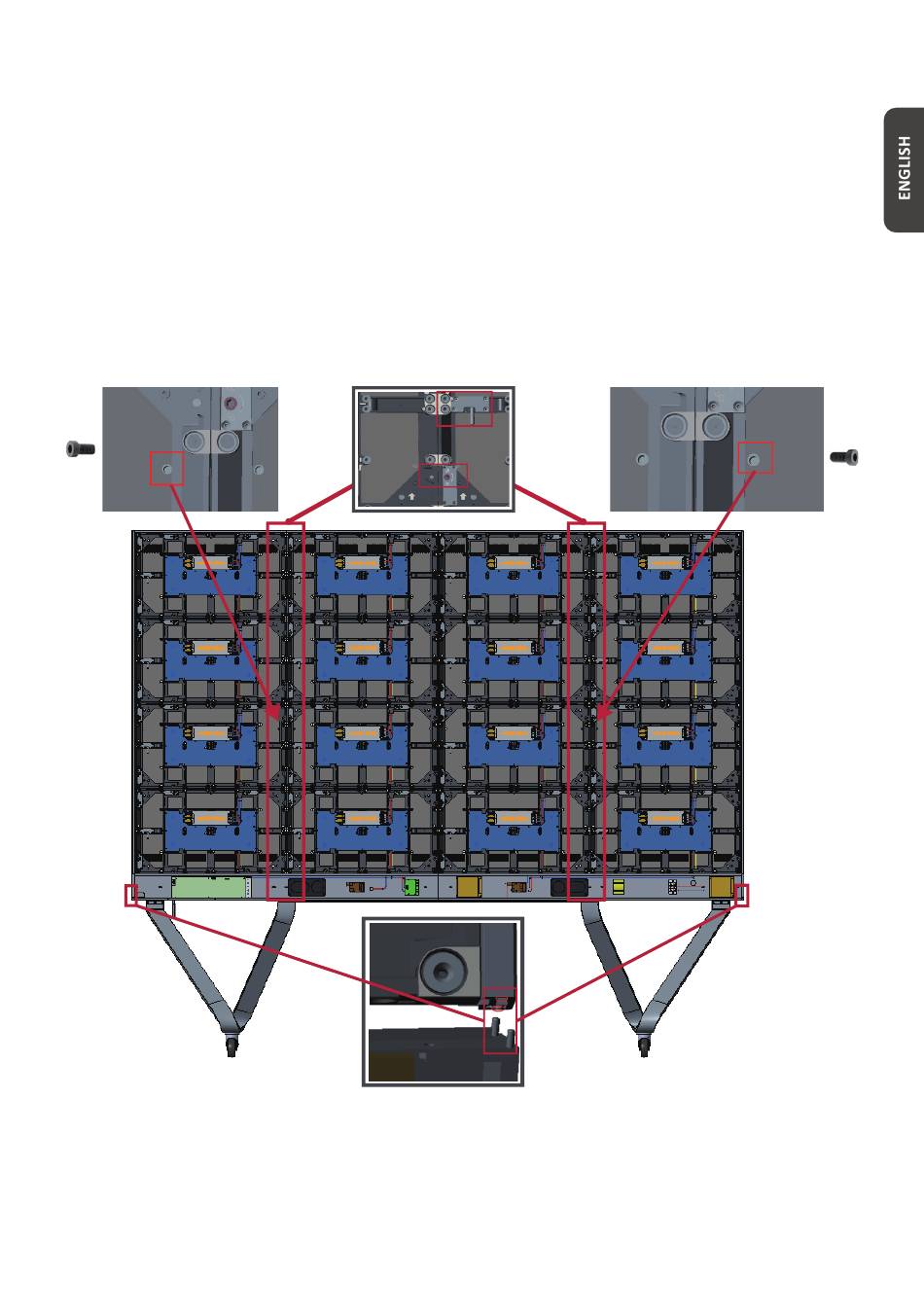

Installing the Left and Right Cabinet
1. Carefully lift the Left and Right Cabinet up onto the Floor Stand, securing the Mount-
ing Bracket into the support channel of the Top Cross Beam. The bottom of the Cabi-
net will rest on the Bottom Cross Beam.
NOTE:
Ensure the holes of the Cabinet and the System Control Box are aligned.
2. Push each Locking Bolt and lock each Hook with the hex tool to securely connect the
Left and Right Cabinet to the Middle Cabinets.
3. Secure the Left and Right Cabinet to the Support with the provided screws (M6x-
10mm).
NOTE:
There are four (4) Locking Bolts and eight (8) Hooks between each cabinet.
