Interrupteur à badge
Card operated switch
Badge schakelaars
675 63

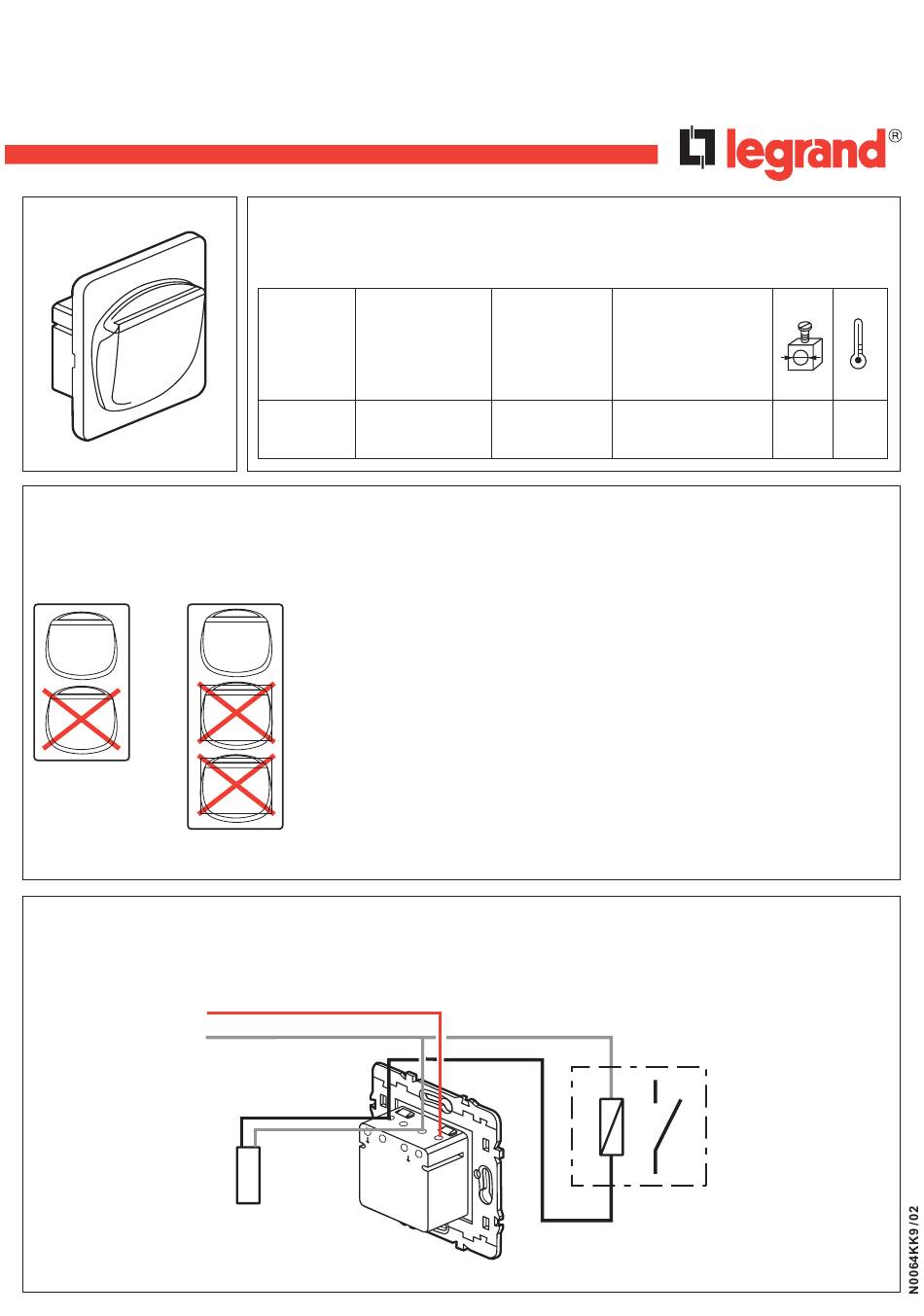

Installation
Einbau
Câblage
Verdrahtung
L
N
Card-Schalter
Interruptor con etiqueta
de identificación
Caractéristiques techniques
Technische gegevens
Technical characteristics
Tension
Consommation
Spanning
Verbruik
Voltage
Consumption
Spannung
Stromverbrauch
Tensión
Consumo
~
110 / 230 V
50/60 Hz
Installatie
Installation
Instalación
Lorsque l'interrupteur à badge commande un contacteur, installer un
compensateur réf. 401 39 en parallèle de la bobine du contacteur.
Wanneer een schakelaar met badge een contactschakelaar bedient, instleer
dan een compensator met ref. 401 39 parallel aan de spoel van de
contactschakelaar.
When the badge switch controls a contactor, install a compensator,
cat. no. 401 39 in parallel with the contactor's coil.
Wenn der Badge-Schalter einen Schütz ansteuert, einen Kompensator 401 39
parallel zur Spule des Schützes installieren.
Cuando el interruptor con tarjeta controle un contactor, instalar un
compensador ref. 401 39 en paralelo de la bobina del contactor.
Bedrading
Cableado
110 / 230 V
401 39
Intensité
Stroomsterkte
Current
Stromstärke
Intensidad
2 mA
0,15 A
Wiring
N
L
Technische Daten
Características técnicas
Puissance d'appel
Oproepvermogen
Inrush power
Leistungsaufnahme
Potencia de llamada
min : 1,5 VA
max : 100 VA
2 x
-5°C
2
2,5 mm
+40°C
