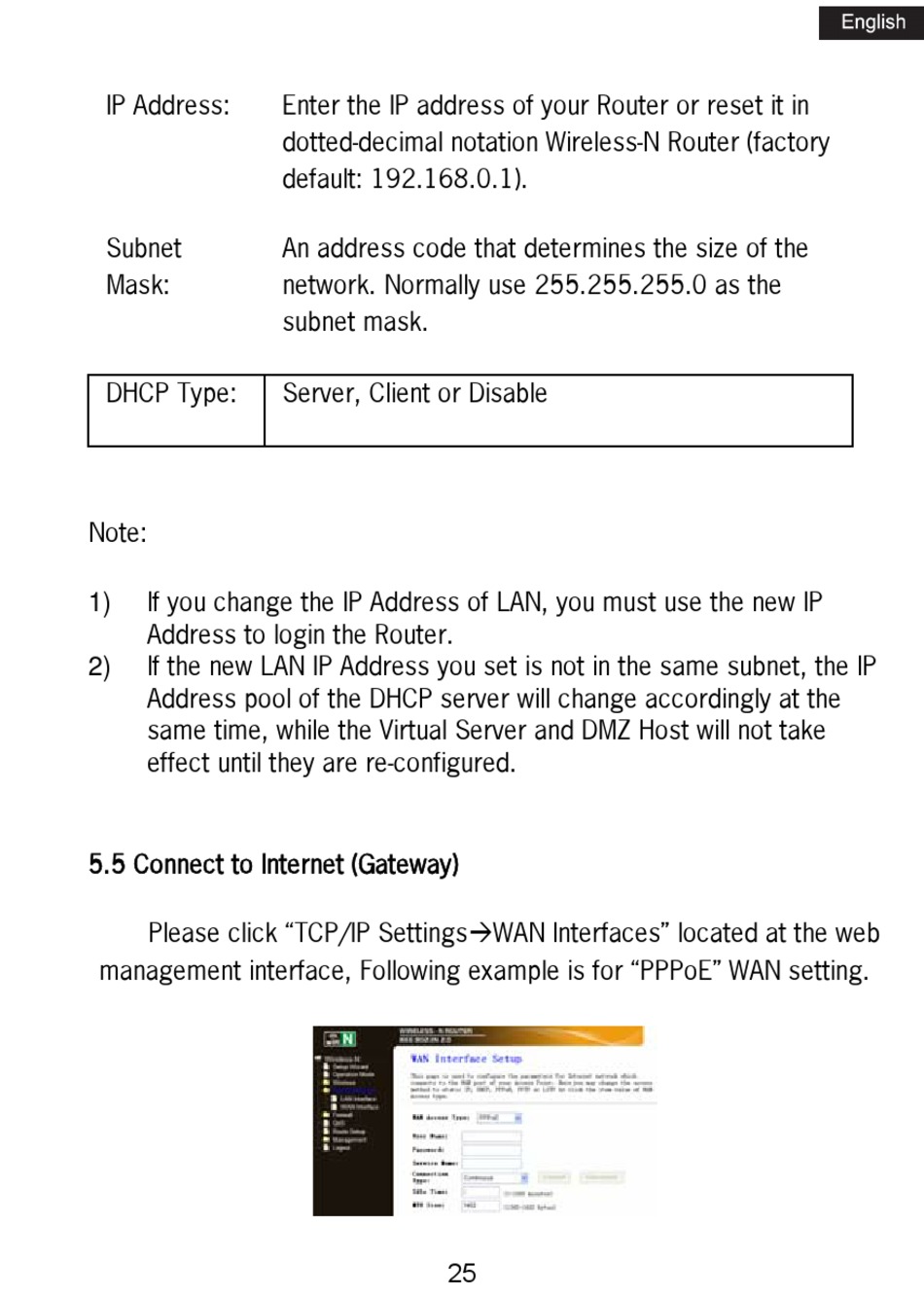

aqprox! appR150V2 Gebrauchsanweisung Seite 25

IP Address:
Subnet
Mask:
DHCP Type:
Note:
If you change the IP Address of LAN, you must use the new IP
1)
Address to login the Router.
If the new LAN IP Address you set is not in the same subnet, the IP
2)
Address pool of the DHCP server will change accordingly at the
same time, while the Virtual Server and DMZ Host will not take
effect until they are re-configured.
5.5 Connect to Internet (Gateway)
Please click „TCP/IP SettingsWAN Interfaces‰ located at the web
management interface, Following example is for „PPPoE‰ WAN setting.
Enter the IP address of your Router or reset it in
dotted-decimal notation Wireless-N Router (factory
default: 192.168.0.1).
An address code that determines the size of the
network. Normally use 255.255.255.0 as the
subnet mask.
Server, Client or Disable
