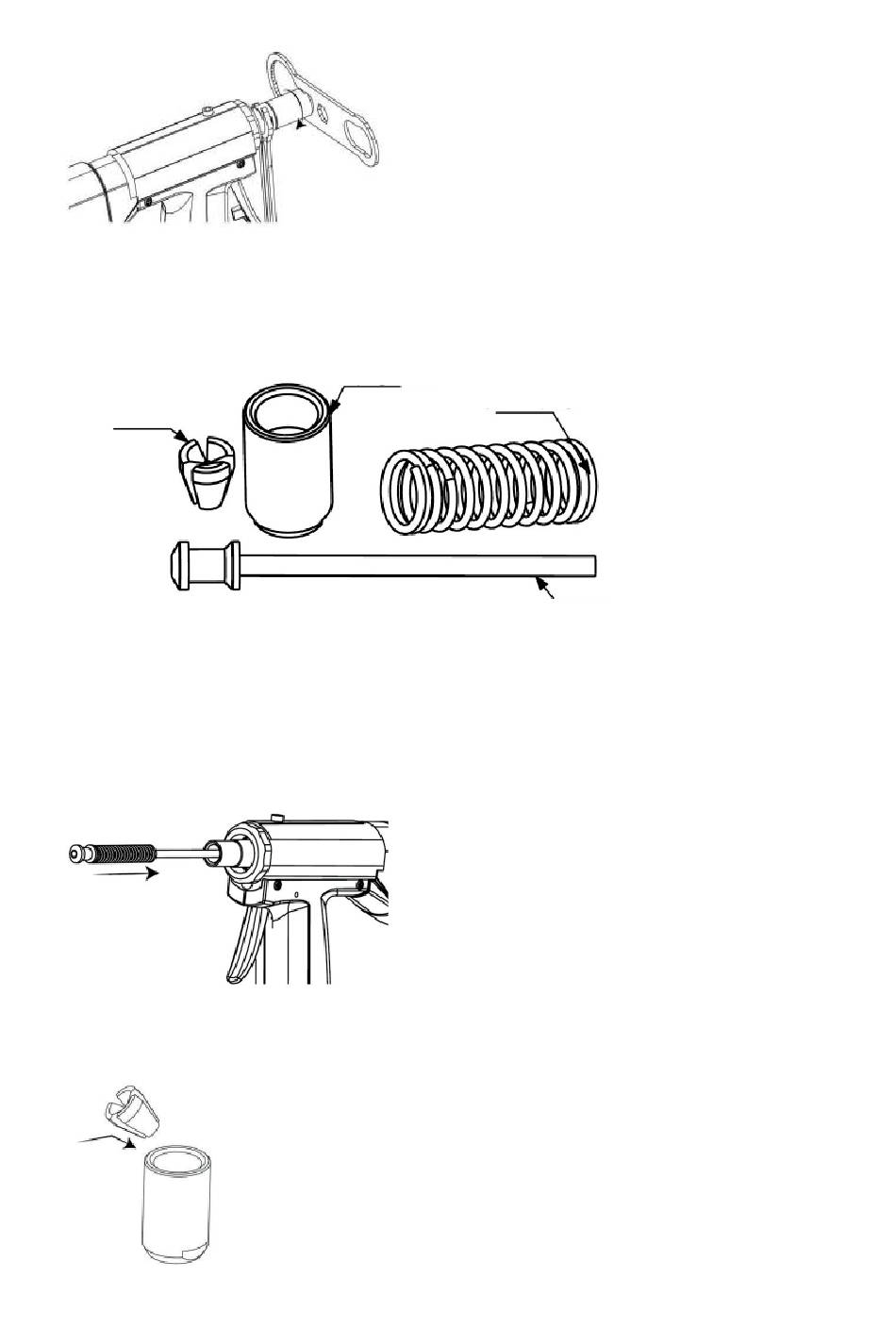

Disassemble the clamping socket (3):
Take the 3-pcs. set of clamping jaws (4) out of the clamping socket (3) and take the as-
sembly pusher (5) and the pusher spring (6) out of the device and clean them all. In the
meantime check whether some parts are worn out or damaged and replace those by
new ones:
3-pcs. set of
clamping
Reassemble the cleaned / exchanged parts into the device. Place the pusher spring (6)
back onto the pusher (5) and put them back into the device at the place where there ist
he oil cylinder (11) as well:
Place the 3-pcs clamping jaw (4) into the clamping socket (3). Make sure that the 3 jaws
are placed into the right position:
Mandrel bushing
clamping socket
Pusher spring jaws
Assembly pusher
