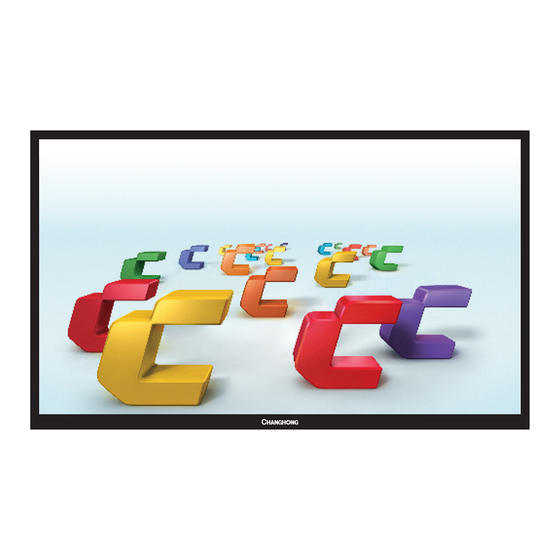

All manuals and user guides at all-guides.com Operation Manual Model: LED28C2200H CHANGHONG EUROPE ELECTRIC S.R.O. Argentinská 286/38, 170 00 Praha 7, Czech Republic Tel: 0042 (0) 242408849 Fax: 0042 (0) 220951190 Service E-mail: info@changhongeurope.cz Web site: www.changhongeurope.com AT /...
Seite 2
All manuals and user guides at all-guides.com...
Seite 3
All manuals and user guides at all-guides.com Contents Warning…………………………………………………….…………………………1 Safety instructions………………………………………………………………….3 Getting Started………………………………………………………………………5 Using the remote control…………………………………………………………5 Installing Batteries in the Remote Control……………………………………...5 Battery replacement………………………………………………………………5 Connection and setup……………………………………………………………...6 Cable Installation………………………………………………………………….6 Remote Control……………………………………………………………………...7 Basic Operation……………………………………………………………………..9 QUICK START GUIDE…………………………………………………………...9 Turning on and off the TV………………………………………………………..9 Programme Selection…………………………………………………..……10 Volume adjustment……………………………………………………………...10 Changing the Input Source……………………………………………………..10...
Seite 4
All manuals and user guides at all-guides.com Warning CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
Seite 5
All manuals and user guides at all-guides.com Warning WARNING To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. The Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
All manuals and user guides at all-guides.com Safety instructions IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 7. Do not block any of the ventilation 2. Keep these instructions. openings. Install in accordance with 3. Heed all warnings. the manufacturer's instructions. 4.
Seite 7
All manuals and user guides at all-guides.com Safety instructions 10. Protect the power cord from being 13. Unplug this apparatus during walked on or pinched particularly at lightning storms or when unused for plugs, convenience receptacles, long periods of time. and the point where they exit from the apparatus.
All manuals and user guides at all-guides.com Getting Started Using the remote control When using the remote control, aim it at remote sensor on the television. If there is an object between the remote control and the remote sensor on the unit, the unit may no operate.
All manuals and user guides at all-guides.com Connection and setup Cable Installation Please read the relevant content in "Notice for Maintenance and Safety" carefully before the installation and use. 1. Take out the TV from the package and put it in a drafty and flat place. NOTE: When you plug or unplug the TV, computer or other equipments, you must make sure that the AC power has been already shut down;...
All manuals and user guides at all-guides.com Remote Control The buttons of the original remote control are as following: : Power, switch on or off TV set. : Press to mute or restore sound. STILL: Press to hold the picture. : Hold the teletext page on display, press again to release.
Seite 11
All manuals and user guides at all-guides.com Remote Control LIST: Press to call up the channel list. Press again to exit it. 18. NUMBER BUTTONS: Choose channels or password importation. AUDIO (∞I/II): The button can be used to switch between DualⅠ/ DualⅡ/ DualⅠ...
All manuals and user guides at all-guides.com Basic Operation QUICK START GUIDE • Connection 1. Connecting the mains and antenna. 2. If TV has a power switch, turn it on firstly. Then press Power button on the remote to turn on the TV. •...
All manuals and user guides at all-guides.com Basic Operation Programme Selection • Using the CH+/CH- on the panel of TV or on the remote control. Press CH+ to increase channel number. Press CH - to decrease channel number. • Using 0- 9 digital buttons. You can select the channel number by pressing 0 to 9.
All manuals and user guides at all-guides.com Menu Operation Configuring the Picture Menu • Picture Mode You can select the type of picture which best corresponds to your viewing requirements. The manufacture’s recommendation mode is Standard. • Brightness Adjusts the base level of the signal in the picture.
Seite 15
All manuals and user guides at all-guides.com Menu Operation Configuring the Sound Menu • Sound Mode You can select a sound mode to suit your personal preferences. • Treble Adjust the treble effect. Increases or devreases high-pitched sounds. • Bass Adjust the bass effect.
Seite 16
All manuals and user guides at all-guides.com Menu Operation Configuring the Channel Menu • Tuner Type Before your TV can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Antenna or a Cable system).
Seite 17
All manuals and user guides at all-guides.com Menu Operation - Analog Manual Scan: Press the▲/▼button to select the Analog Manual Scan, then press the ENTER button to enter sub-menu. Analog Scan: Press the◄/►button to select Analog Scan. Channel to Save: Press the◄/►button to select channel. Color System: Press the◄/►button to select Color System.
Seite 18
All manuals and user guides at all-guides.com Menu Operation Configuring the Lock System Menu • Enter Password The following items are only available if the password input is correct. Default password is 0000, and if forget what you set, please call the service c enter.
Seite 19
All manuals and user guides at all-guides.com Menu Operation - Restore from USB Restore data from USB. - Recall Recall the default settings of Hotel mode. C onfiguring the Setup Menu • OSD Language Select your prefer red On Screen Display language.
Seite 20
All manuals and user guides at all-guides.com Menu Operation • PVR Settings (In DTV mode) Press the▲/▼button to sel ect PVR Settings, then press ENTER button to enter sub-menu. It will check the USB. File Manager: To disp lay the Recorded list. Replay: Press the red button to replay video.
Seite 21
All manuals and user guides at all-guides.com Menu Operation Using MED IA mode • To Access/Quit MEDIA mode 1. Connect an USB device. 2. Press SOURCE button to display the main menu. Use the ▲/▼ to highlight MEDIA, and the ENTER button to access the MEDIA mode. 3.
Seite 22
All manuals and user guides at all-guides.com Menu Operation Bit Rate: up to MPEG-1 Layer 3 320Kbps *.mp3 Sample Rate: 32KHz, 44 .1KHz, MPEG-2 Layer 3 48KHz Music AAC(*.aac,*m4a) HE-AAC V1 HE-AA C V2 LPCM *.wav ADPCM 72x72 < B seline resolution <...
Seite 23
All manuals and user guides at all-guides.com Menu Operation hoto Press th e ◄/► button to select Photo in the main menu, then press ENTER button to enter. Press t he ◄/► button to select disk you want to watch, then press ENTER button to enter.
All manuals and user guides at all-guides.com Important Unique Buttons PROGRAM GUIDE (In DTV mode) Press the EPG button to enter PROGRAM GUIDE menu. Press the button to set the parameters for recording. You can choose the time of the appointment to record you want.
Seite 25
All manuals and user guides at all-guides.com Teletext Using the teletext feature • Display teletext 1. Select a TV station with a teletext signal. 2. Press the button to enter teletext mode. 3. Press the button 2nd to enter Mix mode, this function enables you to superimpose the teletext page over the TV program.
All manuals and user guides at all-guides.com Troubleshooting Guide Troubleshooting Before contact the service technician, perform the following simple checks. If any program still persists, unplug the TV and calling for serving. PROBLEM POSSIBLE SOLUTION - Check whether the main plug has been connected to a wall let.
Seite 27
All manuals and user guides at all-guides.com Troubleshooting Guide NOTE: There is a problem in VGA mode (Only VGA mode applied). PROBLEM POSSIBLE SOLUTION - Adjust resolution, horizontal frequency, or vertical frequency. The signal is out of range. - Check it whether the signal cable is connected or loose.
Seite 28
All manuals and user guides at all-guides.com Specifications Specification LED28C2200H Model 27.5”(70cm) Screen size Aspect ratio 16:9 WXGA resolution 1366×768 Brightness(cd/㎡) Maximum color 16.7M 2400:1 Contrast Ratio 6.5ms Response time Video system PAL/SECAM Audio system B/G,D/K,I,L/L’ RF(75Ω) AV input Component Ypbpr...
Seite 29
All manuals and user guides at all-guides.com Obsah Varování………………………………………………….…………………………1 Bezpečnostní pokyny…………………………………………………………….3 Začínáme……..………………………………………………………………………5 Používání dálkového ovladače…………………………………………………5 Vkládání baterií do dálkového ovladače……………………………………...5 Výměna baterií……………………………………………………………………5 Připojení a nastavení……………………………………………………………...6 Instalace kabelu.………………………………………………………………….6 Dálkový ovladač…………………………………………………………………...7 Základní funkce……………………………………………………………………..9 STRUČNÝ NÁVOD K OBSLUZE……………………………………………...9 Zapnutí a vypnutí televizoru……………………………………………………..9 Výběr programu…………………………………………………………….9 Nastavení...
All manuals and user guides at all-guides.com Varování POZOR RIZIKO ÚRAZU ELEKTRICKÝM PROUDEM NEOTVÍRAT UPOZORNĚNÍ: CHCETE-LI SNÍŽIT RIZIKO ÚRAZU ELEKTRICKÝM PROUDEM, NEOTVÍREJTE KRYT (NEBO ZADNÍ PANEL PŘÍSTROJE). UVNITŘ NEJSOU ŽÁDNÉ KOMPONENTY, KTERÉ BY MOHL UŽIVATEL SÁM OPRAVIT. VŽDY SE OBRAŤTE NA VYŠKOLENÉ...
Seite 31
All manuals and user guides at all-guides.com Varování VAROVÁNÍ Chcete-li snížit riziko požáru nebo úrazu elektrickým pouzdrem, nevystavujte přístroj působení deště nebo vlhka. Větrací otvory nesmějí být zakryty takovými předměty jako noviny, ubrusy, záclony atd., protože tím se zabraňuje nezbytnému větrání. Nenechte na přístroj kapat vodu, nedovolte, aby do něj natekla voda a nestavte na něj žádné...
All manuals and user guides at all-guides.com Bezpečnostní pokyny DŮLEŽITÉ BEZPEČNOSTNÍ POKYNY 1. Přečtěte si tyto pokyny. 7. Neblokujte žádný větrací otvor. 2. Uložte si tyto pokyny. Nainstalujte podle pokynů výrobce. 3. Dbejte na všechna upozornění. 4. Dodržujte všechny pokyny. 5.
Seite 33
All manuals and user guides at all-guides.com Bezpečnostní pokyny 10. Chraňte napájecí šňůru, nešlapejte 13. Přístroj vypojte ze sítě za bouřky po ní, zabraňte jejímu smáčknutí, a nebo v případě, že ho nebudete to zejména v blízkosti zástrček, dlouhou dobu používat. objímek a míst, kde vystupují...
Seite 34
All manuals and user guides at all-guides.com Začínáme Používání dálkového ovladače Při používání dálkového ovladače miřte na čidlo dálkového ovládání na televizi. Pokud bude mezi dálkovým ovladačem a čidlem dálkového ovládání na přístroji nějaký předmět, přístroj nemusí fungovat. Zamiřte dálkový ovladač na ČIDLO DÁLKOVÉHO OVLÁDÁNÍ na televizi. Pokud používáte tuto televizi ve velmi jasně...
All manuals and user guides at all-guides.com Připojení a nastavení Instalace kabelu Před instalací si přečtěte příslušný text sekce „Upozornění týkající se údržby a bezpečnosti“. 1. Vyjměte televizor z obalu a umístěte jej na rovný povrch na dobře větraném místě. POZN.: Když...
All manuals and user guides at all-guides.com Dálkový ovladač Popis tlačítek originálního dálkového ovladače: : Power, zapnutí a vypnutí televizoru. : vypnutí nebo obnovení zvuku. STILL: zmrazení obrazu. : pozastavení teletextové stránky, dalším stiskem se obnovuje. : zastavení (v režimu MEDIA/PVR). RADIO: přepnutí...
Seite 37
All manuals and user guides at all-guides.com Dálkový ovladač 18. TLAČÍTKA S ČÍSLICEMI: výběr kanálů nebo zadání hesla. 19. AUDIO (∞I/II): přepnutí zvuků Dual / Ⅰ Dual / Dual +Ⅱ/ Stereo/ Mono Ⅱ Ⅰ a v režimu DTV přepnutí jazyka zvuku. 20.
All manuals and user guides at all-guides.com Základní funkce STRUČNÝ NÁVOD K OBSLUZE • Připojení 1. Připojení napájení a antény. Pokud je televizor vybaven tlačítkem napájení, nejprve zapněte toto tlačítko. Stiskem tlačítka Power na dálkovém ovladači zapněte televizor. • Prvotní nastavení Při prvním zapnutí...
All manuals and user guides at all-guides.com Základní funkce Nastavení hlasitosti • Stiskem tlačítka VOL+/- upravíte hlasitost. • Zvuk úplně vypnete stiskem tlačítka • Zvuk znovu zapnete stiskem tlačítka nebo zvýšením hlasitosti. Přepnutí zdroje signálu Zdroj signálu vyberete stiskem tlačítka SOURCE na dálkovém ovladači. Stiskem tlačítka ▲/▼...
All manuals and user guides at all-guides.com Funkce menu Konfigurace nabídky Obraz • Obrazový režim Můžete vybrat typ obrazu, který nejlépe odpovídá vašim požadavkům. Režim doporučeného nastavení výrobce Obraz naleznete pod názvem Standard. Obrazový režim Standard • Jas Kontrast Nastavení základní úrovně signálu v Ostrost Nasycení...
Seite 41
All manuals and user guides at all-guides.com Funkce menu Konfigurace nabídky Zvuk • Zvukový režim Můžete vybrat re žim zvuku, který nejlépe odpovídá vašim požadavkům. • Zvuk Treble Zvukový režim Standard Nastave ní výšek. Zesílení nebo Treble zeslabení vysokých tónů. Basy Vyvážení...
Seite 42
All manuals and user guides at all-guides.com Funkce menu onfigurace nabídky Kanál • Tuner Type Než začnete ukládat kanály, musíte zadat typ zdroje signálu (anténa nebo rozvod kabelové televize). Při Kanál nesprávném nastavení nemusí být Tuner Type anténa Autohledání nalezen žádný kanál. Počet nalezených Ruční...
Seite 43
All manuals and user guides at all-guides.com Funkce menu Analogové lad ní ě : Stiskem tlačítka ◄/► vyberte Analogový sken. Channel to Save Stiskem tlačítka ◄/► vyberte kanál. Barevný systém: Stiskem tlačítka ◄/► vyberte Norma obrazu. Zvukový systém: Stiskem tlačítka ◄/► vyberte Norma z vuku.
All manuals and user guides at all-guides.com Funkce menu Konfigurace nabídky Zámek systému • Zadej heslo Následující položky jsou dostupné pouze po správném zadání hesla. Výchozí heslo je 0000, pokud nasta víte Zámek systému jiné heslo a zapomenete je, volejte Zadej heslo Povolit servis.
Seite 45
All manuals and user guides at all-guides.com Funkce menu - Záloha na USB Zálohování dat na USB. - Obnova z USB Obnova dat z USB. - Návrat Vyvolání výchozího nastavení z režimu Hotel. Konfigurace nabídky Nastavení • OSD jazy Vyberte požadovaný jazyk nabídek na obrazovce.
Seite 46
All manuals and user guides at all-guides.com Funkce menu Autousínání: nastavení požadované doby autom. usnutí. Time Zone: nastavení vašeho časového pásma. Čas: Stiskem tlačítka ▲/▼ vyberte Čas, poté stiskem tlačítka ENTER otevřete podnabídku. Nastavte Auto synch. na Vyp, poté může te čas nastavit ručně.
Seite 47
All manuals and user guides at all-guides.com Funkce menu Použití r ežimu MED IA • Vyvolání/opuštění režimu MED IA 1. Připojte USB zařízení. 2. Stiskem tlačítka SOURCE zobrazte hlavní nabídku. Stiskem tlačítka ▲/▼ zvýrazněte MEDIA, stiskem tlačítka ENTER vyvolejte režim MEDIA. MEDIA 3.
Seite 48
All manuals and user guides at all-guides.com Funkce menu H.264(AVC) HP @ Level 4 tový tok: až 320 MPEG-1 Layer 3 kbps *.mp3 Vzorkování: 32 kHz, 4 4.1 kHz, 48 MPEG-2 Layer 3 Hudba AAC(*.aac,*m4a) HE-AAC V1 HE-AA C V2 LPCM *.wav ADPCM...
Seite 49
All manuals and user guides at all-guides.com Funkce menu ◄/► tiskem tlačítka vyberte z hlavní nabídky Foto, poté stiskem tlačítka ENTER otevře te podnabídku. Stiskem tlačítka vyberte disk, který chcete přehrát, poté stiskem tlačítka ENTE ◄/► potvrďte. Stiskem tlačítka CH+/- přepněte stránku. Stiskem tla čítka INDEX vyvolejte rychlou nabídku.
All manuals and user guides at all-guides.com Důležitá specifická tlačítka E PG (v režimu DTV) Stiskem tlačítka EPG vyvolejte nabídku EPG. 01 Jan 2007 14:00:04 01 Jan 2007 14:00-01 Jan 2007 17:00 C/B 001 RED+MARKER 14:00 C/B 002 C/B 17:00 C/B 003 CROSS HATCH 004 4v3_MONOSCOPE 005 100%WHITE...
Seite 51
All manuals and user guides at all-guides.com Teletext Používání teletextu • Zobrazení teletextu 1. Vyberte televizní stanici s teletextovým signálem. 2. Stisknutím tlačítka se dostanete do režimu teletextu. 3. Dalším stisknutím tlačítka otevřete smíšený režim. Tato funkce vám umožní překrýt teletextem televizní program. 4.
All manuals and user guides at all-guides.com Řešení problémů Odstraňování problémů Než se obrátíte na servisního technika, zkuste problém vyřešit pomocí jednoduchých kroků. Pokud problém i nadále přetrvává, odpojte televizi a zavolejte servis. PROBLÉM MOŽNÉ ŘEŠENÍ - Zkontrolujte, zda je zástrčka napájecí šňůry zapojena do zásuvky Nenaskočil zvuk ani - Zkontrolujte, zda jste stiskli tlačítko POWER televizního...
Seite 53
All manuals and user guides at all-guides.com Řešení problémů POZNÁMKA: Problém v režimu VGA (týká se pouze režimu VGA). PROBLÉM MOŽNÉ ŘEŠENÍ - Upravte rozlišení, horizontální nebo vertikální kmitočet. Signál je mimo dosah. - Zkontrolujte, zda je signální kabel zapojen nebo odpojen.
Seite 54
All manuals and user guides at all-guides.com Specifikace Specifikace LED28C2200H Model 27.5”(70cm) Úhlopříčka Poměr stran 16:9 Rozlišení WXGA 1366×768 Jas(cd/㎡) Počet barev 16.7M 2400:1 Poměr kontrast 6.5ms Doba odezvy (ms) Video systém PAL/SECAM Audio systém B/G,D/K,I,L/L’ RF IN (75Ω) AV vstup Komponentní...
Seite 55
All manuals and user guides at all-guides.com Vsebina Opozorilo…………………………………………………….……………....1 Varnostna navodila……………………..………………………………...……….3 Pred prvo uporabo……………………………………………………….………… 5 Uporaba daljinskega upravljalnika……………………………..……...………5 Nameščanje baterij v daljinski upravljalnik……………..…….……..…...5 Zamenjava baterij……………………………………………………………...… 5 Priključitev in priprava………………………………………………………..6 Namestitev kabla………………………………………………………………….6 Daljinski upravljalnik……………………………………………………………..7 Osnovne operacije………………………....………….……….....9 VODIČ ZA HITER ZAČETEK…………………………...……………………..9 Vklapljanje in izklapljanje televizorja……………………………………..…..
Seite 56
All manuals and user guides at all-guides.com Opozorilo POZOR NEVARNOST ELEKTRIČNEGA UDARA, NE ODPIRAJ OPOZORILO: DA BI ZMANJŠALI TVEGANJE ELEKTRIČNEGA UDARA, NE ODSTRANJUJTE POKROVA (ALI HRBTIŠČA). IZDELEK NE VSEBUJE DELOV, KI BI JIH LAHKO SERVISIRAL UPORABNIK POSVETUJTE SE Z USTREZNO USPOSOBLJENIM SERVISNIM OSEBJEM.
Seite 57
All manuals and user guides at all-guides.com Opozorilo OPOZORILO Da bi zmanjšali tveganje požara ali električnega udara ne izpostavljajte tega aparata dežju ali vlagi. Prezračevanja ne sme ovirati prekrivanje prezračevalnih odprtin s predmeti, kot so časopisi, prti, zavese itd. Aparat ne sme biti izpostavljen kapljanju ali polivanju; na aparat ni dovoljeno postavljati predmetov, ki so napolnjeni z vodo, kot so na primer vaze.
All manuals and user guides at all-guides.com Varnostna navodila POMEMBNA VARNOSTNA NAVODILA 1. Preberite ta navodila. 7. Ne zastirajte prezračevalnih odprtin. 2. Shranite ta navodila. Namestite skladno z navodili 3. Upoštevajte vsa opozorila. proizvajalca. 4. Sledite vsem navodilom. 5. Naprave ne uporabljajte v bližini vode. 8. Ne nameščajte v bližini virov toplote, kot so radiatorji, grelniki, štedilniki ali drugi aparati (vključno z ojačevalniki), ki proizvajajo toploto.
Seite 59
All manuals and user guides at all-guides.com Varnostna navodila 10. Električni kabel zaščitite in ga 13. Med nevihtami ali kadar aparata speljite tako, da se po njem ne bo daljši čas ne uporabljate, ga izključite hodilo in da ga ne boste preščipnili, iz napajanja.
All manuals and user guides at all-guides.com Pred prvo uporabo Uporaba daljinskega upravljalnika Daljinski upravljalnik med uporabo usmerite v senzor televizorja. Če je med daljinskim upravljalnikom in senzorjem na televizorju predmet, sprejemnik na televizorju morda ne bo deloval. Daljinski upravljalnik usmerite v SENZOR televizorja. Če televizor uporabljate v zelo svetlem prostoru, INFRARDEČI SENZOR ZA DALJINSKI UPRAVLJALNIK morda ne bo deloval pravilno.
Seite 61
All manuals and user guides at all-guides.com Priključitev in priprava Namestitev kabla Prosimo, da pred namestitvijo in uporabo prozorno preberete ustrezne vsebine v poglavju »Opozorilna in varnostna navodila«. 1. Televizor vzemite iz embalaže in ga postavite na zračno in ravno mesto. OPOMBA: Ko vklapljate ali izklapljate televizor, računalnik ali drugo opremo, poskrbite, da bo električno napajanje AC že izključeno;...
All manuals and user guides at all-guides.com Daljinski upravljalnik Gumbi originalnega daljinskega upravljalnika so, kot sledi: : Energija, vklop ali izklop televizorja. : Pritisnite za izklop in vklop zvoka. MIROVANJE: Pritisnite za zaustavitev slike. : Zadrževanje strani s teletekstom na zaslonu;...
Seite 63
All manuals and user guides at all-guides.com Daljinski upravljalnik 17. SEZNAM: Pritisnite za priklic seznama kanalov. Za izhod pritisnite ponovno. 18. ŠTEVILSKI GUMBI Izbira kanalov ali vnos gesla. 19. AVDIO (∞I/II): Gumb je mogoče uporabljati za preklop med načini DualⅠ/ DualⅡ/ DualⅠ+Ⅱ/ Stereo/ Mono in preklop zvočnega jezika v način DTV.
All manuals and user guides at all-guides.com Osnovne operacije VODIČ ZA HITER ZAČETEK • Priključitev 1. Priključitev kablov in antene. 2. Če je televizor opremljen s stikalom, ga najprej vključite. Nato pritisnite gumb za vklop in izklop na daljinskem upravljalniku, da vključite televizor. •...
Seite 65
All manuals and user guides at all-guides.com Osnovne operacije Izbira programov • Izbira CH+/CH- na televizorju ali daljinskem upravljalniku. Za povečanje številke kanala pritisnite CH+. Za zmanjšanje številke kanala pritisnite CH-. • Uporaba digitalnih tipk 0-9. Številko kanala lahko izberete s pritiskom na tipke od 0 do 9. (V načinih ATV, DTV.) •...
Seite 66
All manuals and user guides at all-guides.com Delovanje menija Postavitev menija Slika • Način slike Izberete lahko tip slike, ki najbolje ustreza vašim zahtevam gledanja. Proizvajalčev priporočeni način je standarden. Slika Način slike Standardno • Svetlost Svetlost Kontrast Nastavi osnovno raven signala na sliki. Ostrina •...
All manuals and user guides at all-guides.com Delovanje menija Konfiguriranje menija Sound • Sound Mode Nastavite lahko zvočni način, ki najbolje ustreza vašim osebnim željam. Sound • Treble Sound Mode Standardno Nastavite učinek visokih tonov. Poveča ali Treble zmanjša visoke tone. Nizki toni Ravnovesje •...
Seite 68
All manuals and user guides at all-guides.com Delovanje menija Prilagajanje menija Kanal • Tuner Type Preden začnete shranjevati kanale, ki so na voljo, morate določiti tip vira signala, ki je povezan s televizorjem (npr. antena ali Kanal Tuner Type Antenna kabelski sistem).
Seite 69
All manuals and user guides at all-guides.com Delovanje menija Strength: prikaz kakovosti trenutnega TV signala. - Analog Manual Scan: Za izbiro analognega ročnega pregleda pritisnite gumb▲/▼, nato pa za vstop v podmeni pritisnite tipko POTRDI. Analog Scan: Pritisnite gumb◄/►in izberite analogno pregledovanje: Channel to Save: Pritisnite gumb◄/►in izberite kanal.
Seite 70
All manuals and user guides at all-guides.com Delovanje menija Prilagajanje menija Lock System • Vnesite geslo Spodaj naštete postavke so na voljo le, če je vneseno geslo pravilno. Privzeto geslo je 0000. Če pozabite, kaj ste Lock System nastavili, prosimo, pokličite servisno središče. Vnesite geslo •...
Seite 71
All manuals and user guides at all-guides.com Delovanje menija Prilagajanje menija Nastavitev • Jezik OSD Izberite želeni jezik na zaslonu (On Screen Display). Nastavitev • Audio Languages (v načinu DTV) Jezik OSD Slovenian Izberite želeni avdio jezik. (Na voljo za Audio Languages Subtitle digitalne kanale, če je predvajanih več...
Seite 72
All manuals and user guides at all-guides.com Delovanje menija Replay: za ponovno predvajanje videoposnetka pritisnite rdeči gumb. Delete One: za brisanje videoposnetka pritisnite zeleni gumb. Delete All: za brisanje vseh videoposnetkov pritisnite rumeni gumb. Polno: za povečavo videoposnetka pritisnite modri gumb. Device List: Če je priključenih več...
Seite 73
All manuals and user guides at all-guides.com Delovanje menija • Podprti formati Kategorije Dekoder multimedij Končnice datotek Opombe Video Avdio dekodiranje dekodiranje MPEG-1 MPEG-2 MP MPEG-4 SP MPEG-4 ASP MPEG-4 XVID MPGE1/MPEG2/M *.avi DivX PEG4: H.264(AVC) Do 1080p @ 30F MPEG-1 plast 2 MP@raven 4 H.264: Do 1080p @...
Seite 74
All manuals and user guides at all-guides.com Delovanje menija 72x72 < Ločljivost Način osnovne osnovne črte < črte 7680x4320 *.jpg Photo Progresivni način *.jpeg Velikost Progresivni <=1280x1024 način Velikost datoteke <=10MB UTF-8 Velikost datoteke Text *.txt UNICODE <=1MB ASCII Opomba: Vsaka mapa podpira največ 500 datotek. OPOMBA: USB morda ne podpira ali pa ne podpira dobro dokumentov s posebnimi algoritmi.
Seite 75
All manuals and user guides at all-guides.com Delovanje menija Za dostop do hitrega menija pritisnite gumb KAZALO. Za označitev mape pritisnite ▲/▼, nato pa pritisnite gumb POTRDI. Za označitev datoteke pritisnite ▲/▼, nato pa pritisnite gumb za predvajanje. Pritisnite za zaustavitev predvajanja datotek. Za vrnitev na predhodni meni pritisnite gumb IZHOD.
Seite 76
All manuals and user guides at all-guides.com Pomembni edinstveni gumbi PROGRAM GUIDE (v načinu DTV) Za vstop v PROGRAMSKI VODIČ pritisnite gumb EPG. 01 Jan 2007 14:00:04 PROGRAM GUIDE 01 Jan 2007 14:00-01 Jan 2007 17:00 C/B 001 RED+MARKER 14:00 C/B 002 C/B 17:00 C/B 003 CROSS HATCH...
Seite 77
All manuals and user guides at all-guides.com Teletekst Uporaba lastnosti teletekst • Prikaz teleteksta 1. Izberite TV postajo s signalom telektesta. 2. Pritisnite gumb za vnos načina teletekst. 3. Pritisnite gumb ponovno in vstopite v način Mix. Ta funkcija omogoča, da vsilite stran teleteksta čez TV program.
All manuals and user guides at all-guides.com Vodič za odpravljanje napak Odpravljanje napak Preden stopite v stik s serviserjem, izvedite spodaj navedena preverjanja. Če težava še kar vztraja, odklopite TV od vtičnice in pokličite serviserja. TEŽAVA MOŽNA REŠITEV - Preverite ali je napajalni vtič priključen na stensko vtičnico.
Seite 79
All manuals and user guides at all-guides.com Vodič za odpravljanje napak OPOMBA: Težava v načinu VGA (samo uporabljeni način VGA). TEŽAVA MOŽNA REŠITEV - Prilagodite ločljivost, vodoravno frekvenco ali navpično frekvenco. Signal je izven dosega. - Preverite ali je signalni kabel povezan ali zrahljan. - Preverite vir vhodnega signala.
All manuals and user guides at all-guides.com Tehnični podatki Tehnični podatki Model LED28C2200H velikost zaslona 27.5”(70cm) razmerje slike 16:9 WXGA resolucija 1366×768 Svetlost (cd/㎡) Največja barve 16.7M kontrastno razmerje 2400:1 odzivni čas 6.5ms Video sistem PAL/SECAM Avdio sistem B/G,D/K,I,L/L’ RF(75Ω)
Seite 81
All manuals and user guides at all-guides.com Inhaltsverzeichnis Warnung………………………………………………….…………………………1 Sicherheitshinweise……………………………………………………………….3 Einleitung…….………………………………………………………………………5 Fernbedienung………..…………………………………………………………5 Einsetzen der Batterien in die Fernbedienung………………………………...5 Austauschen der Batterien………………………………………………………5 Anschluss und Einstellungen…………………………………………………...6 Kabelinstallation………………………………………………………………….6 Fernbedienung……………………………………………………………………...7 Grundlegende Bedienung………………………………………………………..9 KURZANLEITUNG…………………………………………………………...9 Ein- und Ausschalten des TV-Geräts…………………………………………..9 Programmauswahl…………………………………………………………….9 Lautstärkenregelung…………………………………………………………...10 Wechseln der Eingangsquelle………………………………………………..10 Navigation durch Menüs……………………………………………………...10 Menüeinstellungen……………………………………………………………….11 Konfigurierung des Bild..…………………………………………………..11 Konfigurierung des Sound……………………………………………………..12...
All manuals and user guides at all-guides.com Warnung VORSICHT! RISIKO EINES UNFALLES DURCH ELEKTRISCHEN STROM NICHT ÖFFNEN WARNUNG: STROMSCHLAGGEFAHR! GEHÄUSE NICHT ÖFFNEN. REPARATUREN NUR VON FACHLEUTEN DURCHFÜHREN LASSEN. Ein Dreieck mit Blitz dient als Warnung vor nicht isolierter gefährlicher Spannung im Gehäuse des Geräts, die eine Stromschlaggefahr für Menschen darstellen kann Ein Dreieck mit Ausrufezeichen weist auf wichtige Anweisungen für Betrieb und Wartung in der dem Gerät beigelegten Bedienungsanleitung...
Seite 83
All manuals and user guides at all-guides.com Warnung WARNUNG Brand- und Stromschlaggefahr! Setzen Sie dieses Gerät nicht Regen oder Feuchtigkeit aus. Decken Sie die Lüftungsöffnungen nicht mit Gegenständen wie Zeitungen, Tischdecken, Vorhängen etc. ab. Setzen Sie das Gerät nicht Tropf- oder Spritzwasser aus. Stellen Sie keine mit Flüssigkeiten gefüllte Behälter, z.
All manuals and user guides at all-guides.com Sicherheitshinweise WICHTIGE SICHERHEITSHINWEISE 1. Lesen Sie diese 7. Halten Sie die Lüftungsöffnungen frei. Sicherheitshinweise. Installieren Sie das Gerät gemäß den 2. Bewahren Sie diese Anleitungen des Herstellers. Sicherheitshinweise gut auf. 3. Beachten Sie alle Warnungen. 4.
All manuals and user guides at all-guides.com Sicherheitshinweise 10. Verlegen Sie das Stromkabel so, 13. Bei Gewitter oder längerem dass niemand darüber stolpern oder Nichtgebrauch des Gerätes, sollten darauf treten kann. Schützen Sie Sie das Netzkabel des Gerätes von das Kabel gegen Beschädigung, der Steckdose trennen.
All manuals and user guides at all-guides.com Einleitung Fernbedienung Wenn Sie die Fernbedienung benutzen, richten Sie die Fernbedienung auf den Infrarotsensor des Fernsehers. Wenn ein Gegenstand zwischen der Fernbedienung und dem Infrarotsensor steht, funktioniert die Fernbedienung eventuell nicht. Richten Sie die Fernbedienung auf den Infrarotsensor des Fernsehers. Wenn Sie den Fernseher in hellen Räumen nutzen, funktioniert der Infrarotsensor eventuell nicht richtig.
All manuals and user guides at all-guides.com Anschluss und Einstellungen Kabelinstallation Lesen Sie bitte die entsprechenden Inhalte unter „Hinweise zu Instandhaltung und Sicherheit“, bevor Sie das Gerät installieren und verwenden. 1. Nehmen Sie das TV-Gerät aus der Verpackung, und legen Sie es auf einen flachen und gut durchlüfteten Ort.
All manuals and user guides at all-guides.com Fernbedienung Es gibt folgende Tasten auf der Originalfernbedienung: : POWER; schalten Sie hiermit das TV-Gerät ein oder aus. : Drücken Sie diese Taste, um den Ton zu deaktivieren oder wieder zu aktivieren. STILL: Drücken Sie diese Taste, um das Bild anzuhalten.
Seite 89
All manuals and user guides at all-guides.com Fernbedienung 16. CH+/CH-: Drücken Sie diese Taste, um Kanäle in ansteigender oder absteigender Reihenfolge auszuwählen. 17. LIST: Drücken Sie diese Taste, um die Kanalliste aufzurufen. Drücken Sie erneut, um die Liste auszublenden. 18. ZIFFERNTASTEN: Wählen Sie Kanäle aus oder geben Sie ein Kennwort ein.
All manuals and user guides at all-guides.com Grundlegende Bedienung KURZANLEITUNG • Verbindung 1. Netz- und Antennenanschluss. Falls der Fernseher einen Ein-Aus-Schalter hat, schalten Sie ihn zuerst ein. Drücken Sie die Ein/Aus-Taste ( ) auf der Fernbedienung, um das TV-Gerät einzuschalten. •...
All manuals and user guides at all-guides.com Grundlegende Bedienung • Verwendung der Digitaltasten 0-9. Sie können die Nummer eines Kanals durch Drücken auf eine der Tasten von 0 bis 9 auswählen. (im ATV- und DTV-Modus) • Beispiel Zur Auswahl eines einstelligen Kanals (z. B. 5): Drücken Sie die Taste 5. Zur Auswahl eines zweistelligen Kanals (z.
All manuals and user guides at all-guides.com Menüeinstellungen Konfigurierung des Bild • Bildmodus Sie können die Art von Bild auswählen, die Ihre Anzeigebedürfnisse am besten erfüllt. Bild Der empfohlene Modus des Herstellers ist Bildmodus Standard Standard. Helligkeit Kontrast • Helligkeit Schärfe Sättigung Hiermit passen Sie die Grundstufe des...
Seite 93
All manuals and user guides at all-guides.com Menüeinstellungen Konfigurierung des Sound • Sound Mode Sie können einen Tonmodus ganz nach Ihren Bedürfnissen auswählen. • Höhen Hiermit können Sie den Sopran-Effekt anpassen. Dabei werden hohe Töne abgeschwächt oder verstärkt. • Bass Hiermit können Sie den Bass-Effekt anpassen.
All manuals and user guides at all-guides.com Menüeinstellungen Konfigurierung des Kanal • Tuner Type Bevor Ihr TV-Gerät verfügbare Kanäle speichern kann, müssen Sie den Typ d Signalquelle angeben, die mit dem Kanal TV-Gerät verbunden ist (z. B. Antenne Tuner Type Antenne oder Kabelsystem).
Seite 95
All manuals and user guides at all-guides.com Menüeinstellungen 16QAM, 32QAM, 64QAM, 128QAM, 256QAM. starten: Drücken Sie die ENTER-Taste, um mit der Kanalsuche zu beginnen. Stärke: Zeigt die Stärke des aktuellen TV-Signals an. - Analog Manual Scan: Drücken Sie die ▲/▼-Tasten, um die analoge manuelle Suche auszuwählen, und drücken Sie anschließend die ENTER-Taste, um zum Untermenü...
All manuals and user guides at all-guides.com Menüeinstellungen Konfigurierung des Lock System • Kennwort eingeben Die folgenden Elemente stehen nur zur Verfügung, wenn das Kennwort richtig eingegeben wurde. Das Standardkennwort ist 0000. Wenn Sie Ihr eingestelltes Kennwort vergessen haben sollten, wenden Sie sich bitte an den Kundendienst. •...
All manuals and user guides at all-guides.com Menüeinstellungen - Standard DTV programm Nur verfügbar, wenn die Standardquelle DTV eingestellt. - Standard ATV programm Nur verfügbar, wenn die Standardquelle ATV eingestellt. - Backup auf USB Backup-Daten auf USB. - Wiederherstellen von USB Wiederherstellung von Daten von USB.
Seite 98
All manuals and user guides at all-guides.com Menüeinstellungen • Zeiteinstellungen Drücken Sie die ▲/▼-Tasten, um Zeiteinstellungen auszuwählen, und drücken Sie anschließend die ENTER-Taste, um zum Untermenü zu gelangen. OSD-Zeit: Wählen Sie die Anzeigedauer des Bildschirmmenüs aus. Schlafen Timer: Wählen Sie die Dauer aus, nach der das TV-Gerät automatisch in den Standby-Modus wechselt.
Seite 99
All manuals and user guides at all-guides.com Menüeinstellungen • Ersteinrichtung In dieser Anleitung erfahren Sie, wie Sie Ihr TV-Gerät einrichten können. • Rücksetzen Setzen Sie hiermit die Systemeinstellungen auf den Werkszustand zurück. Verwendung des Medien-Modus • So starten/beenden Sie Medien-Modus. 1.
Seite 100
All manuals and user guides at all-guides.com Menüeinstellungen MPEG-1 MPEG-2 MP MPEG-4 SP MPEG-4 ASP MKV (*.mkv) MPEG-4 XVID H.264(AVC) MP @ Level 4 H.264(AVC) HP @ Level 4 H.264(AVC) MP @ Level 4 *.flv H.264(AVC) HP @ Level 4 Bitrate: bis zu MPEG-1 Layer 3 320Kbit/s...
Seite 101
All manuals and user guides at all-guides.com Menüeinstellungen Foto Drücken Sie die ◄/►-Tasten, um Foto im Hauptmenü auszuwählen, und drücken Sie anschließend die ENTER-Taste, um das Menü zu öffnen. Drücken Sie die ◄/►-Tasten, um den Datenträger auszuwählen, den Sie sich anschauen möchten, und drücken Sie anschließend die ENTER-Taste zum Öffnen.
All manuals and user guides at all-guides.com Wichtige Einzeltasten PROGRAM GUIDE (im DTV-Modus) Drücken Sie die EPG-Taste, um zum PROGRAM GUIDE -Modus zu wechseln. 01 Jan 2007 14:00:04 PROGRAM GUIDE 01 Jan 2007 14:00-01 Jan 2007 17:00 C/B 001 RED+MARKER 14:00 C/B 002 C/B 17:00 C/B...
All manuals and user guides at all-guides.com Videotext Videotext-Merkmale anwenden • Videotext anzeigen 1. Wählen Sie einen Fernsehsender mit Videotextsignal aus. 2. Drücken Sie die Taste , um den Videotext anzuzeigen. 3. Drücken Sie die Taste zweimal, um den Videotext und das Fernsehbild gleichzeitig anzuzeigen.
All manuals and user guides at all-guides.com Fehlerbehebungsanleitung Fehlerbehebung Bevor Sie sich an den Kundendienst oder an Fachleute wenden, überprüfen Sie folgende Checkliste. Kann der Fehler nicht behoben werden sollte, so trennen Sie den Fernseher vom Stromkreis und suchen Sie professionelle Hilfe auf. PROBLEM MÖGLICHE LÖSUNG - Überprüfen, ob der Hauptstecker an eine Steckdose...
Seite 105
All manuals and user guides at all-guides.com Fehlerbehebungsanleitung Hinweis: Problem im VGA-Modus (nur VGA-Modus verwendet). PROBLEM MÖGLICHE LÖSUNG - Auflösung, horizontale Frequenz oder vertikale Frequenz anpassen. Signal ist außerhalb des - Überprüfen, ob das Signalkabel angeschlossen Frequenzbereichs. oder lose ist. - Signalquelle überprüfen.
All manuals and user guides at all-guides.com Spe ifikation Spez ifik ation LED28C2200H Modell 27.5”(70cm) Bildschirmdiagonale Bildformat 16:9 Auflösung des Bildschirms 1366×768 Helligkeit (cd/㎡) Farbenanzahl 16.7M 2400: 1 Kontrastverhältnis 6.5ms Reaktionsdauer (ms) Videosystem PAL/SECAM Audiosystem B/G,D/K,I,L/L’ RF(75Ω) AV-Eingang Komponenten-YPbPr SCART...
Seite 107
All manuals and user guides at all-guides.com Table des matières Avertissement…………………………………………….…………………………1 Consignes de sécurité…………………………………………………………….3 Démarrage………………………………………………………………………5 Utiliser la télécommande…………………………………………………………5 Installer les piles dans la télécommande……………………………………...5 Remplacer les piles………………………………………………………………5 Connexion et mise en place..…….……………………………………………...6 Installation des câbles………………………………………………………….6 Télécommande……………………………………………………………………...7 Fonctionnement de base…………………………………………………………..9 GUIDE DE DÉMARRAGE RAPIDE…………………………………………...9 Allumer et éteindre la télévision………………………………………………..9 Sélection des programmes…………………………………………………….9 Réglage du volume……………………………………………………………...10...
Seite 108
All manuals and user guides at all-guides.com Avertissement ATTENTION Risque de choc electrique Ne pas ouvrir Avertissement: AFIN DE REDUIRE LES RISQUES DE CHOC ELECTRIQUE, N’OUVREZ JAMAIS LE CORPS (OU LE DOS) DE L’APPAREIL. AUCUNE PIECE INTERNE NE PEUT ETRE REPAREE PAR L’UTILISATEUR. S’ADRESSER A UN TECHNICIEN DE SERVICE QUALIFIE.
Seite 109
All manuals and user guides at all-guides.com Avertissement AVERTISSEMENT Afin de réduire les risques d’incendie ou de choc électrique, n’exposez pas cet appareil ni à la pluie, ni à l’humidité. L’appareil ne doit pas être exposé à des aspersions ou d’éclaboussures, et aucun objet contenant des liquides, tels que les vases, ne doit être posé...
All manuals and user guides at all-guides.com Consignes de sécurité CONSIGNES DE SECURITE IMPORTANTE 1. Lisez ces instructions. 7. Ne pas obstruer les orifices d’aération. 2. Conservez ces instructions. Installez l’appareil en respectant les 3. Tenez compte de tous les instructions du fabricant.
Seite 111
All manuals and user guides at all-guides.com Consignes de sécurité 10. Protégez le cordon d’alimentation 13. Débranchez l’appareil en cas contre les piétinements ou les d’orage ou si vous ne l’utilisez pas coincements tout particulièrement pendant une période prolongée. au niveau de la prise secteur et du point de sortie de l’appareil.
Seite 112
All manuals and user guides at all-guides.com Démarrage Utiliser la télécommande Pour utiliser la télécommande, dirigez-la vers le capteur de télécommande du téléviseur. S’il y a un objet entre la télécommande et le capteur de télécommande sur l’appareil, l’appareil pourrait ne pas se mettre en service. Dirigez la télécommande vers le CAPTEUR DE TELECOMMANDE sur le téléviseur.
All manuals and user guides at all-guides.com Connexion et mise en place Installation des câbles Veuillez lire avec attention les informations pertinentes de la « Notice d'entretien et de sécurité » afin d'installer et d'utiliser l'appareil. 1. Veuillez sortir la télévision de son emballage, et la placer dans un endroit plat et ventilé.
Seite 114
All manuals and user guides at all-guides.com Télécommande Les boutons de la télécommande originale sont les suivants : : alimentation, allume ou éteint le téléviseur. : coupe ou réactive le son. STILL : pressez ce bouton pour geler l'image. : maintient l'affichage de la page télétexte, pressez à...
Seite 115
All manuals and user guides at all-guides.com Télécommande 15. VOL+/VOL- : pressez ces boutons afin d'ajuster le volume. 16. CH+/CH- : sélection des chaînes, par ordre ascendant ou descendant. 17. LIST : affiche la liste des chaînes. Pressez-le à nouveau pour la quitter. 18.
All manuals and user guides at all-guides.com Fonctionnement de base GUIDE DE DÉMARRAGE RAPIDE • Connexion 1. Connexion des câbles secteur et antenne. Si le téléviseur à un interrupteur, allumez-le d’abord. Pressez le bouton alimentation de la télécommande pour allumer la télévision. •...
Seite 117
All manuals and user guides at all-guides.com Fonctionnement de base • Utilisation des boutons chiffrés 0- 9. Vous pouvez sélectionner la chaîne souhaitée en pressant les boutons correspondants, de 0 à 9 (en mode ATV, DTV). • Exemple Pour sélectionner un numéro de chaîne à 1 chiffre (par ex. 5) : pressez 5. Pour sélectionner un numéro de chaîne à...
All manuals and user guides at all-guides.com Utilisation du menu Configuration du menu Image • Mode Image Sélectionnez le type d'image qui convient le mieux aux conditions dans lesquelles vous regardez la télévision. Image Le mode recommandé par le fabricant est Mode Image Standard Standard.
Seite 119
All manuals and user guides at all-guides.com Utilisation du menu Configuration du menu Sound • Sound Mode Vous permet de sélectionner un mode sonore qui convient à vos préférences. • Aigus Sound Ajustement des aigus: augmente ou Sound Mode Standard réduit les sons aigus.
Seite 120
All manuals and user guides at all-guides.com Utilisation du menu Configuration du menu Chaîne • Tuner Type Avant que votre téléviseur puisse commencer à mémoriser les chaînes disponibles, vous devez spécifier le type de signal source connecté à la télévision Chaîne (c'est-à-dire antenne ou système câblé).
Seite 121
All manuals and user guides at all-guides.com Utilisation du menu Analog Manual Scan : pressez les boutons ▲/▼ pour sélectionner le balayage manuel analogique (Analog Manual Scan), puis pressez le bouton ENTER pour entrer dans le sous-menu. analogique de numerisation Balyage : pressez les boutons ◄/►...
All manuals and user guides at all-guides.com Utilisation du menu • Activer Les options de verrouillage des chaînes, de contrôle parental et de verrouillage clavier sont disponibles lorsque Enable est réglé sur Activer. • Verrouillages chaîne Pressez ▲/▼ pour sélectionner la chaîne que vous souhaitez verrouiller, puis pressez sur ENTER pour activer le verrouillage.
All manuals and user guides at all-guides.com Utilisation du menu Configuration du menu Configuration • Langue OSD Sélectionnez la langue qui vous c onvient pour l'affichage à l'écran. • langues audio (en mode DTV) Configuration Sélectionnez la langue qui vous c onvient Langue OSD Français...
Seite 124
All manuals and user guides at all-guides.com Utilisation du menu • Paramètres PVR (en mode DTV) Pressez les boutons ▲/▼ pour sélectionner les réglages PVR, puis pressez le bouton ENTER pour entrer dans le sous-menu. Une vérification de l'USB s'ensuivra. Gestionnaire de fichiers: affichage de la liste des fichiers enregistrés.
Seite 125
All manuals and user guides at all-guides.com Utilisation du menu MÉDIA Utilisation du mode MÉDIA • Passer en mode USB/quitter le mode 1. Connectez un périphérique USB. 2. Pressez le bouton SOURCE pour afficher le menu principal. Utilisez ▲/▼ pour placer M DIA en surbrillance, puis le bouton ENTER pour accéder au mode É...
Seite 126
All manuals and user guides at all-guides.com Utilisation du menu Débit : jusqu'à MPEG-1 Layer 3 320 Kbps Taux *.mp3 d'échantillonage : MPEG-2 Layer 3 32 KHz, 44.1 KHz, musique 48 KHz AAC (*.aac,*m4a) HE-AAC V1 HE-AAC V2 LPCM *.wav ADPCM 72x72 <...
Seite 127
All manuals and user guides at all-guides.com Utilisation du menu le disque que vous souhaitez visualiser, puis pressez le bouton ENTER pour entrer. Pressez les boutons CH+/- pour changer de page. Pressez le bouton INDEX pour accéder au menu rapide. Pressez les boutons fléchés pour placer le dossier souhaité...
All manuals and user guides at all-guides.com Touches importantes GUIDE DE PROGRAMMES (en mode DTV) Pressez le bouton EPG pour entrer dans le menu GUIDE DU PROGRAMME. 01 Jan 2007 14:00:04 GUIDE DE PROGRAMMES 01 Jan 2007 14:00-01 Jan 2007 17:00 C/B 001 RED+MARKER 14:00 C/B 002 C/B...
Seite 129
All manuals and user guides at all-guides.com Télétexte Utiliser la fonction de télétexte • Afficher le télétexte 1. Sélectionnez une chaîne TV avec un signal télétexte. 2. Appuyez sur le bouton pour entrer en mode télétexte. 3. Appuyez sur le bouton 2 fois pour entrer en mode MIX.
All manuals and user guides at all-guides.com Guide de dépannage Dépannage Avant de contacter le support technique, effectuez les vérifications de base suivantes. Si le problème persiste, débrancher le téléviseur et contacter le réparateur. PROBLEME SOLUTION POSSIBLE - Vérifiez que la prise secteur soit bien branchée à une prise secteur.
All manuals and user guides at all-guides.com Guide de dépannage NOTE: En cas de mode VGA (seulement le mode VGA appliqué) PROBLEME SOLUTION POSSIBLE - Réglez la résolution, la fréquence horizontale ou la fréquence verticale. Le signal est hors plage. - Vérifiez que le câble est bien branché.
Seite 132
All manuals and user guides at all-guides.com Spécifications Spécifications LED28C2200H Modèle 27.5”(70cm) Taille d'écran Format image 16:9 Résolution de la dalle 1366×768 Luminosité (cd/㎡) Couleur 16.7M 2400: 1 Contraste 6.5ms Temps de réponse (ms) Système vidéo PAL/SECAM Système audio B/G,D/K,I,L/L’...
Seite 133
All manuals and user guides at all-guides.com Contenuto ATTENZIONE…………………………………………….…………………………1 ISTRUZIONI DI SICUREZZA……………………………………………………….3 Iniziare………………………………………………………………………………5 Utilizzare il controllo remoto……………………………………………………5 Installare le batterie all`interno del compartimento…………………………...5 Sostituzione delle batterie………………………………………………………5 Connessione e setup……………………………………………………………...6 Installazione cavi………………………………………………………………….6 Controllo remoto…………………………………………………………………...7 Caratteristiche di base………………………………………………………..9 GUIDA DI AVVIO RAPIDO………………………………………………..…..9 Accensione e spegnimento della TV………………………………………..9 Selezione dei programmi………………………………………………...……10 Regolazione del volume……………………………………………………...10...
Seite 134
All manuals and user guides at all-guides.com ATTENZIONE ATTENZIONE RISCHIO DI SCOSSA ELETTRICA NON APRIRE ATTENZIONE: AL FINE DI RIDURRE IL RISCHIO DI SCOSSA ELETTRICA NON APRIRE IL COPERCHIO (NE LA PARTE POSTERIORE). DELL`UNITA`. NESSUNA COMPONENTE UTILE ALL`UTENTE E` CONTENUTA ALL`INTERNO DEL PRODOTTO.
Seite 135
All manuals and user guides at all-guides.com ATTENZIONE ATTENZIONE Al fine di ridurre il rischio di esposizione a scossa elettrica, non esporre questo prodotto alla pioggia oppure all`umidita`. La ventilazione non deve essere impedita coprendo le prese d`aria con oggetti come giornali, tende, tappeti, ecc…...
All manuals and user guides at all-guides.com ISTRUZIONI DI SICUREZZA IMPORTANTI ISTRUZIONI DI SICUREZZA 1. Leggere le istruzioni contenute in 7. Non ostruire le prese d`aria. questo manuale. Procedere con l`installazione in 2. Preservare queste istruzioni. accordo alle istruzioni contenute in 3.
Seite 137
All manuals and user guides at all-guides.com ISTRUZIONI DI SICUREZZA 10. Posizionare il cavo elettrico in aree 13. Scollegare il prodotto durante dove non rappresenti intralcio al tempeste con filmini oppure quando passaggio, evitare di pizzicarlo a non utilizzato per lunghi periodi di prese, ricettacoli ed uscite elettriche.
Seite 138
All manuals and user guides at all-guides.com Iniziare Utilizzare il controllo remoto Quando viene utilizzato il controllo remoto, puntarlo direttamente verso il sensore infrarosso della televisione. Assicurarsi che nessun oggetto sia presente nell`aria d`uso del prodotto. Puntare il controllo remoto verso il SENSORE INFRAROSSO della TV. Quando viene utilizzato il controllo remoto in un`area estremamente luminosa, il CONTROLLO REMOTO potrebbe non funzionare.
All manuals and user guides at all-guides.com Connessione e setup Installazione cavi Leggere attentamente i contenuti rilevanti in “Avvertenze per la manutenzione e la sicurezza” prima dell’installazione e dell’uso. 1. Estrarre il televisore dall’imballaggio e collocarlo in una postazione piatta e ventilata. NOTA: Quando il televisore, il computer o altre apparecchiature vengono collegate o scollegate dalla presa di corrente, è...
All manuals and user guides at all-guides.com Controllo remoto I seguenti sono i pulsanti del telecomando originale: : alimentazione, accende o spegne il televisore. : premere per disattivare o attivare l’audio. STILL: premere per fermare l’immagine. : consente di tenere sullo schermo la pagina del televideo, premere di nuovo per rilasciare.
Seite 141
All manuals and user guides at all-guides.com Controllo remoto 14. INDEX: premere per accedere al menu modalità MEDIA) rapido. (Nella Premere per accedere alle Impostazioni PVR (Nella modalità DTV). 15. VOL+/VOL-: premere per regolare il livello del volume. 16. CH+/CH-: premere per selezionare i canali in ordine crescente o decrescente.
All manuals and user guides at all-guides.com Caratteristiche di base GUIDA DI AVVIO RAPIDO • Collegamento 1. Collegare la spina elettrica e l’antenna. Se la TV ha un interruttore, prima accenderlo. Premere il pulsante di alimentazione sul telecomando per accendere la TV. •...
Seite 143
All manuals and user guides at all-guides.com Caratteristiche di base Selezione dei programmi • Usare CH+/CH- sul pannello del televisore o sul telecomando. Premere CH+ per aumentare il numero del canale. Premere CH – per diminuire il numero del canale. •...
All manuals and user guides at all-guides.com Utilizzo del menu Configurazione del menu immagine • Modalit immagine à È possibile selezionare il tipo di i mmagine che meglio corrisponde alle esigenze di visualizzazione personali. immagine La modalità raccomandata dal produttore Modalità...
Seite 145
All manuals and user guides at all-guides.com Utilizzo del menu Configurazione del menu Suono • Modalità suono È possibile selezionare una modalità audio che si adatti alle preferenze personali. Suono Modalità suono standard • Alti Alti Regola gli alti. Aumenta o diminuisce i bassi suoni alti.
Seite 146
All manuals and user guides at all-guides.com Utilizzo del menu Configurazione del menu canale • Tuner Type Prima che il televisore possa cominciare a memorizzare i canali disponibili, è necessario specificare il tipo di sorgente del segnale collegato al televisore (ad canale Tuner Type antenna...
Seite 147
All manuals and user guides at all-guides.com Utilizzo del menu forza: mostra la qualità del segnale TV corrente. - Scansione manuale analogica: premere il pulsante ▲/▼ per selezionare la Scansione analogica manuale, quindi premere il pulsante ENTER per accedere al sottomenu.
All manuals and user guides at all-guides.com Utilizzo del menu Configurazione del menu Blocco sistema • Immettere la password Le voci seguenti sono disponibili solo se la password inserita è corretta. La password predefinita è 0000. Contattare il centro assistenza nel caso Blocco sistema Immettere la password in cui la password impostata venga...
Seite 149
All manuals and user guides at all-guides.com Utilizzo del menu Disponibile solamente quando è impostata come sorgente di default l'ATV. Backup su USB Salvataggio dati su USB. Ripristino da USB Ripristina dati da USB. ricordare Ripristina le impostazioni di default del Modo Hotel. Configurazione del menu delle Impostazione •...
Seite 150
All manuals and user guides at all-guides.com Utilizzo del menu ENTER per accedere al sottomenu. Impostare Auto-sincronizzazione su spento, è ora possibile impostare l’orario manualmente. Nota: in caso di guasti elettrici, l’impostazione dell’orologio verrà persa. • Impostazioni PVR (nella modalità DTV) Premere il pulsante ▲/▼...
Seite 151
All manuals and user guides at all-guides.com Utilizzo del menu MEDIA Utilizzo della modalità MEDIA • Per accedere/uscire dalla modalità 1. Collegare un dispositivo USB. 2. Premere il pulsante SOURCE per visualizzare il menu principale. Usare ▲/▼ per selezionare l’unità MEDIA e premere ENTER per accedere alla modalità MEDIA. 3.
Seite 152
All manuals and user guides at all-guides.com Utilizzo del menu Frequenza MPEG-2 Layer 3 campione: 32KHz, 44.1KHz, 48KHz AAC(*.aac,*m4a) HE-AAC V1 HE-AAC V2 LPCM *.wav ADPCM 72x72 < Risoluzione base < Modalità base 7680x4320 *.jpg Dimensione foto *.jpeg modalità Modalità progressiva progressiva <=1280x1024...
Seite 153
All manuals and user guides at all-guides.com Utilizzo del menu foto Premere il pulsante ◄/► per selezionare Fotografia nel menu principale, quindi premere ENTER per accedere. Premere il pulsante◄/► per selezionare il disco che si desidera guardare, quindi premere ENTER per accedere. Premere il pulsante CH+/- per cambiare pagina Premere il pulsante INDEX per accedere al menu rapido.
All manuals and user guides at all-guides.com Importanti funzioni dei pulsanti GUIDA PROGRAMMI (nella modalità DTV) Premere il pulsante EPG per accedere al menu GUIDA AI PROGRAMMI. 01 Jan 2007 14:00:04 GUIDA PROGRAMMI 01 Jan 2007 14:00-01 Jan 2007 17:00 C/B 001 RED+MARKER 14:00 C/B 002 C/B...
Seite 155
All manuals and user guides at all-guides.com Teletext Utilizzare la funzione di teletext • Visualizzare il teletext 1. Selezionare una stazione TV con segnale teletext. 2. Premere il pulsante per entrare in modalita` teletext. 3. Premere due volte il pulsante per entrare in modalita` Mix, questa funzione permette di superimporre la pagina di teletext al programma TV.
All manuals and user guides at all-guides.com Guida Ricerca e Soluzione problemi Ricerca e Soluzione dei problemi Prima di rivolgersi al tecnico di servizio, prego eseguire I seguenti controlli. Se il problema persiste, disconnettere il prodotto e rivolgersi al centro di riparazione. PROBLEMA POSSIBILE SOLUZIONE - Controllare che la spina sia stata connessa alla presa.
Seite 157
All manuals and user guides at all-guides.com Guida Ricerca e Soluzione problemi NOTA: Se` e` presente un problema in modalita` VGA (solamenteVGA applicata). PROBLEMA POSSIBILE SOLUZIONE - Regolare la risoluzione, la frequenza orizzontale oppure verticale. Segnale fuori portata - Controllare che il cavo segnale sia connesso oppure no.
All manuals and user guides at all-guides.com SPECIFICHE TECNICHE SPECIFICHE TECNICHE Modello LED28C2200H 27.5”(70cm) Dimensioni schermo Formato dell’immagine 16:9 Risoluzione del pannello 1366×768 Luminosità(cd/㎡) Colore massimo 16.7M 2400: 1 Rapporto contrasto 6.5ms Tempo di risposta Sistema video PAL/SECAM Sistema audio B/G,D/K,I,L/L’...
Seite 159
All manuals and user guides at all-guides.com...
