Quick Start Guide
DN100
Active DI Box with Extended Dynamic Range

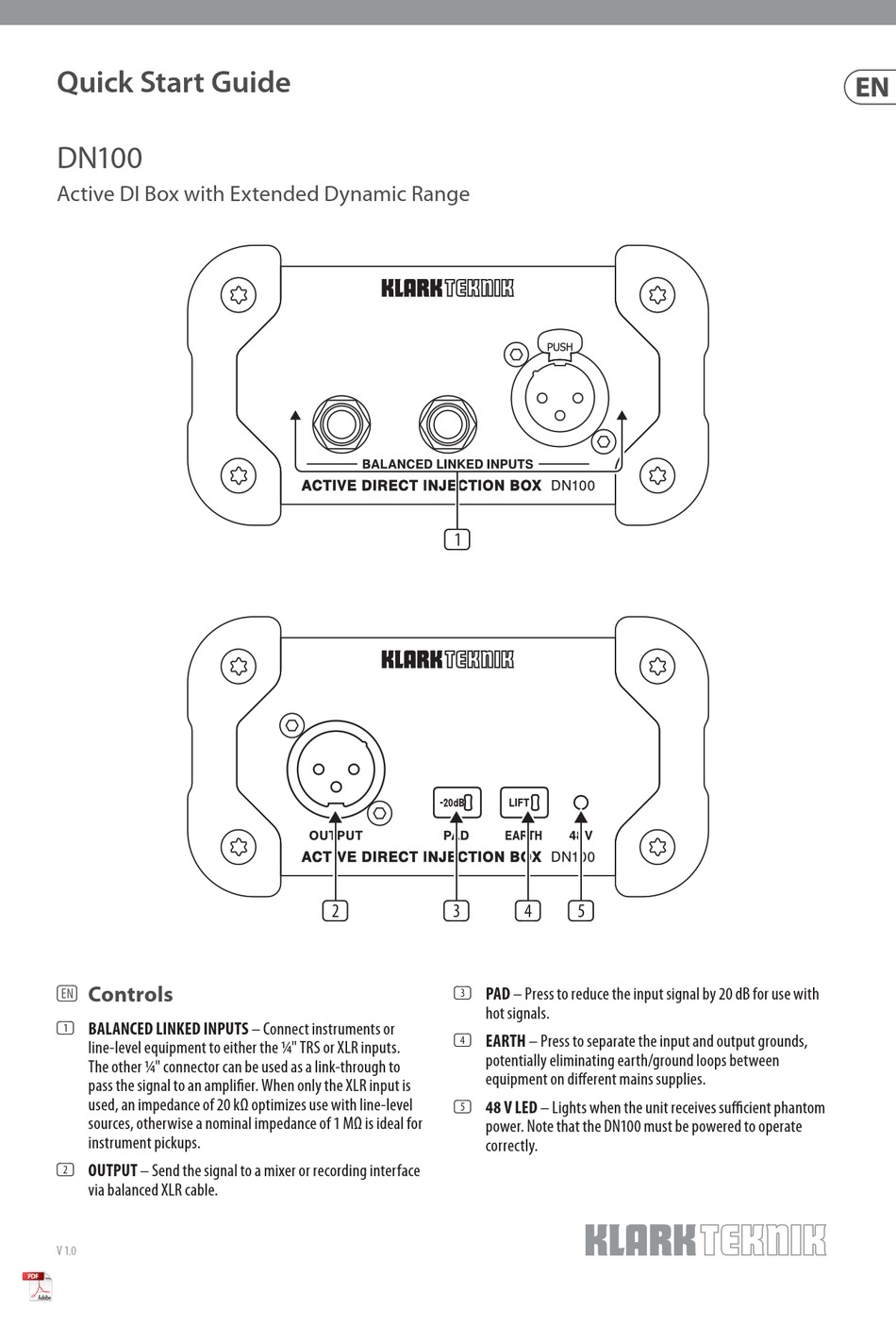

(EN) Controls
(1) BALANCED LINKED INPUTS – Connect instruments or
line-level equipment to either the ¼" TRS or XLR inputs.
The other ¼" connector can be used as a link-through to
pass the signal to an amplifier. When only the XLR input is
used, an impedance of 20 kΩ optimizes use with line-level
sources, otherwise a nominal impedance of 1 MΩ is ideal for
instrument pickups.
(2) OUTPUT – Send the signal to a mixer or recording interface
via balanced XLR cable.
V 1.0
(1)
(2)
(3)
(3) PAD – Press to reduce the input signal by 20 dB for use with
hot signals.
(4) EARTH – Press to separate the input and output grounds,
potentially eliminating earth/ground loops between
equipment on different mains supplies.
(5) 48 V LED – Lights when the unit receives sufficient phantom
power. Note that the DN100 must be powered to operate
correctly.
(4) (5)
