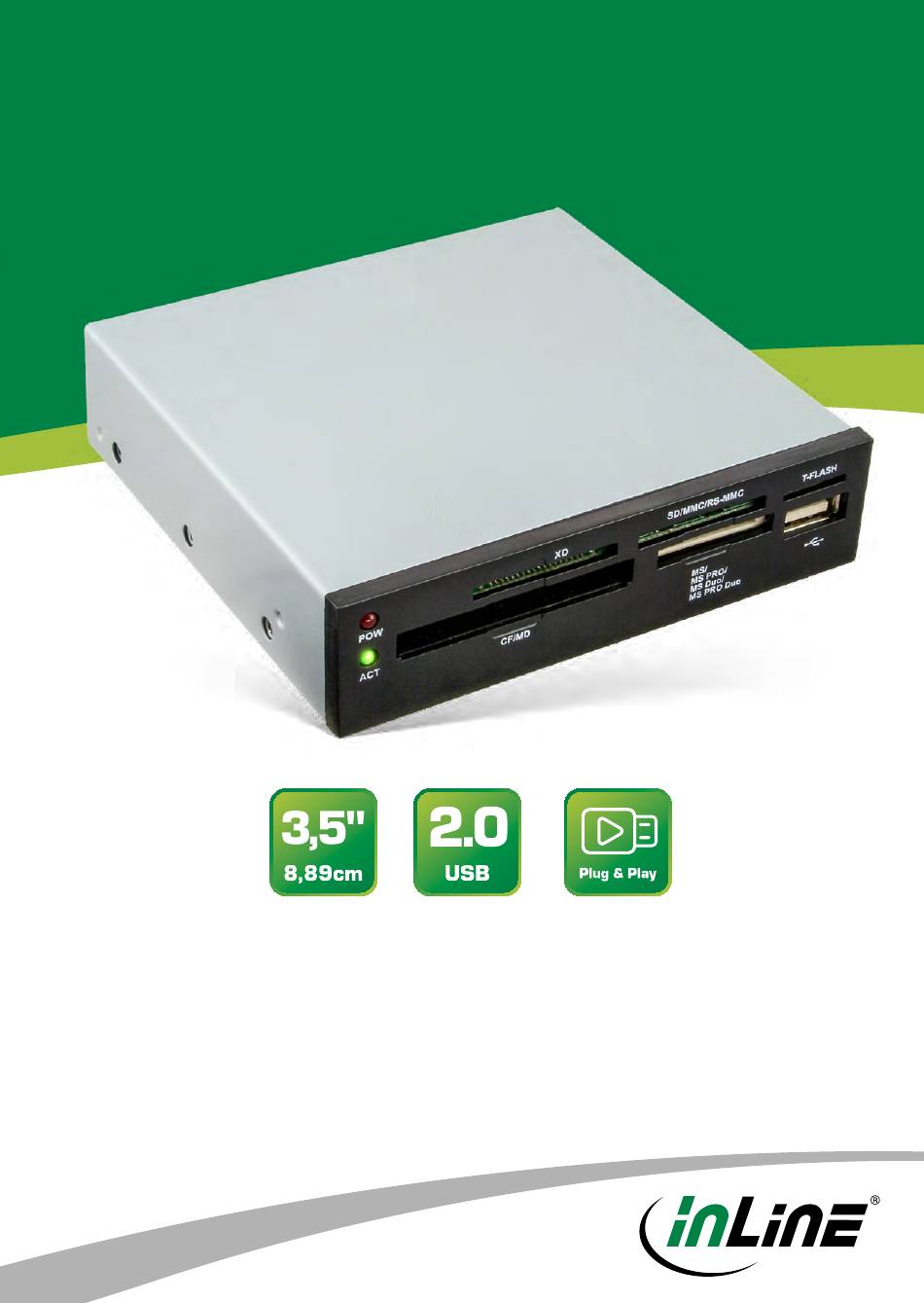

USB CARD READER ALL IN ONE CARD READER, USB 2.0, ALL IN 1, FÜR 8,89CM (3,5“), MIT 2 BLENDEN CARD READER, USB 2.0, ALL IN 1, FOR 3,5“, WITH 2 FRONT PANELS Art.-Nr.: 76635I...
ALLGEMEINES Bitte lesen Sie diese Bedienungsanleitung komplett. GÜLTIGKEIT: Diese Anleitung gilt für folgendes Produkt: 76635I, Interner 3,5“ Card Reader mit USB 2.0 HERSTELLER: INTOS ELECTRONIC AG Siemensstraße 11 D-35394 Gießen DATUM: April 2020 LIEFERUMFANG • Interner 3,5“ Card Reader mit USB 2.0 •...
WARNSYMBOLEN UND HINWEISEN Dieses Symbol weist darauf hin, dass grundlegende Gefahren für die Gesundheit von Personen bestehen. Dieses Symbol kennzeichnet Informationen, die zum besseren Verständnis beitragen. BESTIMMUNGSGEMÄSSE VERWENDUNG Der interne InLine® Cardreader ist für PC oder Mac geeignet und kann Speicherkarten verschiedener Bauart lesen und beschreiben. Weiterhin kann ein USB 2.0 Gerät über den USB A Port ange- schlossen und betrieben werden.
Seite 4
www.inline-info.com INSTALLATION Wenn Sie Zweifel haben, wie das Gerät korrekt zu installieren ist, kontaktieren Sie bitte Ihren Händler oder eine Fachwerkstatt und lassen Sie dort die Installation durchführen! Durch unsachgemäßen Einbau können der Card Reader, Ihr Computer und andere ange- schlossenen Geräte beschädigt werden.
Seite 5
9-poliger USB-Stecker Mainboard USB-Anschluss 4: GND 6: DATA+ 8: DATA- 10: VCC 2: GND (schwarz) (grün) (weiß) (rot) 3: GND 5: DATA+ 7. DATA- 9: VCC 1: Annual (grau) (braun) (gelb) (orange) Installieren Sie die Kabel so, dass sie nicht lose im Ge- häuse hängen und z.B.
Please read these operating instructions completely. VALIDITY: This manual applies to the following product: 76635I InLine® Card Reader, USB 2.0, all in 1, for 3,5“, with 2 front panels MANUFACTURER: INTOS ELECTRONIC AG Siemensstraße 11 D-35394 Gießen DATE: April 2020 PACKAGE CONTENTS •...
www.inline-info.com WARNING SYMBOLS AND NOTICES This symbol indicates that there are fundamental risks to the health of persons. This symbol indicates information which contributes to a better understanding. INTENDED USE The internal InLine® card reader is suitable for PC or Mac and can read and write to memory cards of different types.
Seite 9
INSTALLATION If in doubt about how to install the device correctly, please contact an expert or a specialist workshop and let them do the installation! Improper installation damages the plug-in unit as well as your com- puter and all connected devices. Proceed with caution.
Seite 10
www.inline-info.com 9 pin USB plug Mainboard USB pinouts 4: GND 6: DATA+ 8: DATA- 10: VCC 2: GND (black) (green) (white) (red) 3: GND 5: DATA+ 7. DATA- 9: VCC 1: Annual (gray) (brown) (yellow) (orange) Install the cables so that they do not protrude into any of the computer’s fan, use cable ties, for example.
FRAGEN ZU PRODUKTEN ODER ZUR TECHNIK QUESTIONS ABOUT OUR PRODUCTS OR THE TECHNOLOGY? Wir helfen das passende Produkt für Ihren Bedarf zu finden, sind bei der Bezugsquellensuche be- hilflich, beantworten technische Fragen und unterstützen Sie bei der Installation Ihrer InLine Produkte, z. B. mit den aktuellsten Treibern.
