ENGLISH
,
1. button STAND-BY
2. Main Volume control

3. button, PLAY/PAUSE
4. MODE button
9
5. button, PREV (previous song)
6. COLOR button
7. LED-1 button
8. USB/SD input
9. EQ button
:
10. button, NEXT (next song)
11. LED-3 button

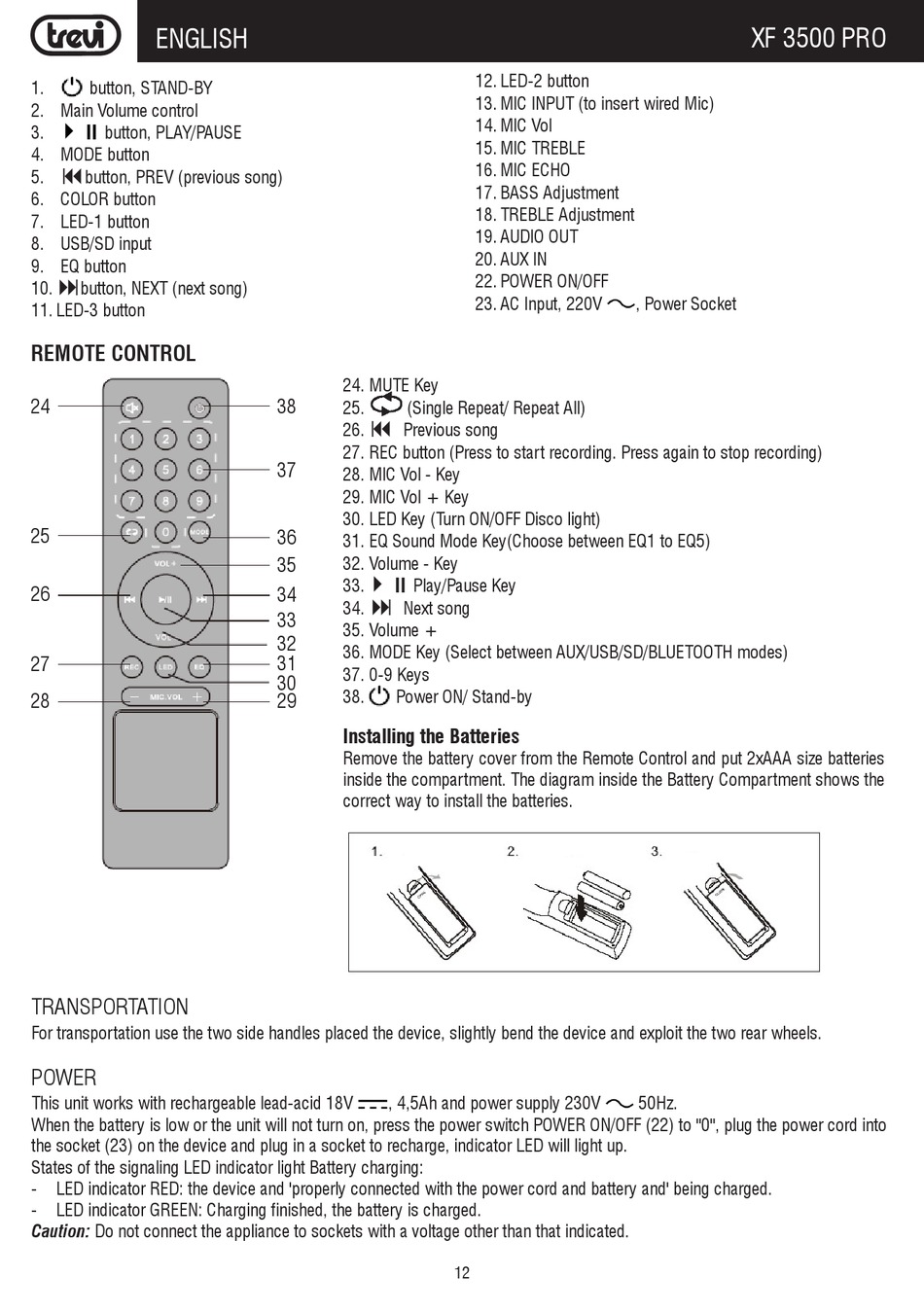

REMOTE CONTROL

24
25
26
27
28
TRANSPORTATION
For transportation use the two side handles placed the device, slightly bend the device and exploit the two rear wheels.
POWER
This unit works with rechargeable lead-acid 18V
When the battery is low or the unit will not turn on, press the power switch POWER ON/OFF (22) to "0", plug the power cord into
the socket (23) on the device and plug in a socket to recharge, indicator LED will light up.
States of the signaling LED indicator light Battery charging:
- LED indicator RED: the device and 'properly connected with the power cord and battery and' being charged.
- LED indicator GREEN: Charging finished, the battery is charged.
Caution: Do not connect the appliance to sockets with a voltage other than that indicated.
24. MUTE Key
38
25. (Single Repeat/ Repeat All)
9
26. Previous song
27. REC button (Press to start recording. Press again to stop recording)
37
28. MIC Vol - Key
29. MIC Vol + Key
30. LED Key (Turn ON/OFF Disco light)
36
31. EQ Sound Mode Key(Choose between EQ1 to EQ5)
32. Volume - Key
35

33. Play/Pause Key
34
:
34. Next song
33
35. Volume +
32
36. MODE Key (Select between AUX/USB/SD/BLUETOOTH modes)
31
37. 0-9 Keys
30
38. Power ON/ Stand-by
29
Installing the Batteries
Remove the battery cover from the Remote Control and put 2xAAA size batteries
inside the compartment. The diagram inside the Battery Compartment shows the
correct way to install the batteries.
, 4,5Ah and power supply 230V
12. LED-2 button
13. MIC INPUT (to insert wired Mic)
14. MIC Vol
15. MIC TREBLE
16. MIC ECHO
17. BASS Adjustment
18. TREBLE Adjustment
19. AUDIO OUT
20. AUX IN
22. POWER ON/OFF
23. AC Input, 220V
12
XF 3500 PRO
, Power Socket
50Hz.
