SMART DEWHEATER AND
POWER CONTROLLER 4X
INSTRUCTION MANUAL
Model #94036
ENGLISH
Congratulations on purchasing the Celestron Smart DewHeater
and Power Controller 4x. This controller delivers "smart" and
efficient power usage for up to four of your telescope system's dew
heaters and up to four 12V DC devices while also providing cable
management for your setup. Plug all your dew heaters, power cables,
and USB cables into the controller. Then you can use one cable to
connect them all to your power source and another to connect them
to your PC, if desired.
If you prefer not to connect to a PC, simply plug your dew heaters
into the controller and power it on. The controller will automatically
monitor the ambient temperature and humidity using its integrated
environmental sensor. The thermistor port monitors the corrector
lens' temperature and provides only enough power to prevent dew. If
you're using battery power, this "smart" system significantly reduces
the heaters' power consumption, extending battery life. If you would
like to manually adjust settings or monitor data, connect to a PC or
your Celestron mount's hand control.
Please read through this entire manual before attempting to use the
Smart DewHeater and Power Controller 4x.
TABLE OF CONTENTS
1. Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pg.1
2. Controller Overview . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . Pg.1
3. Mounting the Controller to Your Setup . . . . . . . . . . . . . . . . . . . . Pg.3
4. Powering the Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pg.4
5. Connecting to a Celestron Mount . . . . . . . . . . . . . . . . . . . . . . . .Pg.5
7. Connecting to a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pg.7
8. Using the Controller with CPWI Software . . . . . . . . . . . . . . . . Pg.8
9. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pg.11
Appendix A:
Appendix B:
Using the 12V DC Power Input as an Output. . . . . . . . . . . . . . Pg.13
1. Parts List

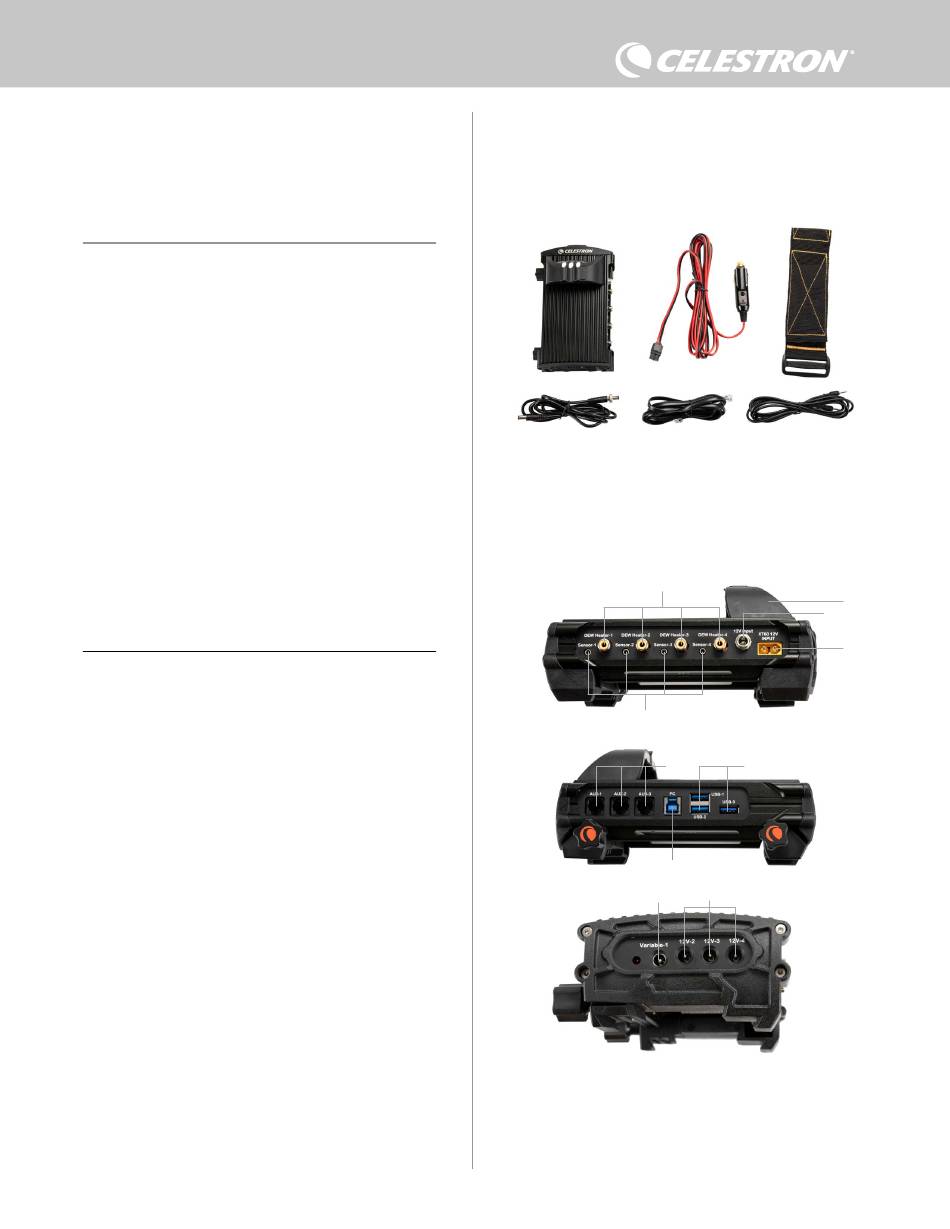

Fig 1 - All included items
Smart DewHeater and Power Controller 4x
1.
2.
Power cable
3.
Tripod leg strap
1.
2.
6.
5.
If you are missing any parts in the Parts List, please contact Celestron
Technical Support at www.celestron.com/pages/technical-support
for assistance.
2. Controller Overview
Refer to Figure 2 for an overview of the input jacks, output ports, and
features of the Smart DewHeater and Power Controller 4x.
1.
Fig 2-1
5.
Fig 2-2
6.
8.
9.
Fig 2-3
1.
Dew heater ports
2.
Bridge
3.
Power input jack (barrel connector)
4.
Power input jack (XT60 connector)
Thermistor ports
5.
Thermistor cable
4.
5.
AUX cable
6.
Mount power cable
3.
4.
2.
3.
4.
7.
10.
6.
AUX ports
7.
USB ports
8.
PC port
9.
Variable power output port
Power output ports
10.
ENGLISH |
