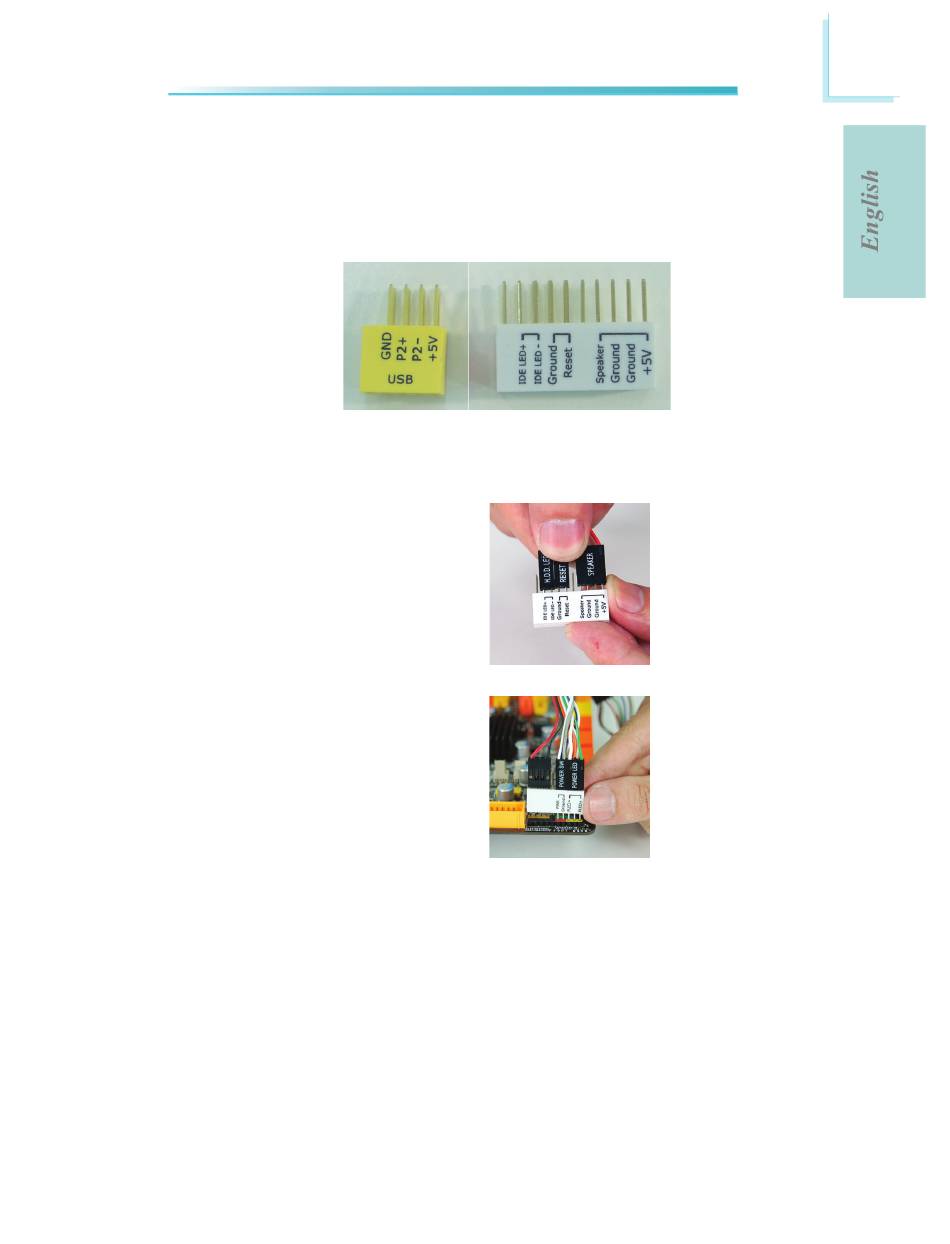

Smart Connectors
The Smart Connectors (USB, Front Panel) serve as extended connectors allowing
you to easily connect cables to the connectors that are on the system board. This
is specially advantageous when using the front panel connectors as this will pre-
vent wrong cable connection.
Front Panel Connectors
1. Connect all front panel cables from
the chassis to the front panel smart
connector. Connect according to the
pin definition shown on the smart
connector.
2. Connect the front panel smart con-
nector to the front panel connector
on the system board.
USB Connectors
1. Connect your USB port cable to the USB smart connector. Connect according
to the pin definition shown on the smart connector.
2. Connect the USB smart connector to the respective connectors on the system
board.
USB Front Panel
