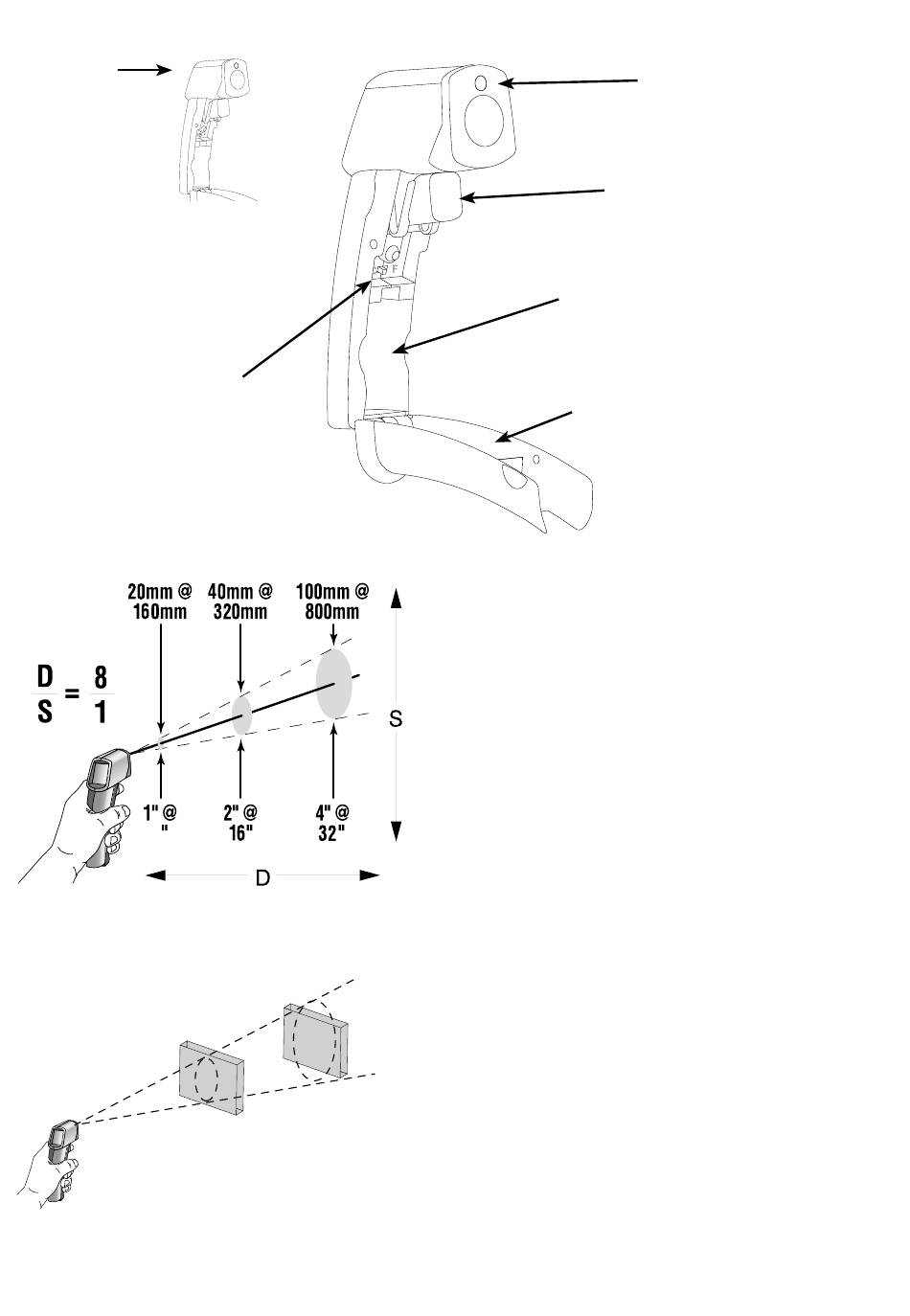

4.2 Structural overview

Display
°C deg / °F deg switch

4.3 Optical diagram and field of sight

8
Battery compartment
Battery compartment cover
Distance sensor – object [mm]
Ensure that the specific area or object to be measured is
larger than the laser spot size of the device. The smaller
the object the closer the equipment must be. For opti-
mum measuring accuracy the area/object should be at
least twice that of the spot size.
Laser
Operating trigger
