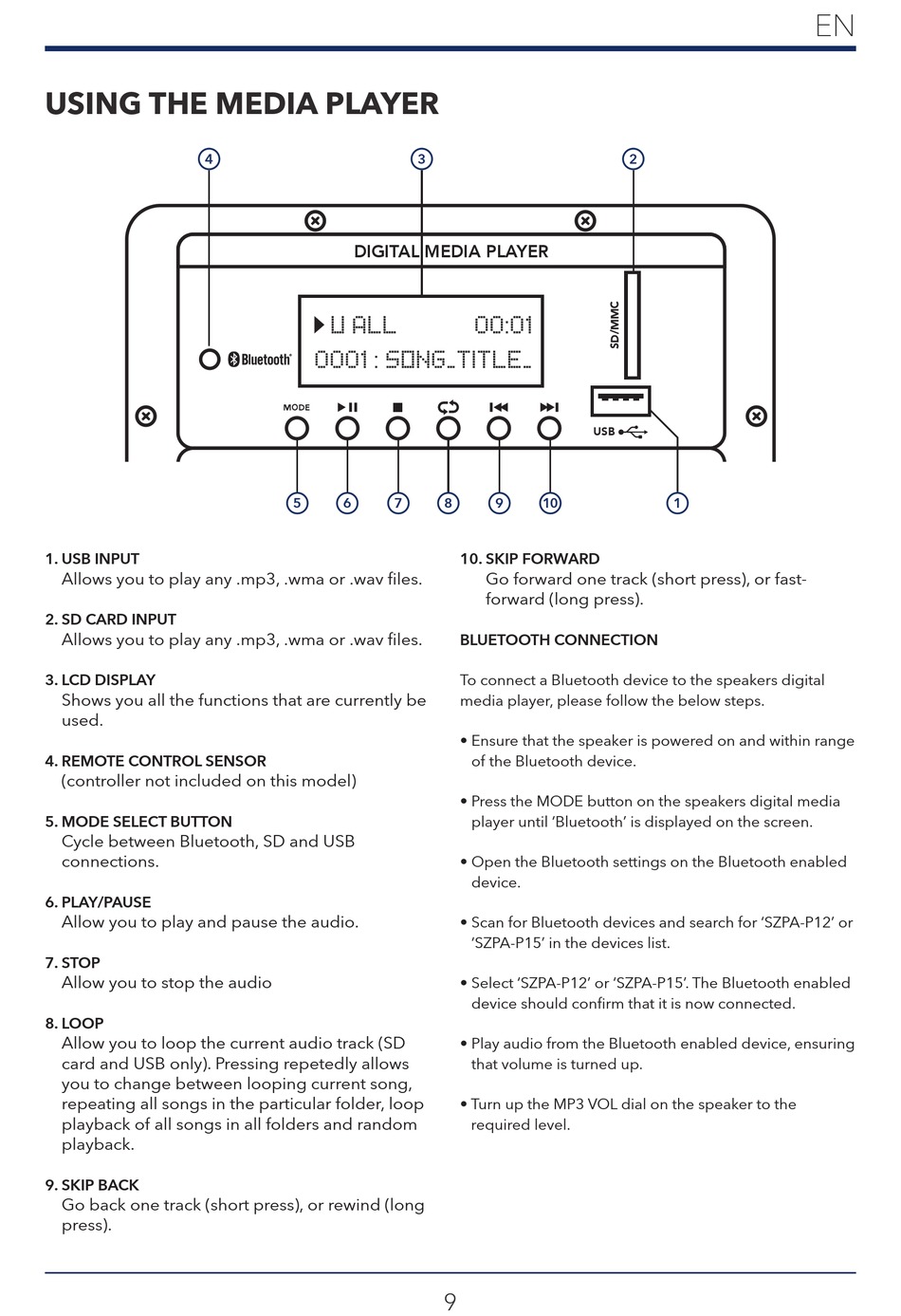

USING THE MEDIA PLAYER

4
1. USB INPUT
Allows you to play any .mp3, .wma or .wav files.
2. SD CARD INPUT
Allows you to play any .mp3, .wma or .wav files.
3. LCD DISPLAY
Shows you all the functions that are currently be
used.
4. REMOTE CONTROL SENSOR
(controller not included on this model)
5. MODE SELECT BUTTON
Cycle between Bluetooth, SD and USB
connections.
6. PLAY/PAUSE
Allow you to play and pause the audio.
7. STOP
Allow you to stop the audio
8. LOOP
Allow you to loop the current audio track (SD
card and USB only). Pressing repetedly allows
you to change between looping current song,
repeating all songs in the particular folder, loop
playback of all songs in all folders and random
playback.
9. SKIP BACK
Go back one track (short press), or rewind (long
press).
3
DIGITAL MEDIA PLAYER
U ALL
0001 : SONG_TITLE_
MODE
5 6 7 8
9
2
00:01
USB
9 10
10. SKIP FORWARD
Go forward one track (short press), or fast-
forward (long press).
BLUETOOTH CONNECTION
To connect a Bluetooth device to the speakers digital
media player, please follow the below steps.
• Ensure that the speaker is powered on and within range
of the Bluetooth device.
• Press the MODE button on the speakers digital media
player until 'Bluetooth' is displayed on the screen.
• Open the Bluetooth settings on the Bluetooth enabled
device.
• Scan for Bluetooth devices and search for 'SZPA-P12' or
'SZPA-P15' in the devices list.
• Select 'SZPA-P12' or 'SZPA-P15'. The Bluetooth enabled
device should confirm that it is now connected.
• Play audio from the Bluetooth enabled device, ensuring
that volume is turned up.
• Turn up the MP3 VOL dial on the speaker to the
required level.
EN
1
