          Version 1.1
          Published November 2020
          Copyright©2020 ASRock INC. All rights reserved.
          Copyright Notice:
          No part of this documentation may be reproduced, transcribed, transmitted, or
          translated in any language, in any form or by any means, except duplication of
          documentation by the purchaser for backup purpose, without written consent of
          ASRock Inc.
          Products and corporate names appearing in this documentation may or may not
          be registered trademarks or copyrights of their respective companies, and are used
          only for identification or explanation and to the owners' benefit, without intent to
          infringe.
          Disclaimer:
          Specifications and information contained in this documentation are furnished for
          informational use only and subject to change without notice, and should not be
          constructed as a commitment by ASRock. ASRock assumes no responsibility for
          any errors or omissions that may appear in this documentation.
          With respect to the contents of this documentation, ASRock does not provide
          warranty of any kind, either expressed or implied, including but not limited to
          the implied warranties or conditions of merchantability or fitness for a particular
          purpose.
          In no event shall ASRock, its directors, officers, employees, or agents be liable for
          any indirect, special, incidental, or consequential damages (including damages for
          loss of profits, loss of business, loss of data, interruption of business and the like),
          even if ASRock has been advised of the possibility of such damages arising from any
          defect or error in the documentation or product.
          This device complies with Part 15 of the FCC Rules. Operation is subject to the following
          two conditions:
          (1) this device may not cause harmful interference, and
          (2) this device must accept any interference received, including interference that
          may cause undesired operation.
          CALIFORNIA, USA ONLY
          The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
          controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
          California Legislature. When you discard the Lithium battery in California, USA, please
          follow the related regulations in advance.
          "Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
          perchlorate"
          ASRock Website: http://www.asrock.com

          Werbung

          Inhaltsverzeichnis
          loading

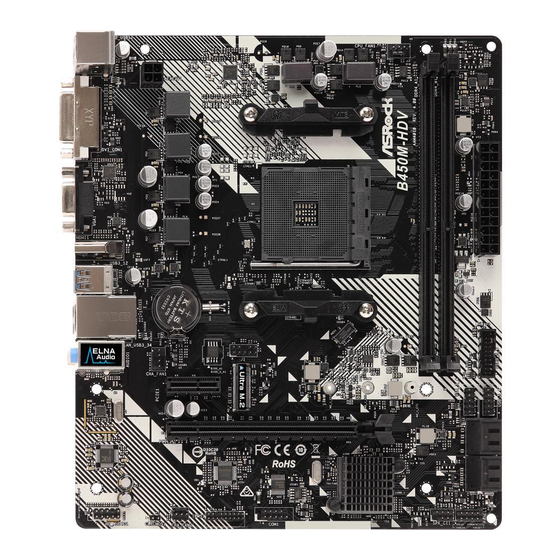

          Inhaltszusammenfassung für ASROCK B450M-HDV R4.0

          • Seite 25: Technische Daten

            ECC, ungepufferter Speicher* • Prozessoren der AMD-Ryzen-Serie (Raven Ridge) unterstützen DDR4 3200+(OC)/2933/2667/2400/2133 non-ECC, ungepufferter Speicher* * Für Prozessoren der Ryzen-Serie (Picasso- und Raven Ridge), ECC wird nur mit PRO-Prozessoren unterstützt. * Weitere Informationen finden Sie in der Speicherkompatibilitätsliste auf der ASRock-Webseite. (http://www.asrock.com/) * Die Tabelle für AMDs Non-XMP-Speicherfrequenzen finden Sie auf Seite 10. Weitere Einzelheiten finden Sie in der QVL auf ASRocks Webseite. • Systemspeicher, max. Kapazität: 64GB • Unterstützt Extreme-Memory-Profile- (XMP) Speichermodule • 15-μ-Goldkontakt in DIMM-Steckplätze CPUs der AMD-Ryzen-Serie (Matisse, Summit Ridge und...
          • Seite 26 Grafikkarte • Integrierte Grafikkarte der AMD-Radeon -Vega-Serie in APU der Ryzen-Serie* * Tatsächliche Unterstützung kann je nach Prozessor variieren • DirectX 12, Pixel Shader 5.0 • Freigabespeicher von standardmäßig 2 GB, max. Freigabespeicher unterstützt bis zu 16 GB. * Der max. Freigabespeicher von 16 GB erfordert die Installation von 32 GB Systemspeicher. • Drei Grafikkarten-Ausgangsoptionen: D-Sub, DVI-D und HDMI • Unterstützt drei Monitore • Unterstützt HDMI 1.4 mit maximaler Auflösung von 4K x 2K...
          • Seite 27 B450M-HDV R4.0 Speicher • 4 x SATA-III-6,0-Gb/s-Anschlüsse, unterstützt RAID (RAID 0, RAID 1 und RAID 10), NCQ, AHCI und Hot-Plugging • 1 x Ultra-M.2-Sockel, unterstützt M-Key-Typ-2242/2260/2280- M.2-SATA-III-6,0-Gb/s-Modul und M.2-PCI-Express-Modul bis Gen3 x 4 (32 Gb/s) (mit Matisse, Picasso, Summit Ridge, Raven Ridge und Pinnacle Ridge) oder Gen3 x 2 (16 Gb/s) (mit Athlon Serie-APU)* * Unterstützt NVMe-SSD als Bootplatte...
