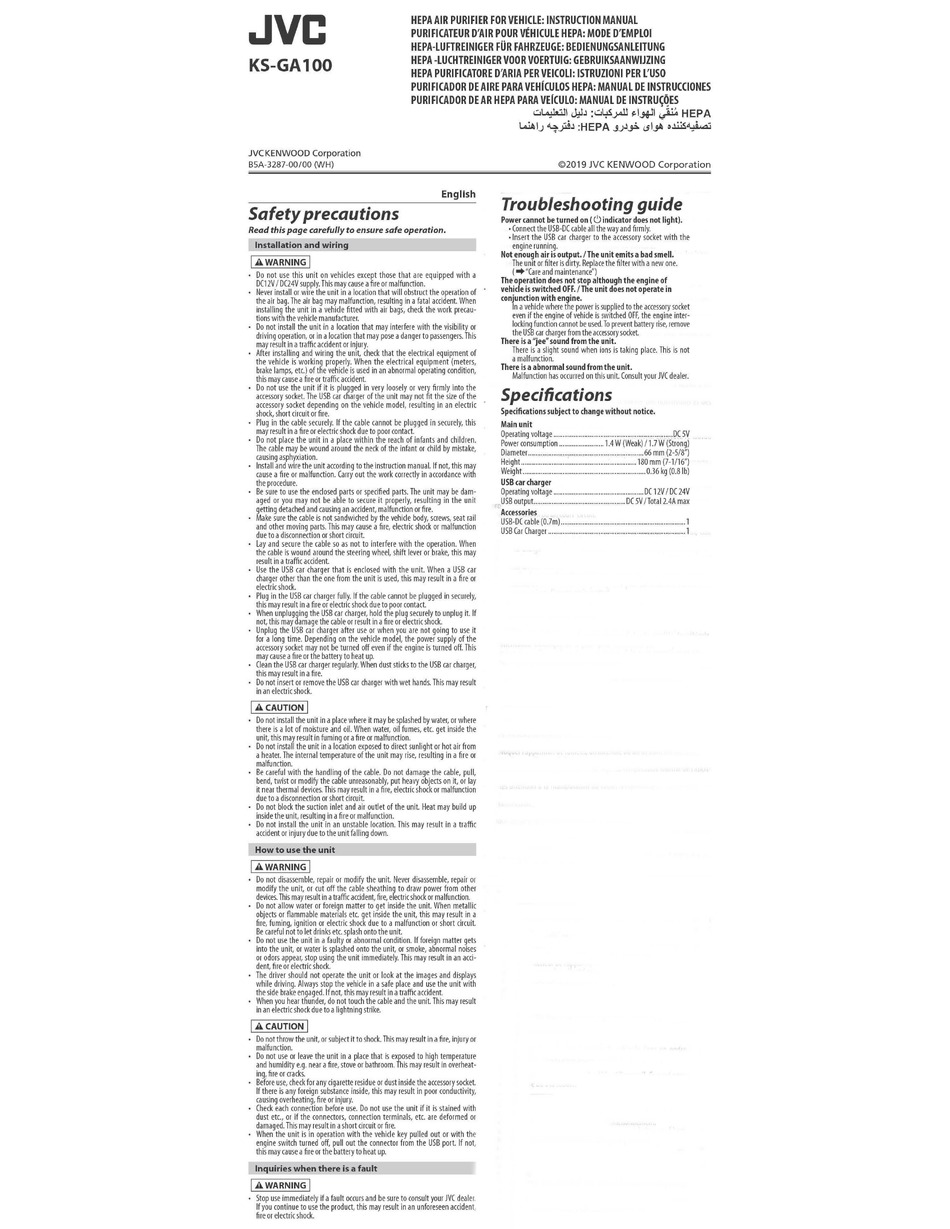

JVC KS-GA100 Bedienungsanleitung

JVC
HEPA AIR PURIFIER FOR VEHICLE: INSTRUCTION MANUAL
KS-GA100
PURIFICATEUR D'AIR POUR VEHICULE HEPA: MODE D'EMPLOI
HEPA-LUFTREINIGER FOR FAHRZEUGE: BEDIENUNGSANLEITUNG
HEPA-LUCHTREINIGERVOORVOERTUIG: GEBRUIKSAANWIJZING
HEPA PURIFICATORE D'ARIA PER VEICOLI: ISTRUZIONI PER L'USO
PURIFICADOR DE AIRE PARAVEHICULOS HEPA: MANUAL DE INSTRUCCIONES
PURIFICADOR DEAR HEPA PARA VEICULO: MANUAL DE INSTRU~QES
JVC KENWOOD Corporation
BSA-3287-00/00 (WH)
Safety precautions
English
Read this page carefully to ensure safe operation.
Installation and wiring
I
A WARNING
I
• Do not use this unit on ve hicles except those that are equipped with a
DC12V / DC24V suppl y. This may cause a fire or malfunction.
• Never install orwiretheunitina locationthat will obstructtheoperation of
theairbag.Theairbagmaymalfunction,resultinginafatalaccident.When
installingtheunitina vehiclefitted withairbags,checkthe wo rkprecau-
tionswiththevehiclemanufacturer.
Do not install the unit in a location that ma y interfere with the visibility or
drivingoperation,orinalocationthatmayposeadangertopassengers.This
mayresultinatrafficaccidentorinjury.
After installing and wiring the unit, check that the electrical equipment of
the ve hicle is wo rking properly. W hen the electrical equipment(meters,
brakelamps,etc.)ofthevehicleisusedinanabnormaloperatingcondition,
thismaycauseafireortrafficaccident.
Do not use the unit if it is plugged in ve ry loosely or very firmly into the
accessory socket. The USB car charger of the unit ma y not fit the size of the
accessory socket depending on the ve hicle model, resulting in an electric
shock,shortcircuitorfire.
• Pluginthecablesecurely.lfthecablecannotbepluggedinsecurely,this
mayresultinafireorelectricshockduetopoorcontact.
• Do not place the unit in a place wit hin the reach of infants and children.
The cable may be wo und around the neck of the infant or child by mistake,
causing asphyxiation.
• lnstalland wiretheunitaccordingtotheinstructionmanual.lfnot,thismay
causeafireormalfunction.Carryouttheworkcorrectlyinaccordancewith
the procedure.
• Besuretousetheenclosedpartsorspecifiedparts.Theunitmaybedam-
aged or you ma y not be able to secure it properly, resulting in the unit
gettingdetachedandcausinganaccident,malfunctionorfire.
Makesurethecableisnotsandwichedbythevehiclebody,screws,seatrail
and other moving parts.This maycauseafire,electricshockormalfunction
duetoadisconnectionorshortcircuit.
Laya ndsecurethecablesoas nottointerfere withtheoperation. W hen
thecableiswoundaroundthesteeringwheel,shiftleverorbrake,thismay
resultinatrafficaccident.
UsetheUSBcarchargerthatisenclosedwiththeunit. When a USBcar
chargerotherthantheonefromtheunitisused,thismayresultinafireor
electric shock.
Plug in the USB car charger fully. If the cable cannot be plugged in securely,
thismayresultinafireorelectricshockduetopoorcontact.
W hen unpluggingtheUSBcarcharger,holdtheplugsecurelytounplug it. If
not,thisma ydamagethecableorresultinafireorelectricshock.
UnplugtheUSBcarchargerafteruseor whenyouarenotgoingtouseit
for a long time. Depending on the vehicle model, the power supply of the
accessorysocketmaynotbeturned offeveniftheengineisturnedoff.This
maycauseafireorthebatterytoheatup.
• CleantheUSBcarchargerregularly.WhenduststickstotheUSBcarcharger,
thismayresultinafire.
• Do not insert or remove the USB car charger with wet hands. This may result
in an electric shock.
I
A
CAUTION
I
• Do not install the unit in a place where it ma y be splashed by water, or where
thereisalotofmoistureandoil.Whenwater,oilfumes,etc.getinsidethe
unit,thisma yresultinfumingorafireormalfunction.
• Donotinstalltheunitina location exposedtodirectsunlightorhotairfrom
aheater.Theinternaltemperatureoftheunitmayrise,resultinginafireor
malfunction.
• Be careful with the handling of the cable. Do not damage the cable, pull,
bend,twistormodifythecable unreasonably, putheavyobjectsonit,orlay
itnearthermaldevices.Thismayresultinafire,electricshockormalfunction
duetoadisconnectionorshortcircuit.
Do not block the suction inlet and air outlet of the unit. Heat may build up
insidetheunit, resultinginafireormalfunction.
• Do not install the unit in an unstable location. This ma y result in a traffic
accidentorinjuryduetotheunitfallingdown.
How to use the unit
I
A
WARNING
I
Do not disassemble, repair or modify the unit. Never disassemble, repair or
modifytheunit,orcutoffthecablesheathingtodrawpowerfromother
devices.Thismayresultinatrafficaccident,fire,electricshockormalfunction.
Do not allow water or foreign matter to get inside the unit. W hen metallic
objectsorfiammable materialsetc.getinsidetheunit,this ma y resultina
fire, fuming, ignition orelectricshockduetoa malfunction or short circuit.
Becarefulnottoletdrinksetc.splashontotheunit.
Do notusetheunitin a faulty or abnormal condition. If foreign matter gets
intotheunit,or waterissplashedontotheunit,orsmoke,abnormalnoises
orodorsappear,stopusingtheunitimmediately. This may resultinanacci-
dent,fireorelectricshock.
• The driver should not operate the unit or look at the images and displays
whiledriving.Alwaysstopthe ve hicleinasafeplaceand use the unit with
the side brake engaged. lfnot, this may result in a trafficaccident.
• W henyouhearthunder,donottouchthecableandtheunit.Thismayresult
inanelectricshockduetoalightningstrike.
I
A
CAUTION
I
• Donotthrowtheunit,orsubjectittoshock.Thismayresultinafire,injuryor
malfunction.
• Do not use or leave the unit in a place that is exposed to high temperature
andhumiditye.g.nearafire,stoveorbathroom.Thismayresultinoverheat-
ing,fi reorcracks.
• Beforeuse,checkforanycigaretteresidueordustinsidetheaccessorysocket.
lfthereisanyforeignsubsta nceinside,thismay resultinpoorconductivity,
causingoverheating,fireorinjury.
• Check each connection before use. Do not use the unit ifit is stained with
dustetc.,oriftheconnectors, connection terminals, etc.are deformed or
damaged.Thismayresultinashortcircuitorfire.
W hentheunitisinoperation withthe ve hiclekeyp ulled out or with the
engine switch turned off, pull out the connector from the USB port. If not,
thismaycauseafireorthebatterytoheatup.
Inquiries when there is a fault
I
A
WARNING
I
• Stopuseimmediatelyifafaultoccursand besuretoconsultyour JVCdealer.
lfyoucontinuetousetheproduct,thismayresultinanunforeseenaccident,
fire or electric shock.
.::.l...,/lalll J.,lJ :.::.t.,,s_.>A,!l ~1.J¾-11
~
HEPA
L..JAIJ ½,ji!J :HEPA JJJ.J'I'
c5\~
o.l.i.iS~
©2019 JVC KENWOOD Corporation
Troubleshooting guide
Power cannot be turned on (('.)indicator does not light).
•ConnecttheUSB-DCcableallthewayandfirmly.
•lnserttheUSBcarchargertotheaccessorysocketwiththe
engine running.
Not enough air is output./ The unit emits a bad smell.
Theunitorfilterisdirty.Replacethefilter witha new one.
( .. "Ca re and maintenance")
The operation does not stop although the engine of
vehicle is switched OFF./The unit does not operate in
conjunction with engine.
lna vehicle wherethepoweris suppliedtotheaccessorysocket
even iftheengineofvehicle is switched OFF, the engine inter-
lockingfunctioncannotbeused.Topreve ntbatteryrise, remove
theUSBcarchargerfromtheaccessorysocket.
There is a "jee" sound from the unit.
There isa slight sound when ions is taking place. This is not
a malfunction.
There is a abnormal sound from the unit.
Malfunction has occurred onthisunit.Consultyour JVCdealer.
Specifications
Specifications subject to change without notice.
Main unit
Operating voltage DC5V
Powerconsumption ........................ 1.4 W(Weak)/ 1.7 W(Strong)
Diameter 66 mm (2-5/8")
Height 180 mm (7-1/16")
Weight 0.36kg(0.81b)
USB car charger
Operating voltage _ _ _ _ _ _ _ D( 12V /DC24V
ro USBoutpu DC5V/Total2.4Amax
Accessories
USB-DCcable (0.7m) _ _ _ _ _ _ _ _ _ _
USBCarCharger _ _ _ _ _ _ _ _ _ _ _
~
