R
3

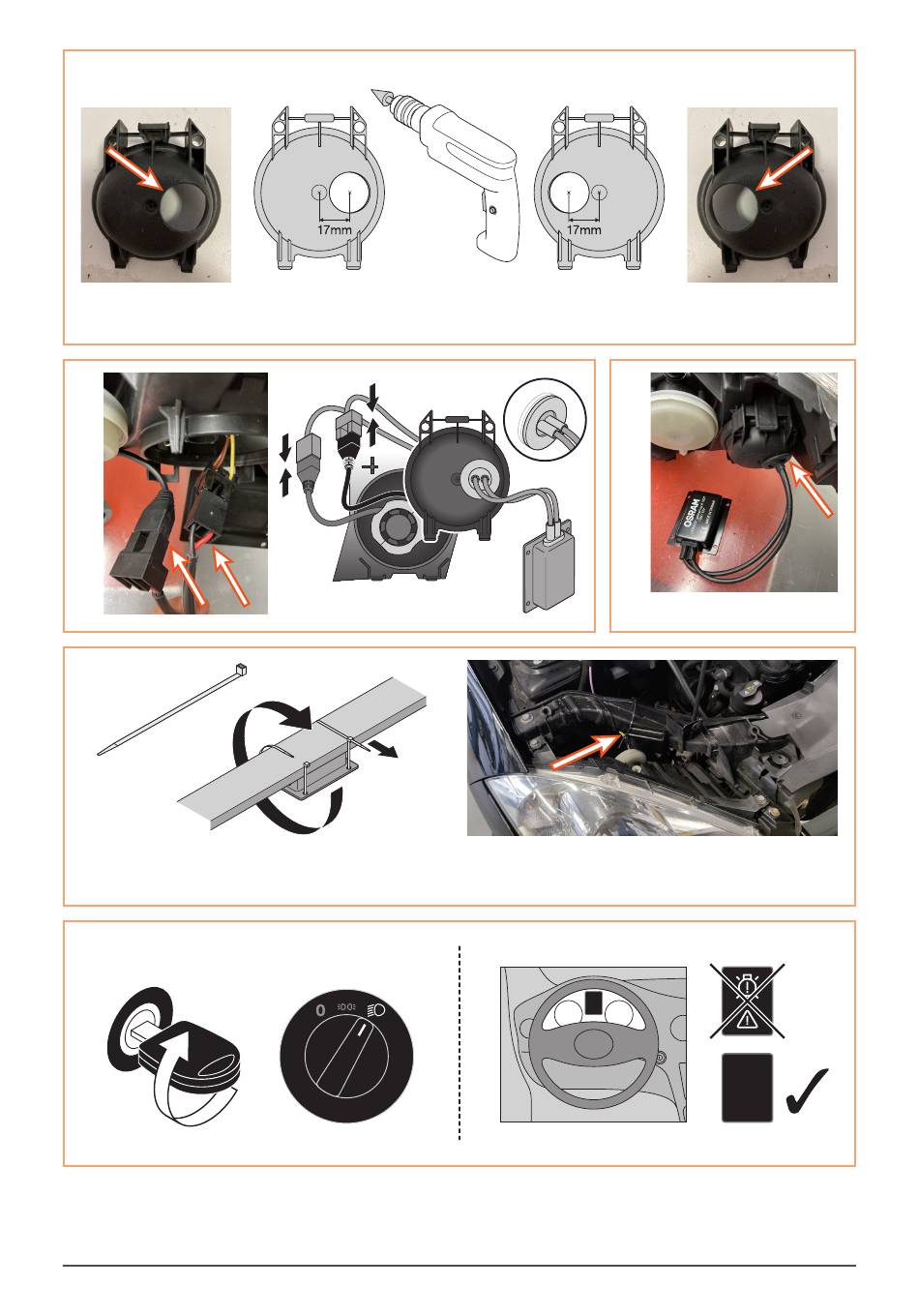

Mark the headlight protective cover where the hole needs to be drilled.
Using a step drill, drill the hole needed for the cable to pass through.
7
10
Mount the SMART CANBUS (load resistor) to the vehicle's body (metal).
Please note:
Pull the cable ties until they are taut.
5
ON
For questions regarding maintenance or technical problems, please contact OSRAM customer service via
automotive-service@osram.com .
Installation instructions for electronic load resistor
ø 25.4 mm
4)
ON
5)
1)
LEDSC01
L
2)
5
Seal using rubber gasket.
3)
2
