Red Sea REEFER XXL LED Montageanleitung Seite 2

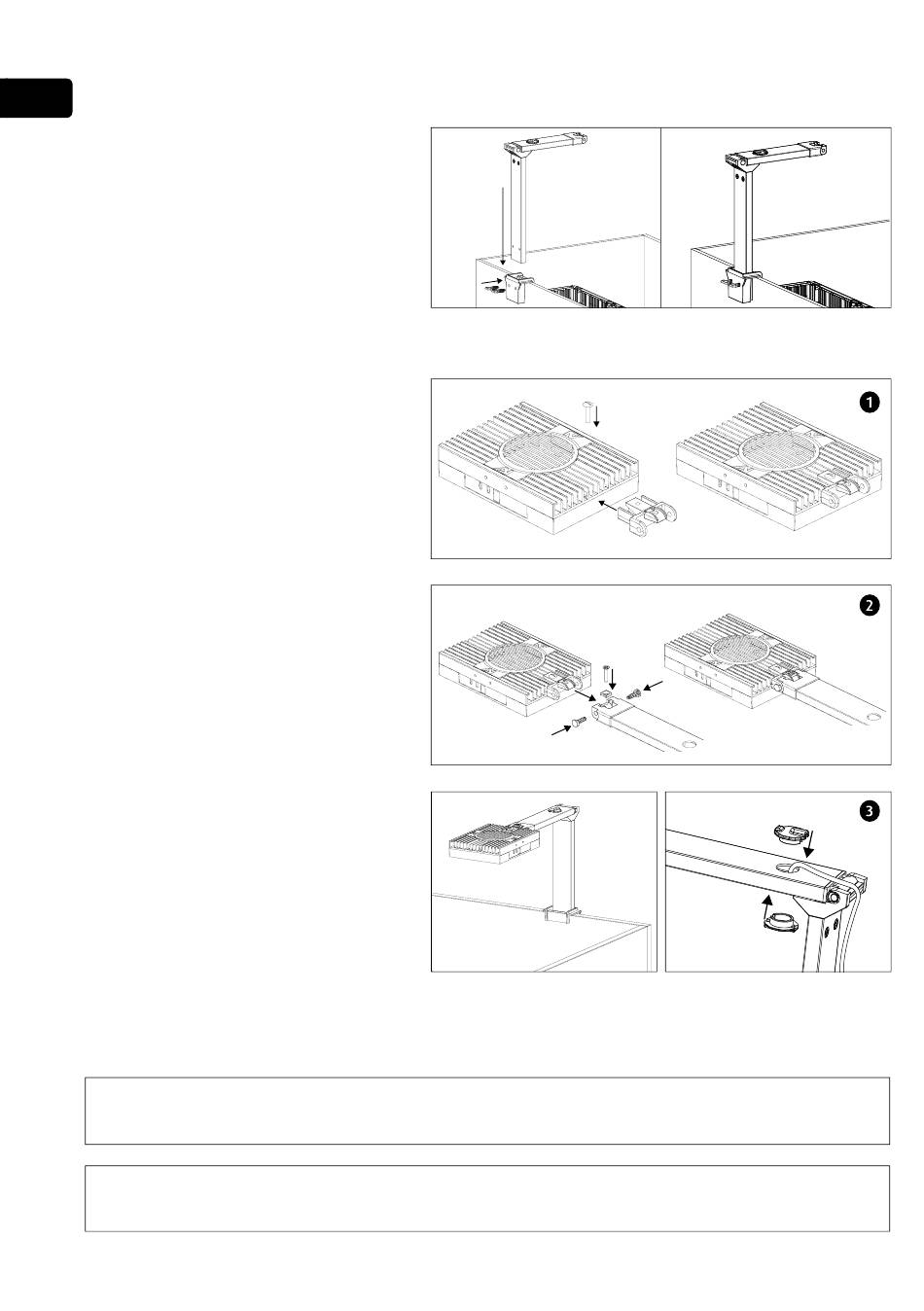

ENG Assembly - LED Mounts
Place the mounting bracket in the desired
position on the back wall of the aquarium.
Insert the mounting column to the bracket
and fix in position with 2 screws provided.
Hand-tighten the screws only! Do not attach
the LED modules at this time. Do not insert
the cable plugs into the hole in the arm.
Make sure that the mounting arm is in the
horizontal position.
Installation of LED Modules
1. Using the M3 screws provided, lightly
Attach the swivel connector to the
Hydra 26 HD as shown in the diagram.
Replace the fan cover and ensure that
the swivel connector is parallel to the
top of the aluminum before tightening
the screws.
2. Put the swivel connector pins and fixing
screw within easy reach of the aquarium.
Locate the LED Module in front of the
mounting arm and push swivel connector
in position. Insert the connector pins
to both sides and push until firmly in
position. Screw the fixing screw into the
top of the connector. Adjust the position
of the LED module until it is parallel with
the top of the aquarium and tighten
the fixing screw. The swivel connector
allows rotational adjustment for personal
preference of approximately 5 degrees.
3. Bring the cable to the rear of the
mount and thread the cable through
the hole in the arm so that there is sufficient cable to plug the DC jack into the connector on the LED
module. Flatten the cable against the underside of the mounting arm and insert the bottom cable plug.
Insert the cable plug into the top of the arm so that the cable is facing backwards.
WARNING: The LED module is not waterproof. Do not get the unit wet and do not submerge any part of it or
WARNING: LED lights produce extremely intense light output that may damage or injure your eyes.
All manuals and user guides at all-guides.com
the power cord in the aquarium water.
Do not look directly into the LED's any time the fixture is illuminated.
