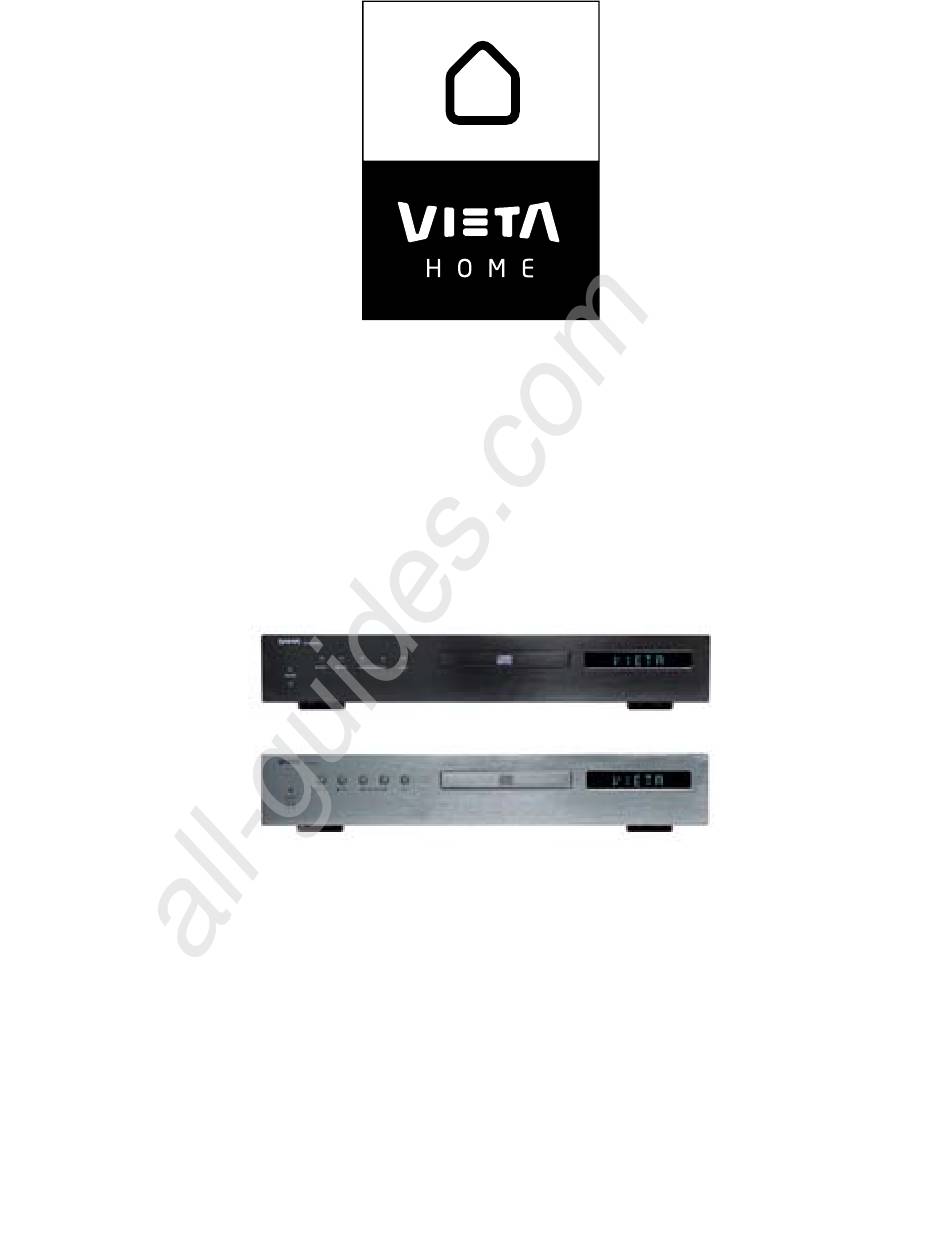

All manuals and user guides at all-guides.com VH-CD060 Manual de usuario Reproductor CD/MP3 User Manual CD/MP3 Player Manual de utilizador Leitor de CD/MP3 Le rogamos que lea el manual de usuario antes de utilizar el producto y que lo guarde para futuras consultas.
All manuals and user guides at all-guides.com INDICE CONDICIONES DE GARANTÍA PRECAUCIONES DE SEGURIDAD INFORMACIÓN IMPORTANTE VIETA AUDIO S.A. garantiza sus productos por un periodo de 24 meses. El periodo de garantía comienza en la fecha de compra de productos totalmente nuevos y sin usar por parte del primer usuario final. Esta garantía cubre los posibles fallos de fabricación para todos los productos Vieta vendidos en el territorio español por CONEXIÓN ELÉCTRICA distribuidores autorizados.
All manuals and user guides at all-guides.com PRECAUCIONES DE SEGURIDAD INFORMACIÓN IMPORTANTE Instrucciones de uso Condensación Se puede producir condensación en los siguientes - Los paneles superior y trasero de la unidad Un triángulo con el símbolo del rayo avisa al usuario de casos: pueden calentarse después de un uso prolongado.
All manuals and user guides at all-guides.com CONEXIÓN ELÉCTRICA MANDO A DISTANCIA Conexión a la red Inserción de las pilas 1. Retire la tapa conforme aparece en el dibujo. 3. Retire la tapa. 2. Coloque dos pilas del tipo AAA/R03/UM4 en el compartimento de pilas.
Seite 5
All manuals and user guides at all-guides.com MANDO A DISTANCIA DE FUNCIONAMIENTO TOTAL PARA UNIDAD VIETA VH-CD030, VH-CD060, VH-HT010, VH-HR065, VH-HA050/075/100 VH-CD030/ VH-CD060/ VH-HT010/ VH-HR065/ VH-HA050/075/100 Power (Botón encendido) Activa en modo de reposo (standby) y ON (encendido) las unidades.
All manuals and user guides at all-guides.com CONEXIONES Y PANEL FRONTAL CONEXIONES PANEL TRASERO Panel frontal Conexiones 1. Salida estéreo: salida analógica de estéreo. Para conectar al amplificador estéreo o receptor con entrada analógica. 2. Salida óptica: salida digital. 1. Interruptor de energía: para encender y apagar la corriente principal. 3.
Si el disco aún no puede reproducirse, debe contactar con su distribuidor. Esta página sólo contiene sugerencias para la conexión de su VH-CD060. Tenga en cuenta que los accesorios en las imágenes de esta página no están incluidos en el suministro.
(más de 1 s) en el botón << y el amplificador/receptor están dañados. del mando a distancia o el botón SKIP<< en el panel - Los cables RCA entre la unidad VH-CD060 y el frontal. amplificador/receptor están dañados alrededor el cable de corriente.
All manuals and user guides at all-guides.com DATOS TÉCNICOS CONTENTS DATOS TÉCNICOS SAFETY PRECAUTIONS Reproducción del disco: CD, CD-R, Mp3 IMPORTANT INFORMATION Respuesta en frecuencia: 20 Hz – 20 kHz (+/- 0.5 dB) CONNECTION TO THE MAINS Relación señal a ruido: 108 dB (20 Hz –...
All manuals and user guides at all-guides.com SAFETY PRECAUTIONS IMPORTANT INFORMATION Handling instructions Condensation Protect the power cord Positioning Do not put your fingers or any other objects into the unit Interference Reproductor CD/MP3...
All manuals and user guides at all-guides.com CONNECTION TO THE MAINS REMOTE CONTROL Installation of batteries Do not turn on the power before all connections have been made correctly. Check that all connections have been made correctly before turning on the power.
Seite 12
All manuals and user guides at all-guides.com FULL FUNCTION REMOTE CONTROL FOR VIETA VH-CD030, VH-CD060, VH-HT010, VH-HR065, VH-HA050/075/100 VH-CD030/ VH-CD060/ VH-HT010/ VH-HR065/ VH-HA050/075/100 Power To set the unit(s) into standby and ON. √ √ √ √ √ Eject Open and close the disc tray √...
Seite 13
All manuals and user guides at all-guides.com FRONT PANEL AND CONNECTIONS BACK PANEL AND CONNECTIONS Front panel Connections 1. Stereo Output: Analogue stereo output. For connection to stereo amplifier or receiver with analogue input. 2. Optical Ouput: Digital output. For connection to an amplifier or receiver with optical input. 3.
All manuals and user guides at all-guides.com CONNECTION WITH AMPLIFIER OPERATION AND FUNCTIONS Audio connection layout On, Off and standby 1. Turn on and off the unit by pressing the mains switch. 2. Press the standby button on the remote control to switch into standby mode and power on again.
Seite 15
You will see that the amplifier/receiver have been damaged. time counter in the display counts up very quickly. -The RCA cables between the VH-CD060 and the amplifier/receiver have been wound around the If you wish to search backward, use the same power cord.
All manuals and user guides at all-guides.com TECHNICAL DATA TECHNICAL DATA Disc playback: CD, CD-R, Mp3 Frequency response: 20 Hz – 20 kHz (+/- 0.5 dB) Signal to noise ratio : 108 dB (20 Hz – 20 kHz, A-weighted) Channel separation: >...
All manuals and user guides at all-guides.com INDICE CONDIÇÕES DE GARANTIA PRECAUÇÕES DE SEGURANÇA INFORMAÇÃO IMPORTANTE A VIETA AUDIO S.A. atribuí a garantia aos seus produtos pelo período de 24 meses. O período de garantia começa na data da compra de produtos novos e não utilizados pelo utilizador final. CONEXÃO À...
All manuals and user guides at all-guides.com PRECAUÇÕES DE SEGURANÇA INFORMAÇÃO IMPORTANTE Instruções para a utilização Condensação - Painéis de topo e parte traseira da unidade podem A condensação pode ocorrer nos seguintes casos: Um triângulo com o símbolo de alerta o usuário que a ficar quentes após uso prolongado.
All manuals and user guides at all-guides.com CONEXÃO À CORRENTE PRINCIPAL CONTROLO REMOTO Conexão à corrente principal Instalação das pilhas 1. Remova a tampa, como mostrado no desenho. 3. Remova a tampa. 2. Insira duas pilhas do tipo AAA/R03/UM4 no compartimento da bateria.
Seite 20
All manuals and user guides at all-guides.com FUNCIONAMENTO COMPLETO DO CONTROLO PARA A UNIDADE VIETA VH-CD030, VH-CD060, VH-HT010, VH-HR065, VH-HA050/075/100 VH-CD030/ VH-CD060/ VH-HT010/ VH-HR065/ VH-HA050/075/100 Potência Para definia(s) unidade(s) para Pausa e ON. √ √ √ √ √ Ejectar Abrir e fechar a bandeja do disco.
All manuals and user guides at all-guides.com PAINEL FRONTAL E CONEXÕES CONEXÕES PAINEL TRASEIRO Painel frontal Conexões 1. Saída estéreo: Saída estéreo analógica. Para conexão ao amplificador ou receptor estéreo com entrada analógica. 2. Saída Óptica: Entrada Saída Digital. 1. Interruptor de Rede: Para ligar ou desligar (ON/OFF) a corrente de rede. 3.
Se o disco ainda PLAY/PAUSE. assim não poder ser reproduzido, tem de contactar o seu revendedor. Esta página apenas contém sugestões para a conexão do seu VH-CD060. Note que os acessórios nas imagens desta página não são incluídos no fornecimento. Leitor de CD/MP3...
Irá ver que o contador de -Os cabos RCA entre VH-CD060 e o tempo no display conta muito rapidamente. amplificador/receptor estão danificados em volta do cabo de alimentação.
All manuals and user guides at all-guides.com DADOS TÉCNICOS DADOS TÉCNICOS Reprodução de Disco: CD, CD-R, Mp3 Frequência de Resposta: 20 Hz – 20 kHz (+/- 0.5 dB) Rácio Sinal-Ruído: 108 dB (20 Hz – 20 kHz, A-pesado) Separação Canal: >...
Seite 25
All manuals and user guides at all-guides.com www.vieta.es...
Seite 26
All manuals and user guides at all-guides.com VH-CD060 Bedienungsanleitung Bitte lesen Sie die Bedienungsanleitung vor der ersten Benutzung des Produktes, und heben Sie sie für zukünftige Fragen gut auf.
Seite 27
All manuals and user guides at all-guides.com...
Seite 28
All manuals and user guides at all-guides.com INHALT SICHERHEITSMASSNAHMEN WICHTIGE HINWEISE STROMANSCHLUSS Stromanschluss FERNBEDIENUNG BEDIENUNG Einlegen der Batterien Bedienung der Fernbedienung Funktionen der Fernbedienung 8 - 9 VORDERSEITE UND ANSCHLÜSSE Vorderseite 10 RÜCKWAND UND ANSCHLÜSSE Anschlüsse Erläuterung der VFD-Anzeige ANSCHLUSS AN VERSTӒRKER Layout Audio-Anschluss 12 BEDIENUNG UND FUNKTIONEN 13 - 14 FEHLERBEHEBUNG TECHNISCHE DATEN...
All manuals and user guides at all-guides.com SICHERHEITSMASSNAHMEN Ein Dreieck mit einem Blitz-Symbol weist den Benutzer auf “gefährliche Spannung” ohne Isolierung im Gehäuse hin, die hoch genug sein kann, um einen elektrischen Schlag verursachen zu können. Ein Dreieck mit einem Ausrufezeichen weist den Benutzer auf wichtige Anweisungen zu Verwendung und Wartung in der beiliegenden Anleitung hin, die sorgsam durchgelesen werden sollten.
All manuals and user guides at all-guides.com WICHTIGE HINWEISE Bedienungsanweisung Kondensation Kondensation kann in den folgenden Fällen auftreten: - Die Ober-und Rückseite des Geräts kann nach längerem Gebrauch warm werden. Dies geschieht - Wenn das Gerät direkt von einem kalten in einen nicht aufgrund eines Defektes.
All manuals and user guides at all-guides.com STROMANSCHLUSS AN ALOG O UT AC ~2 20- 240 V/ 50H z DI GI TA L OU T PO WE R OP TI CA LC OA XI AL VH -C D0 60 BK /S L AC ~2 20 -2 40 /5 0H z 30 W OF F...
Ende). - Alte und neue Batterien, sowie verschiedene Batterietypen, nicht miteinander mischen. - Wenn die Fernbedienung über einen langen Zeitraum nicht benutzt wird, entfernen Sie die Batterien aus dem Batteriefach, um Korrosion zu vermeiden. VH-CD060 BK/S L 005-00:08 Benutzung der Fernbedienung PLAY...
Skip (I<<)/Vorher: Wählt den letzten Titel der CD, REPEAT (WIEDERHOLEN) Wiederholt ein einzelnes Lied oder alle Lieder der PRO/RDM PRO (Programm) nur bei VH-CD060; RDM (Random = Zufallswiedergabe) nur bei 10 << Spult in der Wiedergabe die CD schnell zurück, 11 TIME (ZEIT) Knopf nach Zeiten und Sendungen drücken...
Seite 34
√ √ √ √ √ √ × × × auf VH-CD030, VH-CD060. Voreinstellungen auf VH-HT010 & VH-HR065; (z.B. 10, drücken Sie +10 Knopf und 0 Knopf; √ √ √ √ × um CD-Lied oder Tuner Voreinstellung 15 auszuwӓhlen. seleccionar la pista del CD o el preajuste de la radio.
All manuals and user guides at all-guides.com VORDERSEITE UND ANSCHLÜSSE Vorderseite VH -C D0 60 BK 005-00:08 PL AY ST OP SE AR CH /S KI P EJ EC T ON /S TB Y 1. Hauptschalter: Herunter drücken, um Strom AN/AUS zu schalten. 2.
All manuals and user guides at all-guides.com RÜCKWAND UND ANSCHLÜSSE Anschlüsse AN ALOG O UT AC ~2 20- 240V /5 0H z DI GI TA L OU T PO WE R OP TI CA LC OA XI AL VH -C D0 60 BK /S L AC ~2 20 -2 40 /5 0H z 30 W OF F...
All manuals and user guides at all-guides.com ANSCHLUSS AN VERSTӒRKER Layout Audio-Anschluss TA L Analog amplifier/receiver Digital amplifier/receiver backpanel VH-HA075BK Diese Seite enthält nur Vorschläge für den Anschluss Ihres VH-CD060. Beachten Sie, dass das Zubehör in den Bildern auf dieser Seite nicht im Lieferumfang enthalten ist. Bedienungsanleitung...
All manuals and user guides at all-guides.com BEDIENUNG UND FUNKTIONEN An, Aus und Standby 1. Gerät ein- und ausschalten, indem Sie den Netzschalter drücken. 2. Drücken Sie die Standby-Taste auf der Fernbedienung, um in den Standby-Modus zu gelangen, und schalten Sie wieder ein. 3. Wenn Sie das Gerät ausschalten, um Stromverbrauch zu vermeiden, müssen Sie die Netzschalter drücken.
All manuals and user guides at all-guides.com BEDIENUNG UND FUNKTIONEN STOP Programm Um die Wiedergabe vollständig zu stoppen, drücken Die Programmierung von Titeln auf einer CD in einer Sie die STOP-Taste einmal. bestimmten Reihenfolge. Das Display wird die Anzahl der Titel auf der CD und Der Stop-Modus muss zunächst aktiviert sein, um Titel die gesamte Wiedergabezeit anzeigen.
- Prüfen Sie, ob es sich um eine CD, CD-R oder MP3-Audio-CD handelt. Ein Summen ist zu hören. -Die RCA Kabel zwischen VH-CD060BK/SL und der Verstärker / Receiver sind beschädigt. -Die RCA-Kabel zwischen dem VH-CD060 und der Verstärker / Receiver wurden um die Stromkabel gewickelt.
