PERM Set >2s OFF OPTICAL LIGHT SOURCE OPTICAL LIGHT SOURCE OPTISCHE LICHTQUELLE SOURCE LUMINEUSE OPTIQUE Quick Start Guide V2.0 Quick-Start Anleitung Guide de Démarrage Rapide...
Seite 2

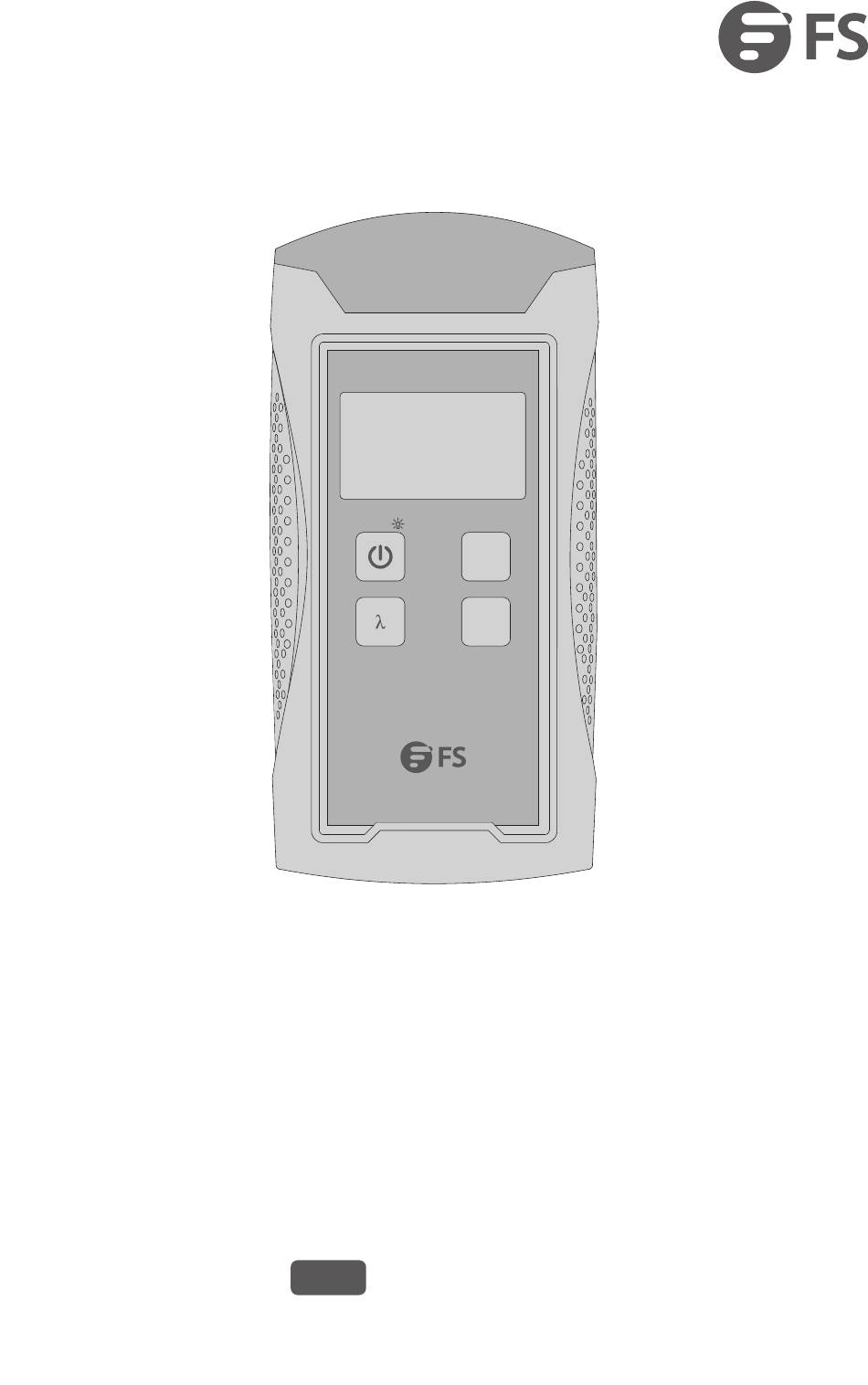

The gures below display the product images of the two optical light sources. PERM Set >2s OFF OPTICAL LIGHT SOURCE FOLS-201/FOLS-202 Accessories FOLS-201/FOLS-202 SC Adapter x1 FC Adapter x1...
Seite 3
Installing Inserting FC Cables 1. Remove dust cap. 2. Install FC ber cable.
Seite 4
Inserting ST Cables 1. Install ST connector. 2. Install ST ber cable.
Seite 5
Inserting SC Cables 1. Install SC connector. 2. Install SC ber cable.
FOLS-201/FOLS-202 Function Introductions PERM Set >2s OFF OPTICAL LIGHT SOURCE Description Button Description Power/Backlight Button Output Wavelength Shift Button Wavelength ID Button Load Modulation Button...
Seite 7
Operation Instructions 1. Power On/O and Auto-o Function Press button to turn on the instrument. Press it again for 2 seconds or more to turn o the instrument. This light source has a power-saving function. If 10 minutes without any operation, the instrument will automatically shut down.
(6) Do not view the laser output directly when using the optical light source. Or else, personal injury should not be attributed to the product and FS. Online Resources https://www.fs.com/download.html...
Product Warranty FS ensures our customers that any damage or faulty items due to our workman- ship, we will o er a free return within 30 Days from the day you receive your goods. Warranty: All Optical Light Sources enjoy 1 year limited warranty against defect in materials or workmanship.
Seite 10
Kombination mit einem Leistungsmessgerät bietet sie eine schnelle und genaue Testlösung sowohl für Singlemode- als auch für Multimode-Fasern. Die Abbildungen unten zeigen die Produktbilder der beiden optischen Lichtquellen. PERM Set >2s OFF OPTICAL LIGHT SOURCE FOLS-201/FOLS-202 Zubehör FOLS-201/FOLS-202 SC-Adapter x1 FC-Adapter x1...
Installation Einsetzen der FC-Kabel 1.Staubkappe entfernen. 2. FC-Faserkabel verlegen.
Seite 12
Einsetzen von ST-Kabeln 1. ST-Stecker installieren. 2. ST-Faserkabel verlegen.
Seite 13
Einsetzen von SC-Kabeln 1. SC-Stecker installieren. 2. SC-Faserkabel verlegen.
Seite 14
FOLS-201/FOLS-202 Funktionen PERM Set >2s OFF OPTICAL LIGHT SOURCE Beschreibung Taste Description Power/Backlight-Taste Ausgangswellenlängen-Umschalttaste Wellenlängen-ID-Taste Load Modulation-Taste...
Seite 15
Betriebsanleitung 1. Ein-/Ausschalten und Auto-o -Funktion Drücken Sie die Taste , um das Gerät einzuschalten. Drücken Sie die Taste erneut für 2 Sekunden oder länger, um das Gerät auszuschalten. Diese Lichtquelle hat eine Energiesparfunktion. Wenn 10 Minuten lang keine Bedienung erfolgt, schaltet sich das Gerät automatisch ab. Wenn Sie diese Funktion deaktivieren möchten, brauchen Sie beim Einschalten des Geräts nur die Taste 2 Sekunden lang zu drücken, bis "PERM"...
(5) Um Messfehler zu vermeiden, decken Sie bitte die staubdichte Kappe ab, um sicherzustellen, dass die optische Schnittstelle sauber ist, wenn das Gerät nicht in Gebrauch ist. (6) Schauen Sie nicht direkt in den Laserausgang, wenn Sie die optische Lichtquelle verwenden. Online Ressourcen https://www.fs.com/de/download.html Download https://www.fs.com/de/service/fs_support.html Hilfecenter Kontakt https://www.fs.com/de/contact_us.html...
Seite 17
Product Warranty FS garantiert seinen Kunden, dass wir bei Beschädigungen oder fehlerhaften Artikeln innerhalb von 30 Tagen nach Erhalt der Ware eine kostenlose Rückgabe anbieten. Garantie: Auf alle optischen Lichtquellen gewähren wir 1 Jahr beschränkte Garantie gegen Material- und Verarbeitungsfehler.
Seite 18
Elle fournit une solution de test sur les bres monomodes et multimodes rapide et précise. Les gures ci-dessous présentent les images du produit des deux sources lumineuses optiques. PERM Set >2s OFF OPTICAL LIGHT SOURCE FOLS-201/FOLS-202 Accessories FOLS-201/FOLS-202 Adaptateur SC x1 Adaptateur FC x1...
Seite 19
Utilisation Insertion des Câbles FC 1. Retirez le capuchon anti-poussière. 2. Installez le câble à bre FC.
Seite 20
Insertion des Câbles ST 1. Installez le connecteur ST 2. Installez le câble à bre ST.
Seite 21
Insertion des Câbles SC 1. Installez le connecteur SC. 2. Installez le câble à bre SC.
Seite 22
FOLS-201/FOLS-202 Présentations des Fonctions PERM Set >2s OFF OPTICAL LIGHT SOURCE Description Touches Description Touche d'Allumage/Éclairage Touche de Décalage de Longueur d'Onde de Sortie Touche d'Identi cation de Longueur d'Onde Touche de Modulation de la Charge...
Instructions d'Utilisation 1. Fonction Marche/Arrêt et Arrêt Automatique Appuyez sur la touche d'allumage . Appuyez à nouveau sur cette touche pendant 2 secondes ou plus pour éteindre l'instrument. L'appareil est dotée d'une fonction d'économie d'énergie. Après 10 minutes sans opération, l'instrument s'éteint automatiquement. Si vous souhaitez désactiver cette fonction, il vous su t d'appuyer sur la touche pendant 2 secondes lorsque vous allumez l'instrument jusqu'à...
Seite 24
Ne pas regarder directement le laser lors de l'utilisation de l'appareil. Autrement, toute blessure corporelle ne sera pas attribuée au produit ou à FS. Information en ligne Téléchargez https://www.fs.com/fr/download.html...
Garantie du Produit FS garantit à ses clients que tout article endommagé ou défectueux dû à sa fabrication pourra être retourné gratuitement dans un délai de 30 jours à compter de la date de réception de la marchandise. Garantie : Toutes les sources lumineuses béné cient d'une garantie limitée d'un an contre tout défaut matériel ou de fabrication.
Compliance Information Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Seite 27
Die FS.COM GmbH erklärt hiermit, dass dieses Gerät mit der Richtlinie 2014/30/EU konform ist. Eine Kopie der EU-Konformitätserklärung nden Sie unter https://www.fs.com/de/company/quality_control.html FS.COM GmbH déclare par la présente que cet appareil est conforme à la Directive 2014/30/UE. Une copie de la Déclaration UE de Conformité est disponible sur https://www.fs.com/fr/company/quality_control.html FS.COM LIMITED...
