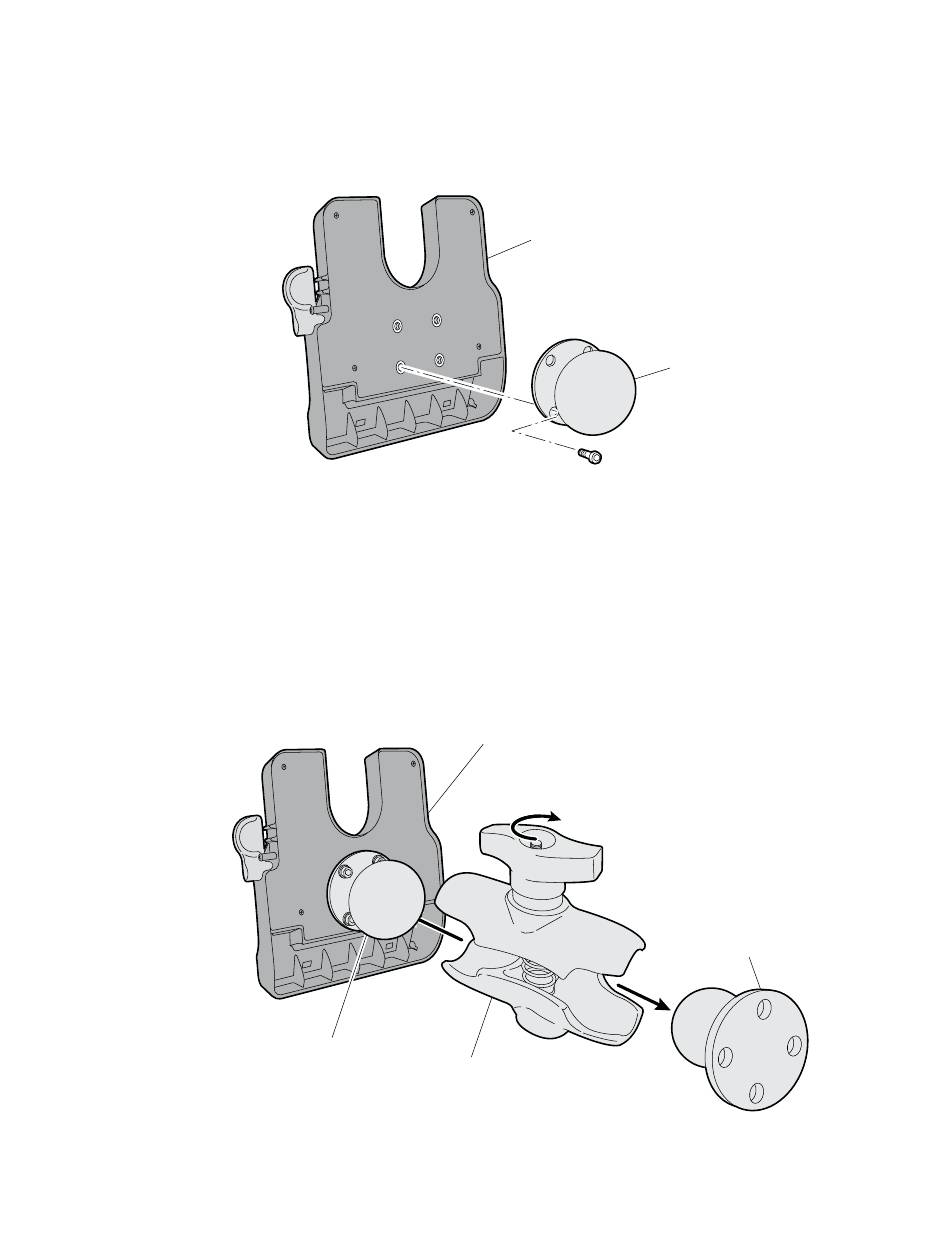

Installing the Vehicle Cradle
1 Attach the RAM cradle base to the vehicle cradle using the
four button head hex screws and the hex key.
2 Attach the RAM vehicle base to your vehicle using the four ¼-
inch-flathead hex screws and nuts.
3 Attach the vehicle cradle to the RAM vehicle base by placing
the mounting arm over the two bases and then tightening
the mounting arm.
Cradle
base
4
All manuals and user guides at all-guides.com
Vehicle
cradle
Mounting arm
Vehicle
cradle
Cradle base
Hex screw
(4 places)
Vehicle
base
