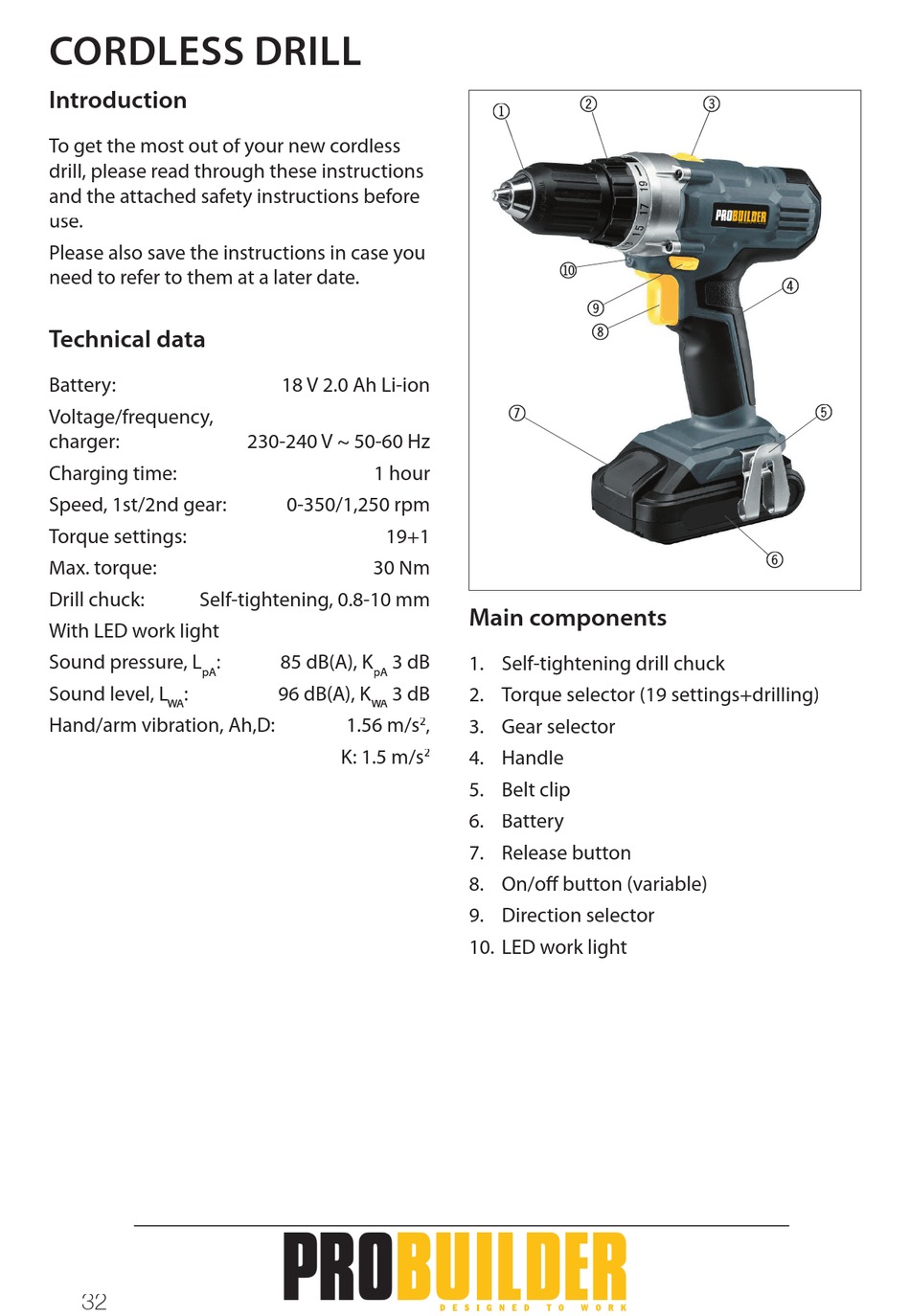

CORDLESS DRILL
Introduction
To get the most out of your new cordless
drill, please read through these instructions
and the attached safety instructions before
use.
Please also save the instructions in case you
need to refer to them at a later date.

Technical data

Battery:
Voltage/frequency,
charger:
Charging time:
Speed, 1st/2nd gear:
Torque settings:
Max. torque:
Drill chuck: Self-tightening, 0.8-10 mm
With LED work light
Sound pressure, L :
pA
Sound level, L : Sound level, L Sound level, L
WA WA
Hand/arm vibration, Ah,D:
32
18 V 2.0 Ah Li-ion
230-240 V ~ 50-60 Hz
1 hour
0-350/1,250 rpm
19+1
30 Nm
85 dB(A), K 3 dB
pA
96 dB(A), K 3 dB
WA
1.56 m/s
K: 1.5 m/s
2 2
1 1
bl bl
9 9
7 7

Main components

1. Self-tightening drill chuck
2. Torque selector (19 settings+drilling)
,
2 3. Gear selector
2 4. Handle
5. Belt clip
6. Battery
7. Release button
8. On/off button (variable)
9. Direction selector
10. LED work light
3 3
8 8
4 4
5 5 5
6 6
