6HUYLFH 0DQXDO
SPECIFICATIONS
Power Source:
220-240V a.c., 50Hz
Power Consumption:
121W
Standby Power
Consumption:
1,4W
Aerial Impedance:
75Ω unbalanced, Coaxial Type
Receiving System:
PAL-B/G, H, D/K, PAL-525/60
SECAM B/G, D/K
M.NTSC
NTSC (AV only)
Receiving Channels:
VHF E2-E12
VHF H1-H2 (ITALY)
VHF A-H (ITALY)
VHF R1-R2
VHF R3-R5
VHF R6-R12
UHF E21-E69
CATV (S01-S05)
CATV S1-S10 (M1-M10)
CATV S11-S20 (U1-U10)
CATV S21-S41 (HYPERBAND)
Intermediate Frequency:
Video
38,9MHz
Sound
33,16MHz, 33,4MHz
32,4MHz (A2 STEREO)
33,05MHz, 34,05MHz (NICAM)
Colour
34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
Video/Audio Terminals:
AUDIO MONITOR OUT
Audio (RCAx2)
AV1 IN
Video (21 pin)
Audio (21 pin)
RGB (21 pin)
AV1 OUT
Video (21 pin)
Audio (21 pin)
AV2 IN
Video (21 pin)
Audio (21 pin)
S-Video IN
(21 pin)
AV2 OUT
Video (21 pin)
Audio (21 pin)
Selectable Output (21 pin)
High Voltage:
28kV ± 1kV
Picture Tube:
A66ECF50X82 66cm
Audio Output:
2 x 15W (Music Power)
8Ω Impedance
Accessories supplied:
Remote Control
2 x R6 (UM3) Batteries
Dimensions:
Height:
596,5mm
Width:
778mm
Depth:
481mm
Net Weight:
32kg
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
NOTE: This Service Manual should be used in conjunction with the
EURO-4H technical guide.
All manuals and user guides at all-guides.com
500mV rms 1kΩ
1V p-p 75Ω
500mV rms 10kΩ
1V p-p 75Ω
500mV rms 1kΩ
1V p-p 75Ω
500mV rms 10kΩ
Y: 1V p-p 75Ω
C: 0,3V p-p 75Ω
1V p-p 75Ω
500mV rms 1kΩ

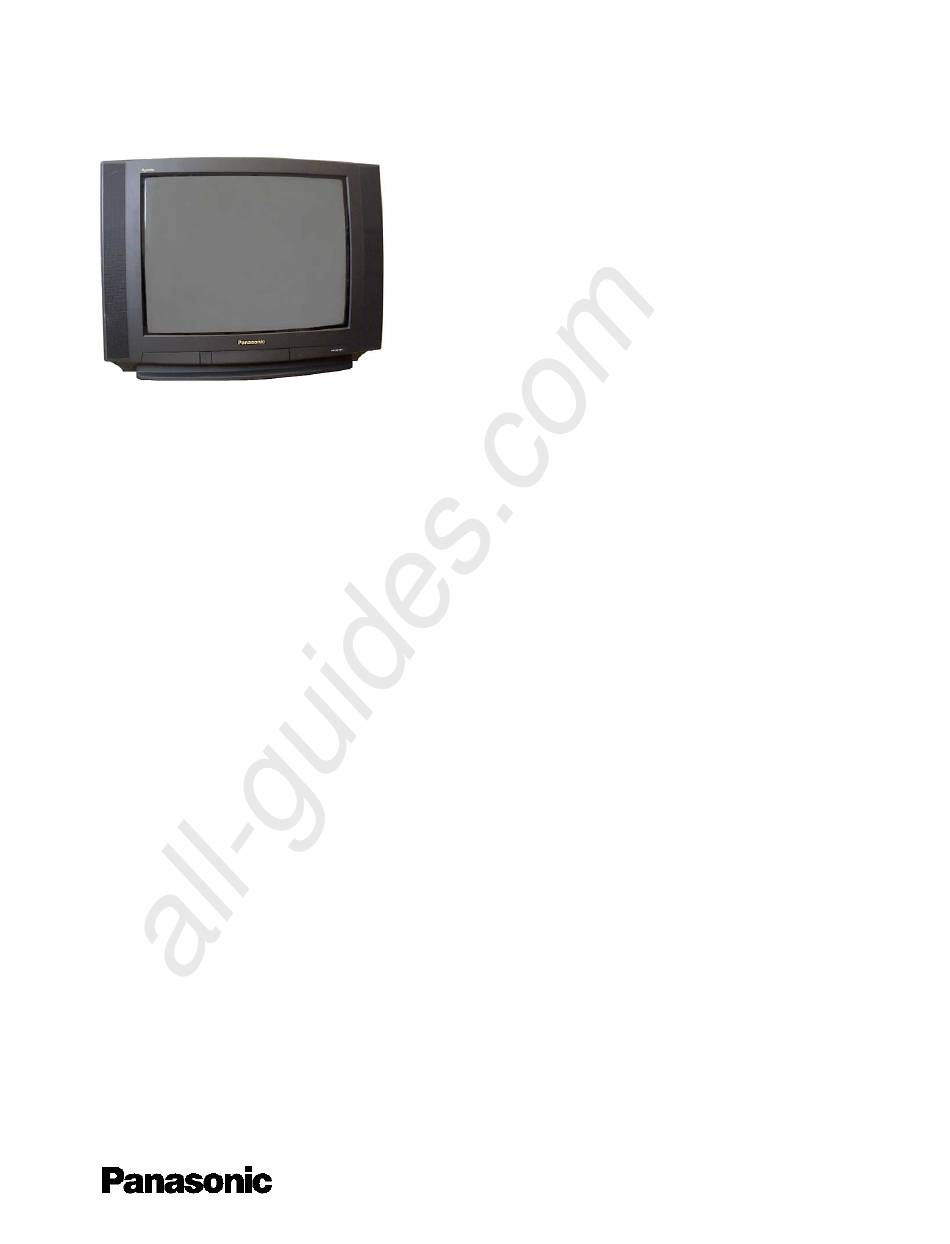

Colour Television
TX-28SL20C
EURO-4H Chassis
TECHNISCHE DATEN
Netzpannung:
220-240V a.c., 50Hz
Leistungsaufnahme:
121W
Standby
Leistungsaufnahme:
1,4W
Antennenimpedanz:
75Ω asymmetrisch, Koaxial-Typ
Empfangssystem:
PAL-B/G, H, D/K, PAL-525/60
SECAM B/G, D/K
M.NTSC
NTSC (nur AV Eingang)
Empfangsbereiche:
VHF E2-E12
VHF H1-H2 (ITALY)
VHF A-H (ITALY)
VHF R1-R2
VHF R3-R5
VHF R6-R12
UHF E21-E69
CATV (S01-S05)
CATV S1-S10 (M1-M10)
CATV S11-S20 (U1-U10)
CATV S21-S41 (HYPERBAND)
Zwischenfrequenz:
Video
38,9MHz
Sound
33,16MHz, 33,4MHz
32,4MHz (A2 STEREO)
33,05MHz, 34,05MHz (NICAM)
Colour
34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
Video/Audio Anschlüsse:
AUDIO MONITOR OUT
Audio (RCAx2)
AV1 EINGANG
Video (21 pin)
Audio (21 pin)
RGB (21 pin)
AV1 AUSGANG
Video (21 pin)
Audio (21 pin)
AV2 EINGANG
Video (21 pin)
Audio (21 pin)
S-Video IN
(21 pin)
AV2 AUSGANG
Video (21 pin)
Audio (21 pin)
Wählbarer Ausgang
Hochspannung:
28kV ± 1kV
Bildrohre:
A66ECF50X82 66cm
Ton Ausgangsleistung:
2 x 15W (Musikleistung)
Lautsprecher
8Ω Impedanz
Mitgel. Zubehör:
Fernbedienung
2 x R6 (UM3) Batterien
Abmessungen:
Höhe:
596,5mm
Breite:
778mm
Tiefe:
481mm
Gewicht:
32kg
Änderungen der Technisichen Daten vorbehalten.
Gewichte und Abmessungen sind Näherungsangaben.
Hinweis: Bitte verwende Sie das Service Manual zusammen mit dem
Technical Guide.
ORDER No. SM-99080
500mV rms 1kΩ
1V p-p 75Ω
500mV rms 10kΩ
1V p-p 75Ω
500mV rms 1kΩ
1V p-p 75Ω
500mV rms 10kΩ
Y: 1V p-p 75Ω
C: 0,3V p-p 75Ω
1V p-p 75Ω
500mV rms 1kΩ
Werbung
Verwandte Anleitungen für Panasonic TX-28SL20C
Inhaltszusammenfassung für Panasonic TX-28SL20C
- Seite 1 All manuals and user guides at all-guides.com ORDER No. SM-99080 6HUYLFH 0DQXDO Colour Television TX-28SL20C EURO-4H Chassis SPECIFICATIONS TECHNISCHE DATEN Power Source: 220-240V a.c., 50Hz Netzpannung: 220-240V a.c., 50Hz Power Consumption: 121W Leistungsaufnahme: 121W Standby Power Standby Consumption: 1,4W Leistungsaufnahme:...
-
