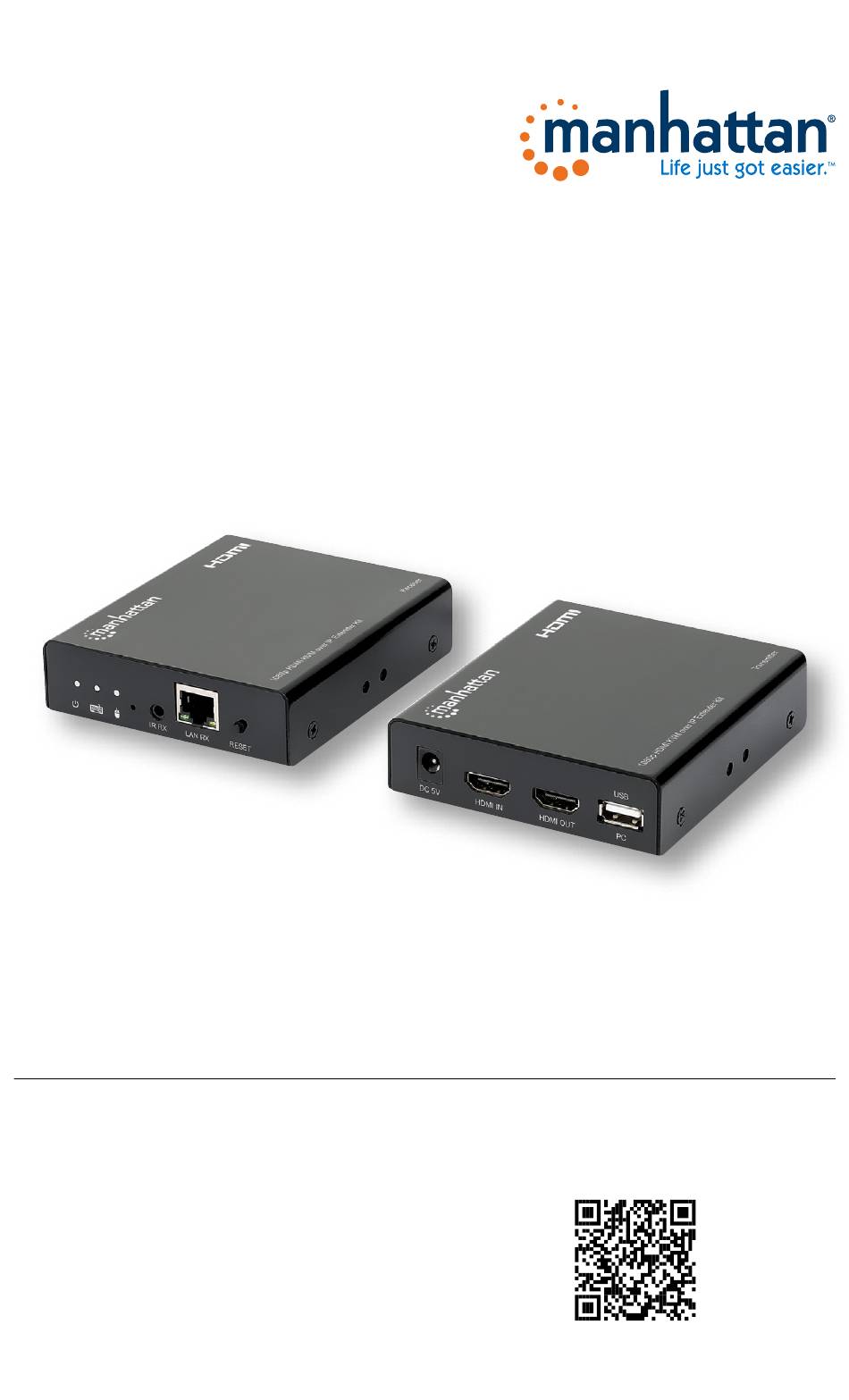

1080p HDMI KVM Over IP Extender Instructions Model 207683 Important: Read before use. • Importante: Leer antes de usar. For additional benefits: Scan to register your product warranty or go to: register.manhattanproducts.com/r/207683...
Seite 2
Instructions The Manhattan 1080p HDMI KVM over The kit includes mounting brackets and IP Extender Kit lets you access any screws to install the units on a wall or computer (or other HDMI source) from ceiling. First, use the screws to fasten the a keyboard, mouse and display up to brackets to the units;...
Seite 3
Instructions TRANSMITTER 1 HDMI IN: Connect input source. to a computer. 2 HDMI OUT (both units): Connect 5 IR TX: Connect IR Transmitter (TX) to output display/projector at send IR remote signal to source; place sender side for loop out and at it in line of sight to source sensor.
Anleitung Mit dem Manhattan 1080p HDMI KVM over Im Lieferumfang sind Montagehalterungen IP Extender Kit können Sie auf jeden und Schrauben für die Wand- oder Computer (oder eine ande re HDMI-Quelle) Deckenmontage der Geräte enthalten. über eine Tastatur, Maus und ein Display Verwenden Sie zunächst die Schrauben,...
Seite 5
Anleitung SENDER 1 HDMI IN: Schließen Sie die USB: leuchtet, wenn eine Verbindung Eingangsquelle an. zu einem Computer besteht. 2 HDMI OUT (beide Geräte): Schließen 5 IR TX: Schließen Sie den IR-Sender (TX) Sie das Ausgabedisplay/den Projektor an, um ein IR-Fernbedienungssignal auf der Senderseite für den Loop an die Quelle zu senden;...
Seite 6
Instrucciones El kit extensor KVM HDMI 1080p a través El kit incluye soportes de montaje y tornillos de IP de Manhattan le permite acceder para instalar las unidades en la pared o a cualquier computadora (u otra fuente el techo. En primer lugar, use los tornillos HDMI) desde un teclado, ratón y pantalla...
Seite 7
Instrucciones TRANSMISOR 1 HDMI IN (entrada de señal HDMI): 5 IR TX (transmisor infrarrojo): conéctelo conecte la fuente de entrada. para enviar la señal remota infrarroja a la fuente; colóquelo en la línea 2 HDMI OUT (salida de señal HDMI; de visión del sensor de la fuente.
Seite 8
Instructions Le kit d’extension Manhattan HDMI Le kit comprend des supports de montage 1080p KVM sur IP vous permet d’accéder et des vis pour installer les unités sur à n’importe quel ordinateur (ou autre un mur ou un plafond. Tout d’abord, source HDMI) à...
Seite 9
Instructions ÉMETTEUR 1 HDMI IN : Connectez la source d’entrée. 5 IR TX : connectez l’émetteur IR (TX) pour envoyer le signal IR à distance 2 HDMI OUT (les deux unités) : connectez à la source ; placez-le dans la ligne la sortie écran/projecteur du côté...
Seite 10
Instrukcje Zestaw przedłużacza Manhattan 1080p Zestaw zawiera wsporniki montażowe HDMI KVM over IP zapewnia dostęp do i wkręty do instalacji urządzeń na dowolnego komputera (lub innego źródła ścianie lub suficie. Najpierw należy HDMI) z klawiatury, myszy i wyświetlaczem użyć wkrętów do przymocowania z odległości do 120 m.
Seite 11
Instrukcje NADAJNIK 1 HDMI IN: podłącz źródło 5 IR TX: podłącz nadajnik IR (TX), aby sygnału wejściowego. wysłać zdalny sygnał IR do źródła; umieść go w linii wzroku czujnika źródła. 2 HDMI OUT (oba urządzenia): podłącz wyświetlacz/projektor wyjściowy po 6 LAN TX / LAN RX: użyj kabla Cat6, aby stronie nadajnika dla wyjścia pętli i po połączyć...
Seite 12
Istruzioni L’estensore KVM HDMI over IP Manhattan Il kit include staffe di montaggio e viti 1080p ti permette di accedere a qualsiasi per installare le unità su una parete o un computer (o altra sorgente HDMI) da una soffitto. Innanzitutto, usare le viti per tastiera, un mouse e uno schermo fino a fissare le staffe alle unità;...
Seite 13
Istruzioni TRASMETTITORE 1 HDMI IN: Collegare la 5 IR TX: Collegare il trasmettitore IR sorgente d’ingresso. (TX) per inviare il segnale remoto IR alla sorgente; posizionarlo in linea di 2 HDMI OUT (entrambe le unità): vista con il sensore della sorgente. Collegare il display/proiettore in uscita 6 LAN TX / LAN RX: Usare il cavo Cat6 sul lato mittente per il loop out e sul...
Seite 14
WARRANTY • GARANTIEINFORMATIONEN • GARANTÍA • GARANTIE • GWARANCJI • GARANZIA manhattanproducts.com EN MÉXICO: Póliza de Garantía Manhattan — Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P.
Seite 15
POLSKI zgodności dostępna jest na stronie internetowej producenta: ITALIANO : Questo dispositivo è conforme alla CE 2014/30/EU e / o 2014/35/EU. La dichiarazione di conformità è disponibile al: support.manhattanproducts.com/barcode/207683 North & South America Asia & Africa Europe IC Intracom Americas...
