ATOMSTACK M50 Installationsanleitung Seite 8

①

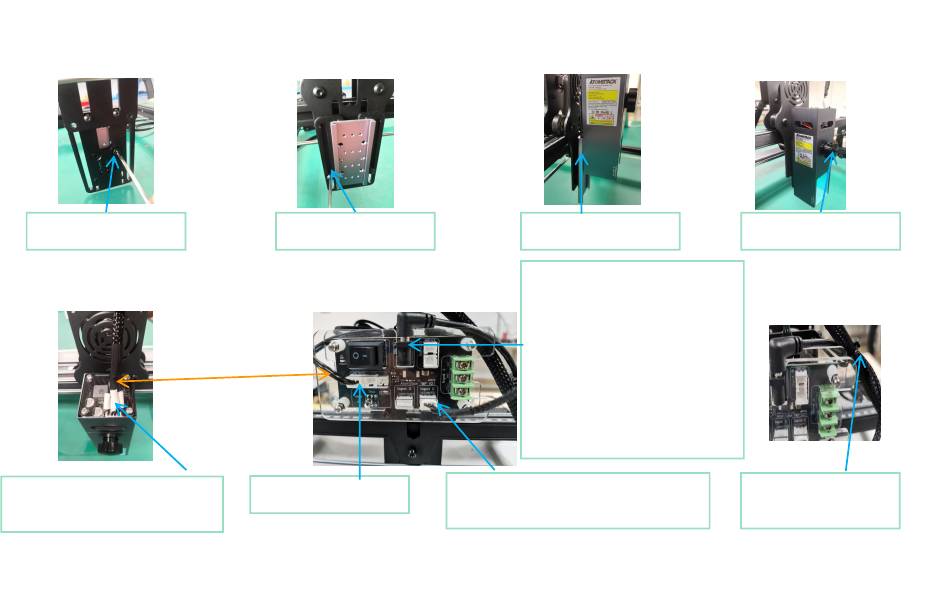

①.Install the slider
screw and tighten it
⑤
⑤. Connect the 3 pin signal from
the switch board and insert the 4
pin port of the laser
When working, first loosen the lock nut, then move the laser up and down to an appropriate height(the distance
from the fixed focus of the object to be engraved),and then lock the lock nut,and the laser preparation is complete.
P a r t 5 : i n s t a l l a t i o n s t e p s
②
②.Tighten the slide rail
locking screws
⑥
⑥.1. Insert 3PIN signal
output terminal
③
③.Insert the laser into
the slider
⑥.2 Auxiliary power supply: It is
recommended that the power
adapter below 12V3A should be
plugged into the auxiliary power
supply, and the auxiliary power supply
is not required for 12V 3A (inclusive)
and above. Of course, this may be
different depending on the specific
model, as long as the laser power can
reach the maximum output power,
there is no need for an external
auxiliary power supply
⑥.3. According to the number of input
signals, insert the corresponding input
terminals (see Part 4 for details)
④
④.Tighten the laser lock
nut
⑦
⑦.Fix the 3PIN signal
output line with a cable
tie
