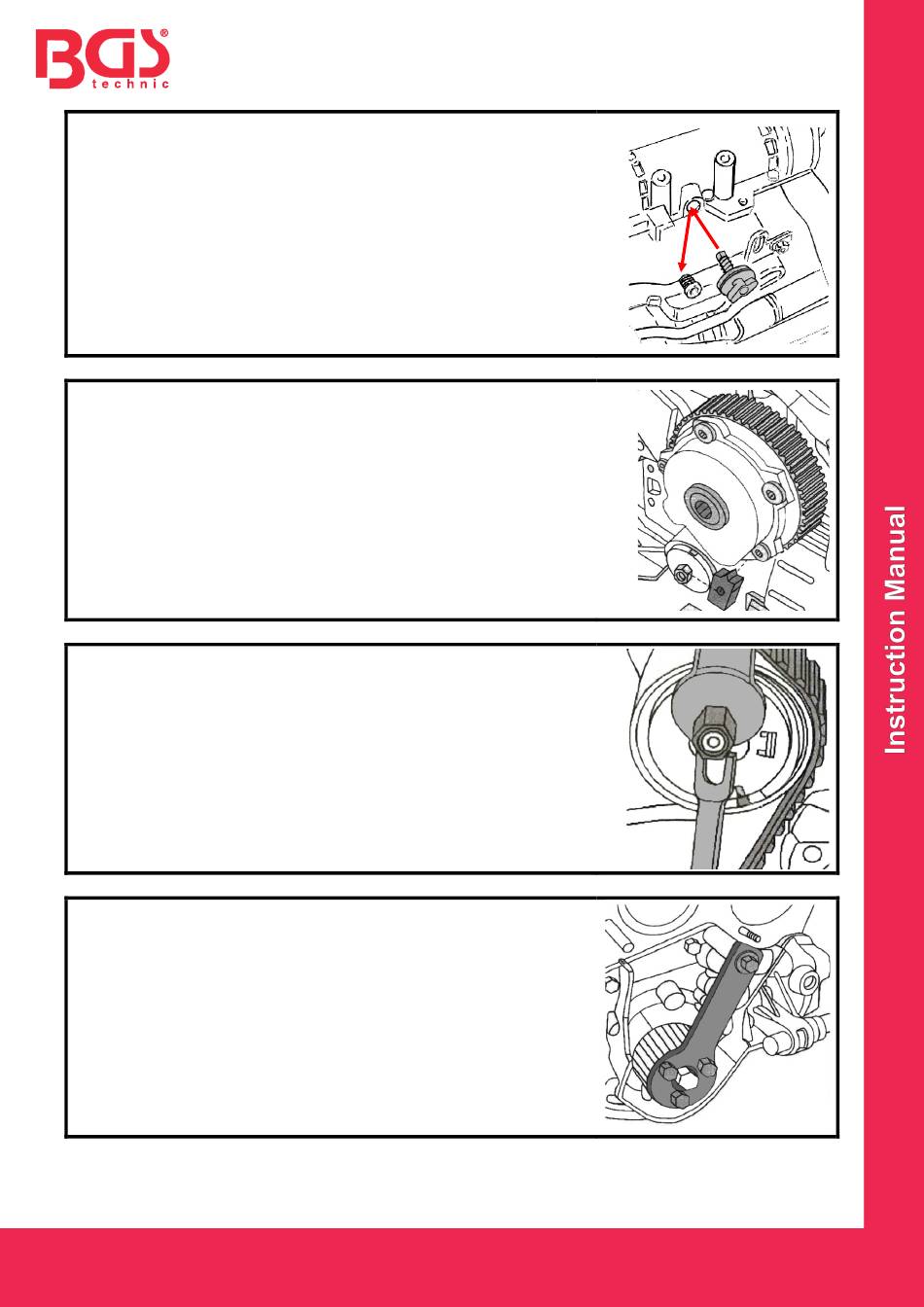

Camshaft setting tool
Screw the tools into the access holes in the
the 'timing slots' in the camshafts to retain 'timed' position.
Camshaft locking tool
For engine codes 192B2.000, 198A1.000, 198A4.000, 199A6.000,
199A8.000, 169A3.000.
The Locking Tool is required to counter hold the camshaft sprocket /
VVT unit when loosening / tightening the sprocket.
Tensioner adjusting tool
Adjusting Tool is located into the two holes in the belt tensioner which
is turned to apply tension to the belt.
Crankshaft locking tool
Crankshaft Locking Tool mounted on crankshaft gear
3 bolts and fixed it to the engine block as shown.
BGS technic KG
Bandwirkerstr. 3
D-42929 Wermelskirchen
cylinder head and enter
in place with the
