[EN] Included in delivery
1 × Allen key
„
Wall plug and Screw (1 piece each per sidebar/intermediate bar)
„
Hexagon screws ( number of screws in accordance with height of
„
SCALA and with number of installation parts)
2 × Fixing brackets for each shelf/box, lacquered in the colour
„
of shelf/box
1.
2
2.
1
3 .
4 .
04
1
Distance of drill holes
Attention:
For transport the fixing brackets are mounted under the box/shelf.
For assembling SCALA the brackets have to be removed first.

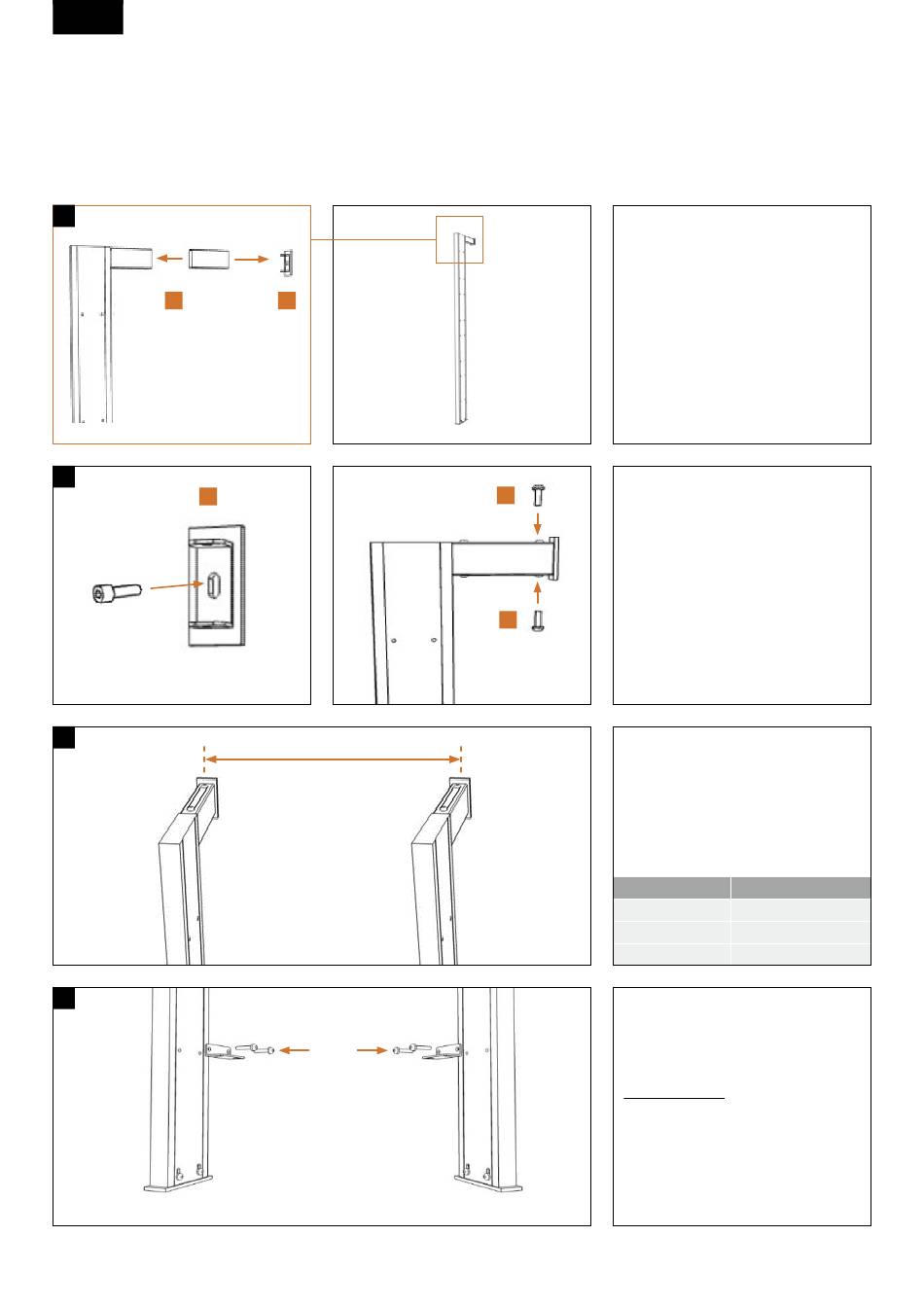

Position sidebar:
Plug sidebar and wall fixing parts (1 - 2)
together to define position of wall
connection (1).
Wall mounting of sidebar:
2
Fix wall connection part (1) to the wall
using plug and screw.
Screw together sidebar and telescopic
wall fixing parts (2 - 3).
3
Wall mounting of second sidebar
(or intermediate bar):
Define position of second wall connec-
tion as described in step 1. - 2. According
to width of installation parts consider the
differnt distance of drill holes.
Width of shelf/box
All fixing brackets are lacquered accord-
ing to the colour of the shelf/box. Screw
the apropriate fixing brackets at the re-
quired positions onto both sidebars and
tighten them firmly.
Distance of drill holes
60 cm
62,4 cm
90 cm
92,4 cm
120 cm
122,4 cm
