User Manual Ringerbox RB-10
The Ringerbox is an auxiliary ringer Version for Germany.
Table of Contents
1. General Information
2. Safety Instructions
3. In the Box
4. Controls
5. Cable operation
6. Wall mounting
7. General Notes
8. Troubleshooting
9. Notes/Settings
1. General Information
The RB-10 Ringerbox acts as a second telephone bell,
a so-called auxiliary ringer, for an analog telephone
connection.
Power is supplied via the telephone network which
means that no batteries or external power units are
required.
Three tunes are available.
An LED lights when a ring signal is received, even if the
volume selection switch is set to "OFF".
The unit is operated via two sliding switches at the
sides of the RB-10. It can also be wall-mounted.
Make sure to familiarise yourself with all functions of
the Ringerbox before connecting it.
Note When disconnecting the RB-10, first remove the
TAE-N connector of the RB-10 cable from the TAE
socket. Otherwise telephones etc. connected in series
will not ring.
2. Safety Instructions
The Ringerbox is intended for use in dry areas only.
Only use it as described in this manual.
The Ringerbox may not be modified. The unit switch
does not contain any parts that need servicing.
Do not use the unit if the cable or casing is damaged
or if liquid enters the Ringerbox. Contact Hama service
for all other errors.
3. In the Box
- Ringerbox RB-10
- Connecting cable with RJ-11 and TAE-N connectors
(length approx. 25cm)
- Operating Instructions
- Set of screws and rawl plugs
13:24 Uhr Seite 6
4. Controls
Selection switch for the ring tune on the left, marked
"1", "2" and "3".
Selection switch for the volume on the right, marked
"H", "L" and "OFF".
Slide the tune selection switch to position "1", "2" or
"3" to select the tune of your choice.
Slide the volume selection switch to position "L" for
low, to position "H" for high or to "OFF" to deactivate
the ring tune.
The LED on the front of the RB-10 always lights when a
ring signal is received, even if the volume selection
switch is set to "OFF"!
5. Cable operation (via supplied TAE-N cable)

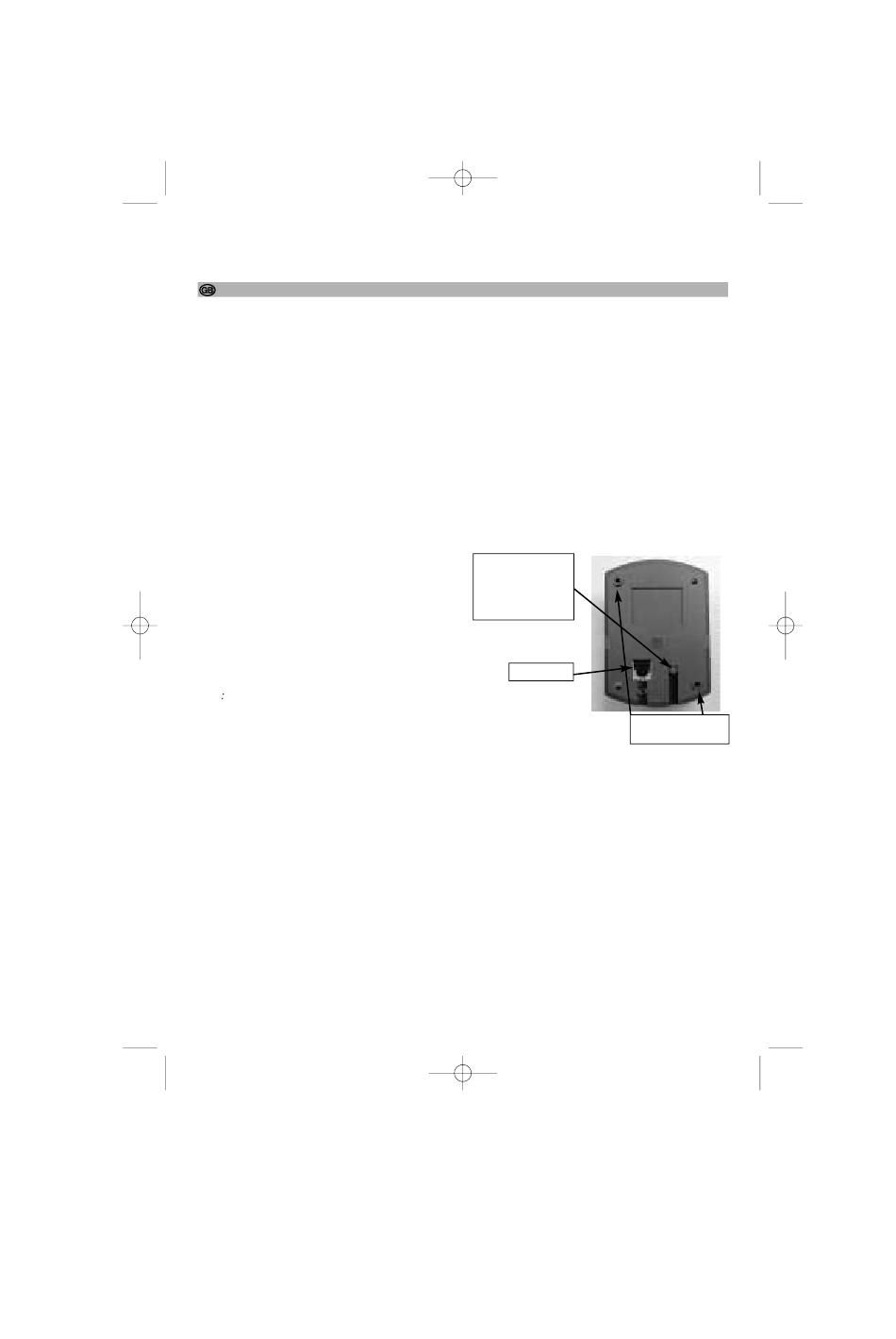

Leadthrough for alter-
native connection opti-
on to internal screw
terminals (may only be
connected by qualified
technicians!)
RJ-11 terminal
Insert the RJ-11 connector of the supplied cable into
the RJ-11 terminal on the base of the RB-10 and the
TAE-N connector into the left terminal of your TAE
connection socket. If the supplied cable is not long
enough, purchase a corresponding extension cable (4-
pin, the cable may not be round). It must be 4-pin,
otherwise terminal devices connected in series after it
will not ring.
6. Wall mounting (by qualified technicians only)
Carefully remove the screw cover
(e.g. with a small screwdriver). Loosen the screw using
an appropriate Philips screwdriver. The screw is
secured to prevent it falling out.
Then remove the upper section carefully, by holding the
sides with your left hand and pressing the inner section
out by pushing the switch.
4
Holes for wall-
mounting screws
