- Seite 1 KURZANLEITUNG TT LINIE QUICK REFERENCE GUIDE TT LINE Frequenz-Messbereich f: 1-600 Hz Frequency measuring range f: 1–600 Hz TT DATA TT RFID...
-
Seite 2: Sicherheitshinweise

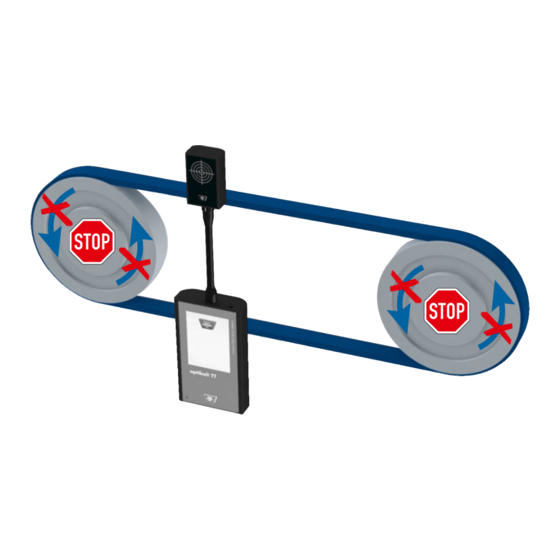

Before beginning of any maintenance- and setting-up work, make sure that all machine components are in a safety position and that they cannot be changed during maintenance- and setting-up work. THE SAFETY INSTRUCTIONS OF THE MACHINE MANUFACTURER MUST BE OBSERVED! www.optibelt.com 2 | 8 © ARNTZ OPTIBELT GROUP, GERMANY... - Seite 3 SICHERHEITSHINWEISE SAFETY INSTRUCTIONS www.optibelt.com 3 | 8 © ARNTZ OPTIBELT GROUP, GERMANY...
- Seite 4 INHALT CONTENT Kurzanleitung Quick Reference Guide Abnahmeprüfzeugnis Inspection Certificate optibelt TT DATA, optibelt TT RFID Bedienungsanleitung siehe: www.optibelt.com Reference Guide see: www.optibelt.com www.optibelt.com 4 | 8 © ARNTZ OPTIBELT GROUP, GERMANY...
- Seite 5 SWITCH ON / OFF & CHARGING USB 5 V ON: 1 s 220/230 V 110 V OFF: 3 s DISPLAY RESET: 0.1 s AUTO STANDBY: 30 s AUTO OFF: 5 min www.optibelt.com 5 | 8 © ARNTZ OPTIBELT GROUP, GERMANY...
- Seite 6 AC, f: 1–16 Hz EM, f: 6–600 Hz Belt Rapid Move EM 0 Ready Belt Belt Belt Ready AC 1 Ready EM 1 Belt Belt Measuring AC 2 Measuring EM 2 www.optibelt.com 6 | 8 © ARNTZ OPTIBELT GROUP, GERMANY...
- Seite 7 AC-MESSUNG, f: 1–16 Hz, BESCHLEUNIGUNG AC MEASUREMENT, f: 1–16 Hz, ACCELERATION AC 2 AC 1 f [Hz] www.optibelt.com 7 | 8 © ARNTZ OPTIBELT GROUP, GERMANY...
- Seite 8 EM-MESSUNG, f: 6–600 Hz, ELEKTROMAGNETISCH, NICHT SICHTBAR EM MEASUREMENT, f: 6–600 Hz, ELECTROMAGNETICAL, NOT VISIBLE EM 2 EM 1 belt 10 – 100 mm 50 mm AUSRICHT-LED ALIGN LED f [Hz] www.optibelt.com 8 | 8 © ARNTZ OPTIBELT GROUP, GERMANY...
