Operating Instructions
RF-DAT-500 Dual antenna for GMS, UMTS, LTE
Item No. 2269151
Intended use
This product is a dual high-performance antenna for 2G (GSM), 3G (UMTS / HSPA) and
4G networks (LTE) networks, and supports MIMO. It is corrosion and weather-proof (IPX5),
features surge protection and is easy to install.
For safety and approval purposes, you must not rebuild and/or modify this product. If you
use the product for purposes other than those described, the product may be damaged. In
addition, improper use can result in short circuits, fires, electric shocks or other hazards. Read
the instructions carefully and store them in a safe place. Make this product available to third
parties only together with its operating instructions.
This product complies with the statutory national and European requirements. All company
names and product names are trademarks of their respective owners. All rights reserved.
Delivery content
• Dual antenna
• Mounting bracket for wall mounting
• 3 x screws
• 2 x Dowels
Up-to-date operating instructions
Download the latest operating instructions at www.conrad.com/downloads or
scan the QR code shown. Follow the instructions on the website.
Explanation of symbols
The symbol with the lightning in the triangle is used if there is a risk to your health,
e.g. due to an electric shock.
The symbol with the exclamation mark in the triangle is used to indicate important
information in these operating instructions. Always read this information carefully.
The arrow symbol indicates special information and advice on operation.
Safety instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information on
proper handling in this manual, we assume no liability for any resulting
personal injury or damage to property. Such cases will invalidate the warranty/
guarantee.
a) General information
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave the packaging material lying around carelessly. This may become
dangerous playing material for children.
• Protect the appliance from extreme temperatures, direct sunlight, strong jolts,
high humidity, moisture, flammable gases, steam, and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of operation and
protect it from any accidental use. Safe operation can no longer be guaranteed
if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions, or
- has been subjected to any serious transport-related stress.
• Please handle the product carefully. Jolts, impacts, or a fall, even from a low
height, can cause damage to the product.
• Consult an expert when in doubt about the operation, safety, or connection of
the appliance.
• Maintenance, modifications, and repairs must only be completed by a technician
or an authorised repair centre.
• If you have questions that remain unanswered by these operating instructions,
contact our technical support service or other technical personnel.
• 3 x washers
• 1 x Nut
• Operating instructions
Caution:
• To avoid damaging the components, do not attempt to open or repair the PCB
without professional guidance.
• The operating range may be affected by environmental factors and nearby
sources of interference.
• Proper use helps to prolong the lifespan of the product.
b) Connected devices
Also observe the safety and operating instructions of any other devices which are
connected to the product.
Features
• MIMO Antenna with two 5-meter cables
• Supports SMA/CRC9/TS-9 connectors
• Improves mobile hotspot antenna efficiency by up to 50%
• Covers a wide band spectrum of 700-2600 MHz
• Can be placed on desktop or wall mounted
• Easy to install, set up and use – no software required
• Improves performance in areas with poor 3G/4G signal

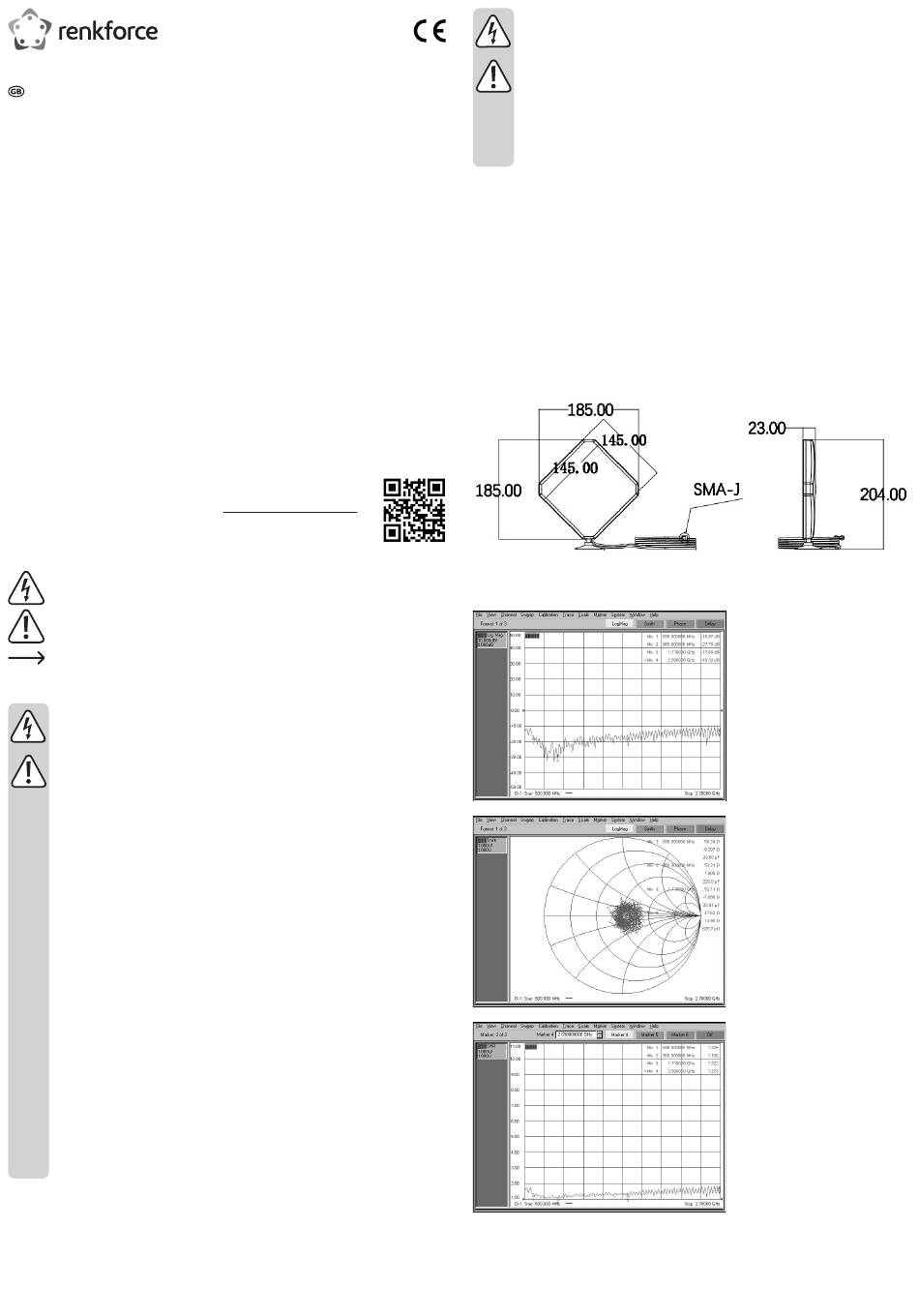

Antenna Dimensions
Antenna Performance
mm
Return Loss
Smith Chart
VSWR
