NEA - ICU Montage- und Betriebsanleitung
Technische Daten NE4/2-SKÜ-Modul.1:
Nennspannung UN:
Adressbereich:
Max. Ausgangsstrom:
Max. Einschaltstoßstrom: 80A / 500ms je Stromkreis
Meßgenauigkeit:
Allgemeine Daten
Temp.-Bereich:
Schutzart:
Gehäuse:
Leiteranschluss:
Verlustleistung:
Funkentstörung:
16
All manuals and user guides at all-guides.com
230V 50/60Hz
0 - 96 (+1, +2,+3) Viererblöcke
2 x bis max. 1,5A
2 x bis max. 300mA
± 2,5% auf Meßbereichs-Endwert
Meßbereich bis 2,5A
Meßbereich bis 0,4A
-15°C bis +40°C
IP 20
Kunststoff DIN-Schienengehäuse
Doppelbelegungsklemme
2,5mm² eindrähtig oder
1,5mm²Litze mit Aderendhülse
9,5 Watt (ohne Verbraucher) / 10W
(Volllast)
EN 55015
140 mm

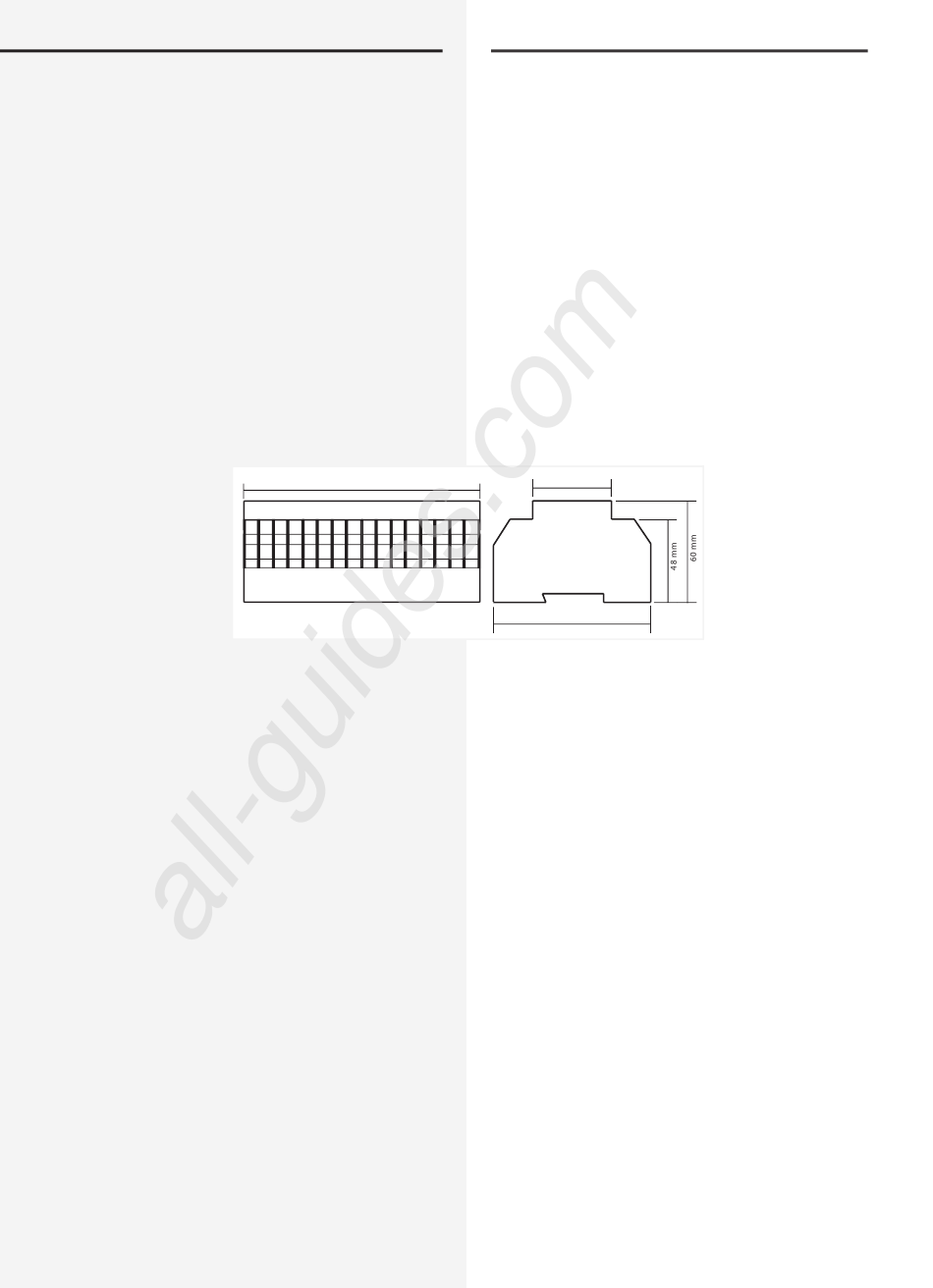

NEA - ICU Mounting and Operating Instructions
Technical specifications NE4/2-SKÜ module.1:
Rated voltage UN:
Address range:
Max. output current:
Max. inrush current:
Measuring accuracy:
General specifications
Temp. range:
Protection category:
Housing:
Ground wire connection:
Power loss:
EMC protection:
45 mm
90 mm
230V 50/60Hz
0 - 96 (+1, +2,+3) blocks of four
2 x to max. 1.5A
2 x to max. 300mA
80A / 500ms per circuit
± 2.5% relative to range end value
Measuring range up to 2.5A
Measuring range up to 0.4A
-15°C – +40°C
IP 20
Plastic DIN rail housing
Twin terminal
2.5mm² solid-core or
1.5mm² stranded with cable end
sleeve
9.5W (without consumers) / 10W
(fully loaded)
EN 55015
