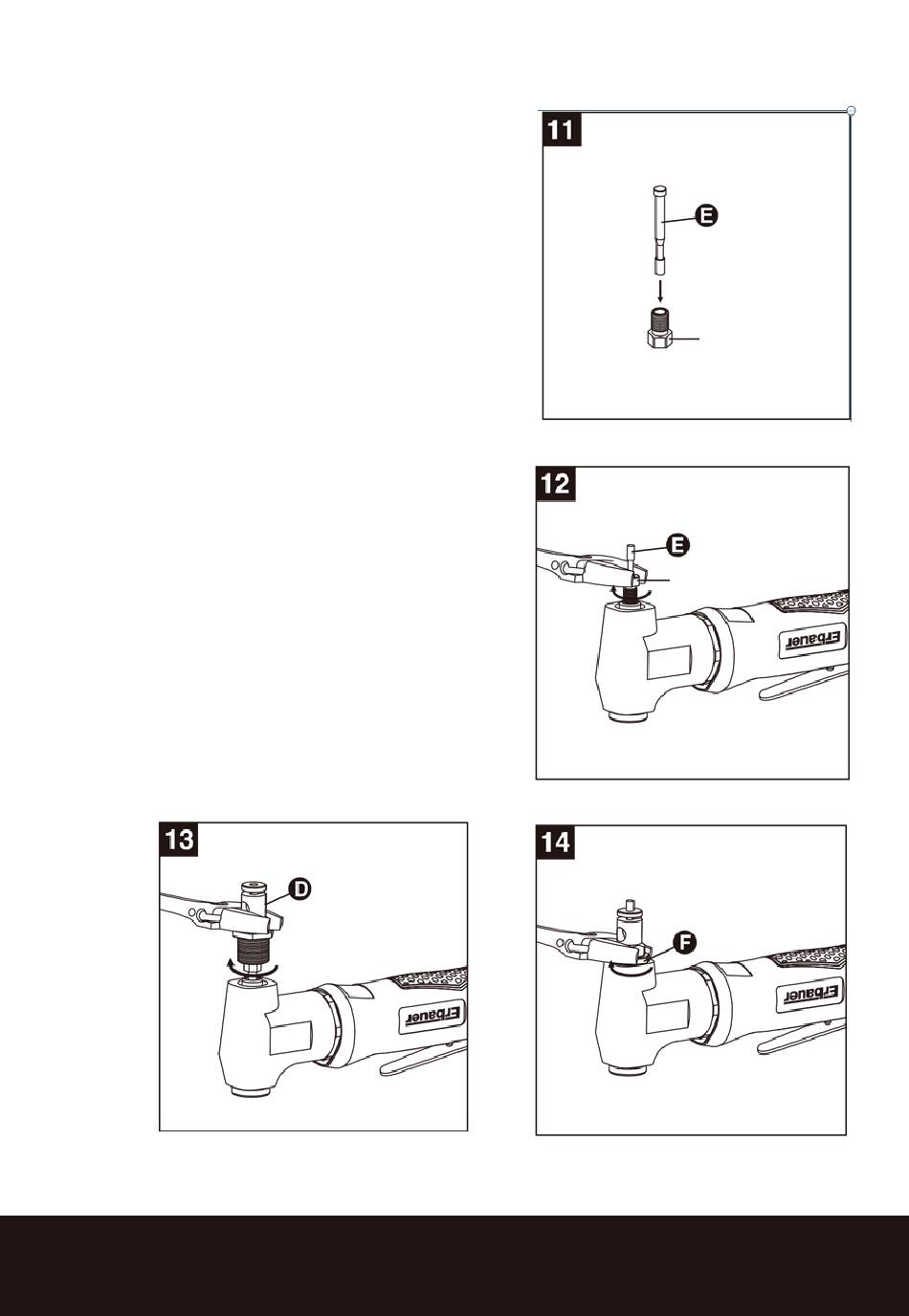

5. Replace a new blade (E) into the blade base
(Part #34). (See Figure 11)
6.Re-stall the blade base (Part #34) into position and
tighten it secure with the
7.Replace a new die (D) if necessary and screw it
into position tight and secure with the wrench.
(See Figure 13)
8.Re-tighten the fixing nut (F) securely with the
wrench. (See Figure 14)
wrench. (See Figure 12)
AIR NIBBLER
blade base
blade base
