Passendes Zubehör - Fuehlersysteme Raf(H)/A Betriebsanleitung

Material Schutzrohr: Edelstahl V2A
Abmessungen Gehäuse: L 89 x B 80 x H 47 mm, Schutzrohr: Ø 16 x 60 mm
Schutzart Gehäuse/Elektronik: IP65, Sensor: IP30
Schutzklasse III
Arbeitsbereich r.F. 0...98% r.F. in schadstoff freier, nicht kondensierender Luft
Betriebstemperatur Fühler: -20...+80°C, Elektronik: -20...+70°C
Lagertemperatur -20...+50°C
Montage Schraubbefestigung
Zertifi kat Werkskalibrierschein mit Rückführbarkeit auf ein staatliches Normal
Zulassungen CE, EAC, RoHS
Technical Specifications
EN
Measurement range r.H. 0-100% r.H.
Accuracy ±2% r.H. (30%...70% r.H., else ±3% r.H. at 20°C)
Temperature dependency ±0,02% r.H. / K (voltage output), ±0,04% r.H. / K (current output)
Long term stability ±1%/year
Sensor capacitive humidity sensor
Sensor protection screwable stainless steel sinter fi lter, condensation protection by heating
function in the range of 95...99% r.H.
Flow rate < 2 m/s
Supply voltage analog 0-10 V 24 V AC/DC (±5%)
Supply voltage analog 4-20 15...36 V DC (Ubmin = 15 V + RLoad*0,02A)
mA
Current consumption at 0-10 typ. 10 mA, 30 mA peak current consumption for 50 ms at switching mo-
V ment at option relay
Current consumption at 4-20 max. 20 mA / output, 40 mA peak current consumption for 50 ms at swit-
mA ching moment at option relay
Analogue output 0-10 V 3-wire connection, load current < 0,1 mA
Analogue output 4-20 mA 2-wire connection (transmitter), max. RLoad(Ohm) = (+Ub - 15 V) / 0,02 A
Alarm output 1 x potential-free change-over contact, 48 V, 1 A
Switching Hysteresis Relay 2% of the selected scaling (without display), 0,5...5% of the selected scaling
adjustable (with display)
Electrical connection screw terminals max. 1,5 mm²
Housing Polycarbonate PC UL 94 V0 with hinge locks, color signal white similar to
RAL 9003
Cable gland PG11 high-strength cable gland with strain relief
Display optional LCD display with backlight on/off /auto
Material Protection tube: stainless steel V2A
Dimensions Housing: L 89 x W 80 x H 47 mm, Protection tube: Ø 16 x 60 mm
Protection type Housing/electronic: IP65, Sensor: IP30
Protection class III
Working range r.H. 0...98% r.H. in contaminant-free, non-condensing air
Working temperature Probe: -20...+80°C, Electronic: -20...+70°C
Storage temperature -20...+50°C
Installation screw fastening
Certifi cate industrial calibration certifi cate with reference to national standard
Approvals CE, EAC, RoHS
FuehlerSysteme eNET International GmbH
6
Röthensteig 11 90408 Nürnberg
Passendes Zubehör
D
SB/E-03

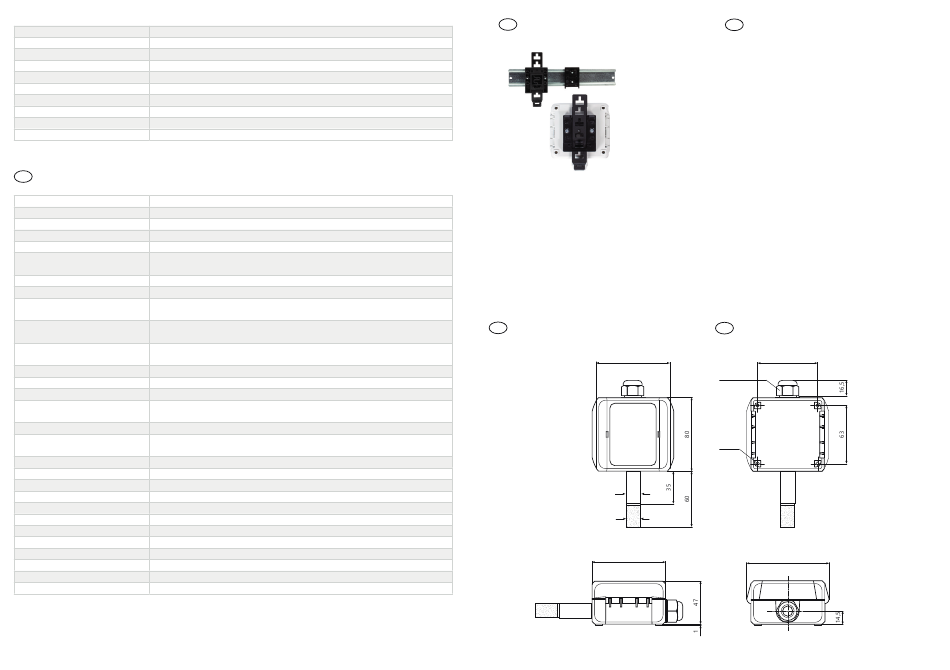

Schnappbefestigung für Trageschienen
Snap-on mounting for DIN rails
Masszeichnung
D
80
Ø 16
Ø 15
80
Support: +49 1805 85 85 11*
( (
Suitable accessories
EN
Measurement drawing
EN
65
PG11 / SW22
Ø 4,25
89
www.fuehlersysteme.de/support/docs
ü ü
7
