8.

Set up / installation

Observe the national safety and accident prevention regulations and the following safety instructions
in the operating instructions.
/
Installation location is exclusively in the protected interior area.
/
The installation location must always be easily accessible.
/

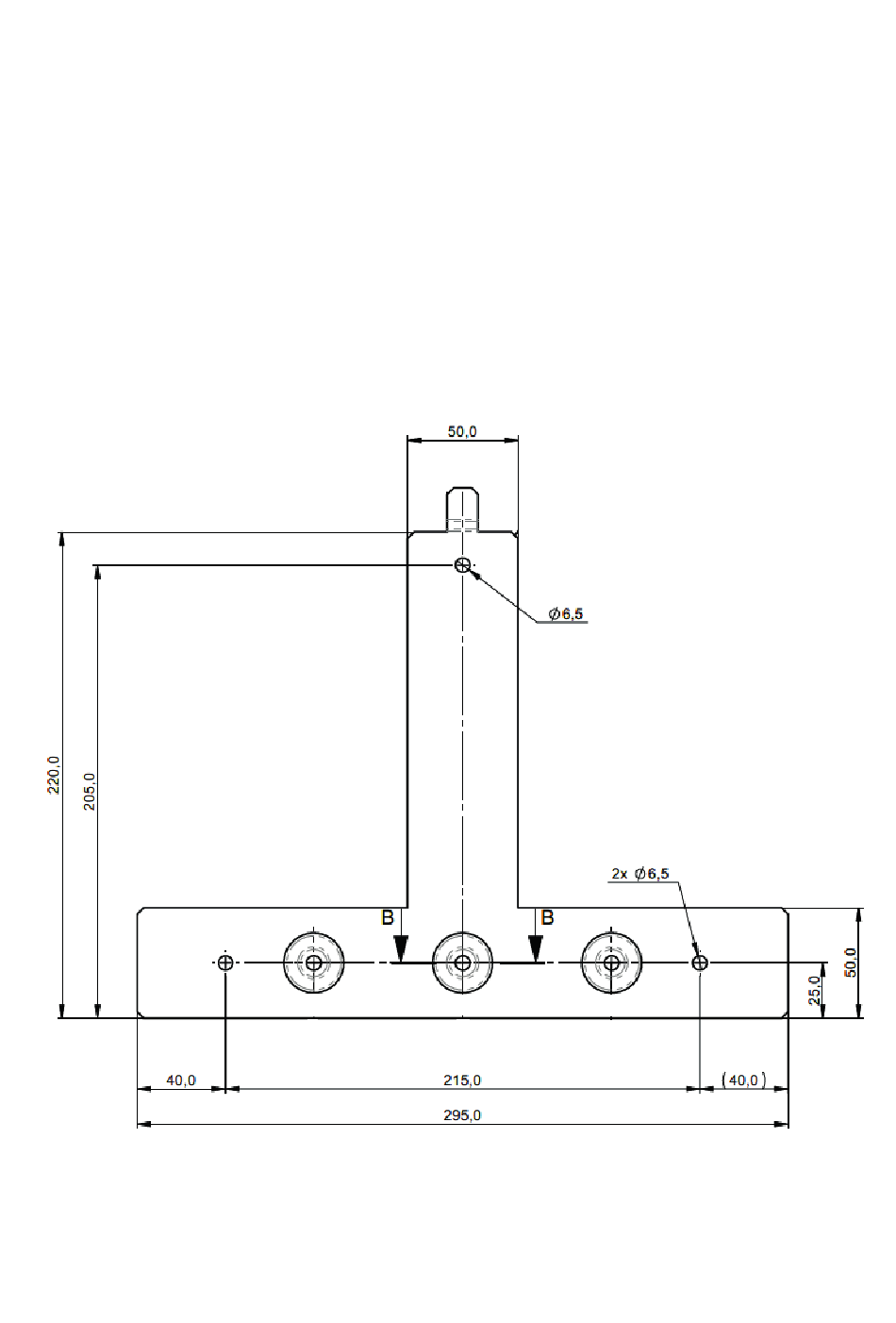

Fasten the mounting plate to the mounting surface with three screws
/
The substrate must be firm, level, and free of dirt. Distances to corners, or other units etc.
must be at least 5 cm. At the left side keep a distance of approx. 15 cm to keep the sockets
accessible.
/
Mounting height; easiest to operate at a height of approx. 1.6 meters.
NOTE!
The mounting bracket for the control panel is included in the scope of delivery.
31
