Filter exchange
a) Switch off the Fine Dust Cube or remove the mains plug.
b) Open the lid with both snap locks.
c) You can now remove the filter by carefully pulling it out
or insert the filter by carefully inserting it into the guide
without jamming. When inserting, pay attention to the
direction of flow indicated on the filter

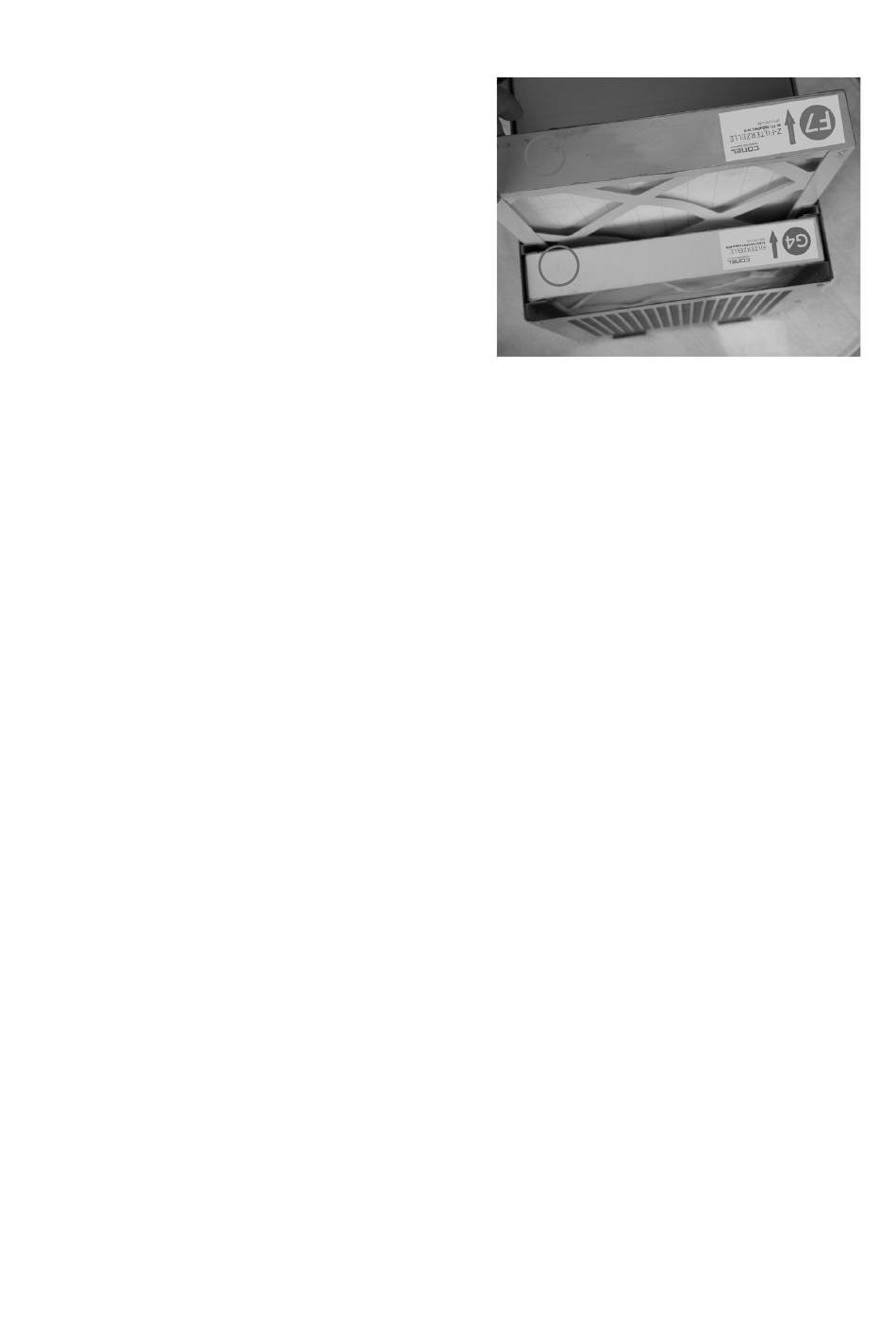

The coarse air filter, type G4, should always be used in position (1), the fine air filter, type F7, should
always be used in position (2).
In exhaust air operation only the coarse air filter, type G4, should be used, both air filters must always be
used in recirculation mode.
TECHNICAL DATA
Fine Dust Cube:
Dimensions:
Weight:
Can be used for room sizes up to approx. 40 m
Air circulation in a 40m
Air circulation in a 10m
Fan:
Volume flow:
Operating voltage:
Performance:
Speed:
Volume:
Exhaust hose:
Dimensions:
300 x 300 x 300 mm
5,3 kg
room: in approx. 10 min
2
2
room: in approx. 3 min
810 m³/h
230 VAC
max. 106 W
max. 4460 U/min
max. 76 dBA
Diameter 25cm (16 inches) x 5m extended
Diameter 25cm (16 inches) x approx. 40 cm folded
2
1
2
