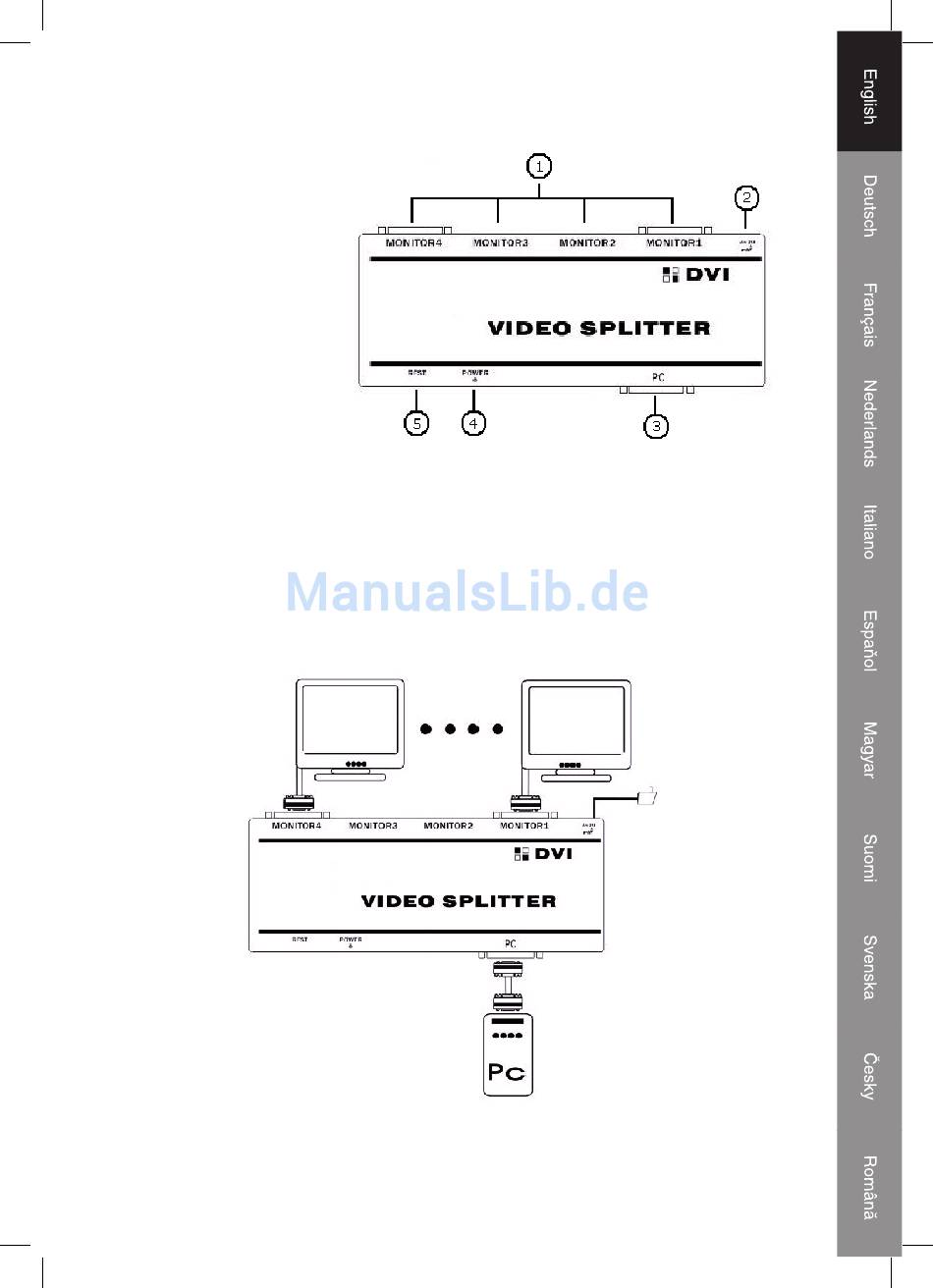

CMP-SPLITDVI20
1) 4x DVI Output
connection
2) DC5V power adapter
connection
3) DVI Input connection
4) Power LED
5) Reset button
Connections en Operation:
Before installation, please make sure all devices you wish to connect have been turned
off.
Connect the input sources into splitters (Input cables are optional)
Connect the Monitors into the Output slot in the back of the splitter.
Insert the DC side of 5V power supply into the converter and then connect the AC side
of the power supply into the wall outlet
3
