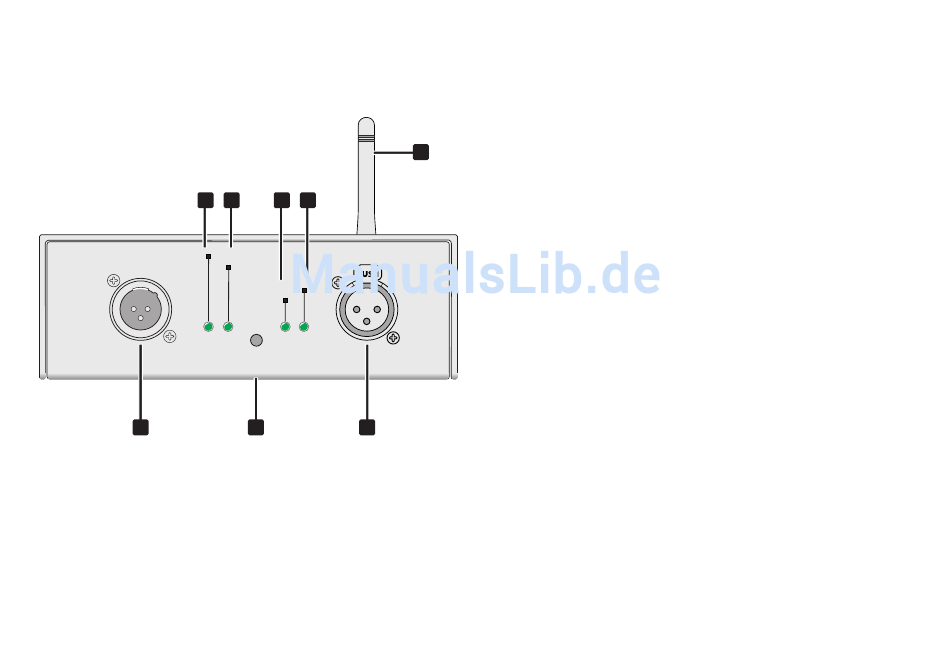

Connections and controls

4
DMX IN
1
14 English
5 6 7
DMX OUT
DMX ACTIVE/SIGNAL
ACCESSPOINT
ACTIVE
APP CONNECTED
NET ACTIVE
CONNECTIVITY
PUSH - ACCESSPOINT ACTIVE/DEACTIVE
PUSH 10 sec. - FACTORY RESET
2 3
1 DMX512 input
Connects a DMX console for DMX input
a WiFi signal
2 DMX512 output
8
Connects DMX-controlled fixtures such as LED spot
lights and moving heads
3 Recessed CONNECTIVITY button
• Press shortly to activate/deactivate access point
mode
• Press approx. 10 seconds to reset to default settings
4 DMX indicator
Indicates the reception of a valid DMX signal
5 Access point indicator
• Lights permanently: access point is activated
and iPad is paired
• Flashes: ready for communication with an iPad
or poor WiFi connection
6 Network indicator
• Lights permanently
• Flashes WLAN connection error :
7 App indicator
• Lights permanently:
• Flashes: poor WiFi connection
8 Antenna
instead of
: network connection active
app communication established
