Gold Note MkII RED Bedienungsanleitung Seite 2

5mm
18mm

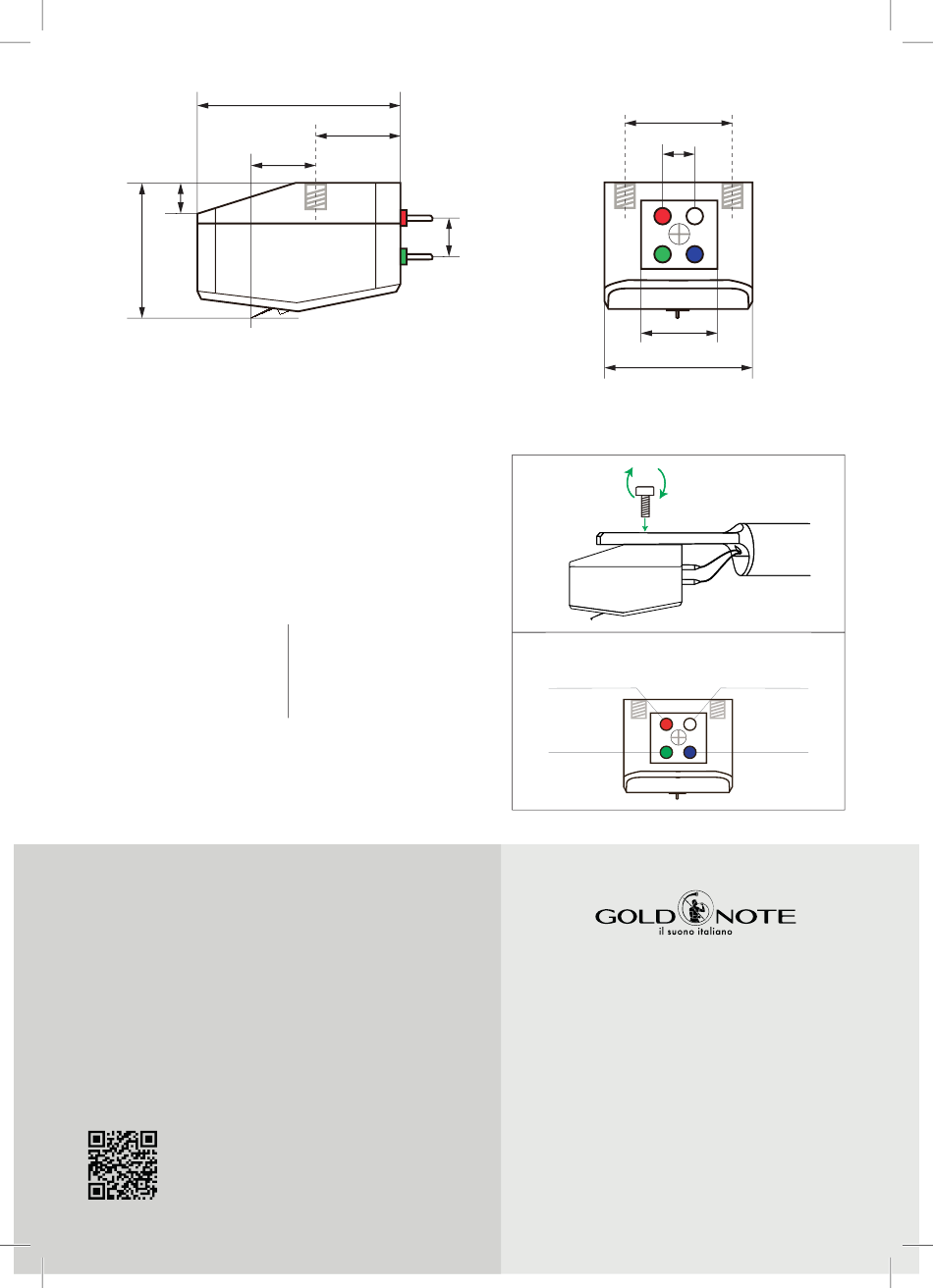

SET-UP
Mount the cartridge on the tonearm head-shell using
the supplied Allen Wrench and one set of the 2,5mm
screws. Adjust it to the stylus position suggested for
your turntable system (see Fig.1).
The output terminals are colour coded for ease of use
(see Fig.2). Please ensure to connect the terminals to
the colour matched head-shell lead of the tonearm.
MACHIAVELLI MkII GOLD
Suggested load
470Ω
Suggested tracking weight
1.8 to 2.1g
NOTE
Applying heat to the output terminals of the cartridge
will cause internal damage to the cartridge.
Designed and handmade
in Firenze, Italy
www.goldnote.it
service@goldnote.it
More info on
our website
25,9mm
11mm
9mm
MACHIAVELLI MkII RED
Suggested load
470Ω
Suggested tracking weight
1.8 to 2.1g
5mm
Fig.1
Fig.2
RIGHT CHANNEL +
RIGHT CHANNEL -
USER MANUAL
12,7mm
4,2mm
9,8mm
19,1mm
x2 x2
LEFT CHANNEL +
LEFT CHANNEL -
