Axis electronic module: camera angle/web interface login
6

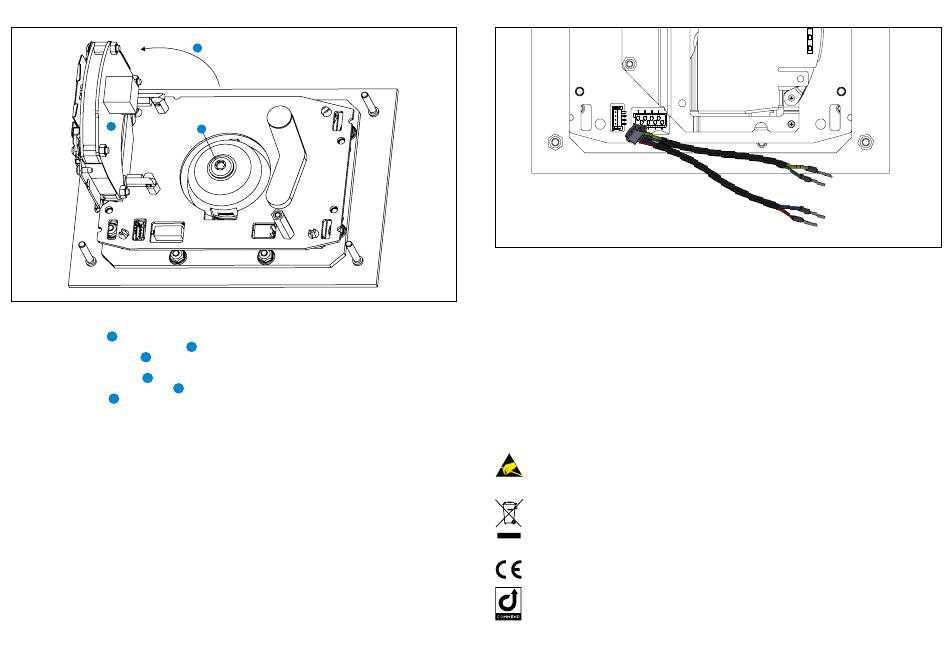

Adjusting the camera
Follow the steps below to adjust the angle of the camera:
1. Loosen the screw 5 (Torx T8).
2. Open up the Axis electronic module
6
3. Loosen the locking screw 7 (Torx T25) on the rear of the camera.
4. Adjust the camera in the desired angle (max. 25° in every direction).
5. Tighten the locking screw .
7
6. Move the Axis electronic module 6 back into its original position.
7. Tighten the screw 5 .
Note:
For further information on installation and settings, see Axis manual "P3904-R Mk II" .
First connection
The IP address is assigned directly via a DHCP server. If the network does not have a DHCP server, the
default address "192.168.0.90/24" is used.
The web interface can be accessed via a web browser using the URL "http://<IP address>" . Additionally,
the URL "http://<user name>:<password>@<IP address>/axis-cgi/mjpg/video.cgi" can be entered in a
web browser to directly access the MJPEG stream.
Login for Axis web interface
User name: root
Password: root
Attention:
After a reset, the password has to be configured manually.
Warning:
This is a Class A product (standard EN 55032). In a domestic environment, this product may cause
radio interference in which case the user may be required to take adequate measures.
6
7
.
Connection for the power supply of the camera
OUT 2
• Plug the connection cable into the OUT 2 connector of the Axis camera LED PCB.
• Connect the connection cable (red and blue wire) to the power supply of the EE 8000 PCB or to the
external power supply unit.
--> RED wire to L1 (P)/power supply 48 to 60 VDC required!
--> BLUE wire to L2 (N)
• Connect the connection cable (green and yellow wire) to OUT 1 or OUT 2 of the EE 8000 PCB.
--> GREEN wire to NO
--> YELLOW wire to COM
• Configuration CCT 800
The respective output (OUT 1 or OUT 2 on the EE 8000 board) has to be configured via CCT 800 to
switch the camera illuminator on/off. It is also possible to use the output as attendant contact,
e.g. to switch on the camera illuminator at call setup.
• To dim the camera illuminator, use the potentiometer on the Axis camera LED PCB.
Handling
Use the original packaging when transporting the device to prevent damage.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or commercial
waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable
in the European Union member states.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling corresponding
standards:
• Electromagnetic compatibility 2014/30/EU
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
For technical specifications, see the respective data sheet.
Keep this description in safe custody.
