Apricum MECtp-Sec Betriebs-/Montageanweisung

MECtp-Sec
Operating Instructions
Product description
The KNX TP line coupler MECtp-Sec connects two TP lines as main line
and subline. MECtp-Sec can be used as KNX line coupler, KNX area
coupler and KNX repeater (without filtering). KNX Data Secure is
supported. Security and Secure Commissioning can be activated.
MECtp-Sec is able to filter the traffic according to the installation place in
the bus system hierarchy and according to the built-in filter tables for
group-oriented communication. Long messages with up to 240 bytes
APDU are supported. Configuring from subline can be deactivated.
Special functions for transmission of telegrams are available. Filtering can
be temporarily deactivated on pressing the Function button (Manual
Function), i.e. to ease commissioning. MECtp-Sec then switches back to
normal operation after expiry of a configurable time period.
MECtp-Sec is a rail-mounted device for installation in distribution boards
on 35 mm DIN rails. The device is supplied with power by the main line.
Operational and filtering states, malfunction and faulty communication are
indicated by LEDs. Lines have a galvanic separation between each other.
Requirements of Directives EMC, RoHS and LVD are met. Standards for
residential, commercial, and industrial environments are fulfilled. The full
text of the EU declaration of conformity is available at the following
internet address: www.apricum.com/mectp-sec
Technical specifications
Power input
Power supply:
Current consumption:
Housing
Dimensions (HxWxD):
Mounting (IEC60715):
Width in space units:
KNX bus connections:
Weight:
Environmental conditions
Operating temperature:
Storage temperature:
Ambient humidity:
Mounting, commissioning and safety notes
• After connection to the KNX bus system, the device works with its
default settings as intended
• Warning: Do not connect to 230 V. The device is supplied by the KNX
bus and does not require any additional external power supply
• The device may only be installed and put into operation by a qualified
electrician or authorized person
• For planning and construction of electric installations the appropriate
specifications, guidelines and regulations in force of the respective
country have to be complied
• For mounting use an appropriate equipment according to IEC60715
• Installation on a 35 mm DIN rail (TH35)
• Connect the KNX bus line as for common KNX bus connections with a
KNX bus cable, to be stripped and plugged into a KNX TP connector
• Do not damage electrical insulations during connecting
• Installation only in dry locations
• Accessibility of the device for operation and visual inspection must be
provided
• For configuring, use the ETS
Release version/date: R1.2 / June 2020
© 2001-2020 Apricum d.o.o.
Mažuranićeva 4, 21312 Podstrana, Hrvatska
Details, modifications and corrections may be subject to change without notice. Apricum gives no warranty for the accuracy of the document. All rights reserved.
21...30 V DC SELV
< 10 mA
90 x 36 x 71 mm
35 mm top-hat rail (TH35)
2 modules at 18 mm
KNX connector (red/black)
for KNX TP main line & subline
62 g
-5...45 °C
-20...60 °C
5...93 % (non-condensing)

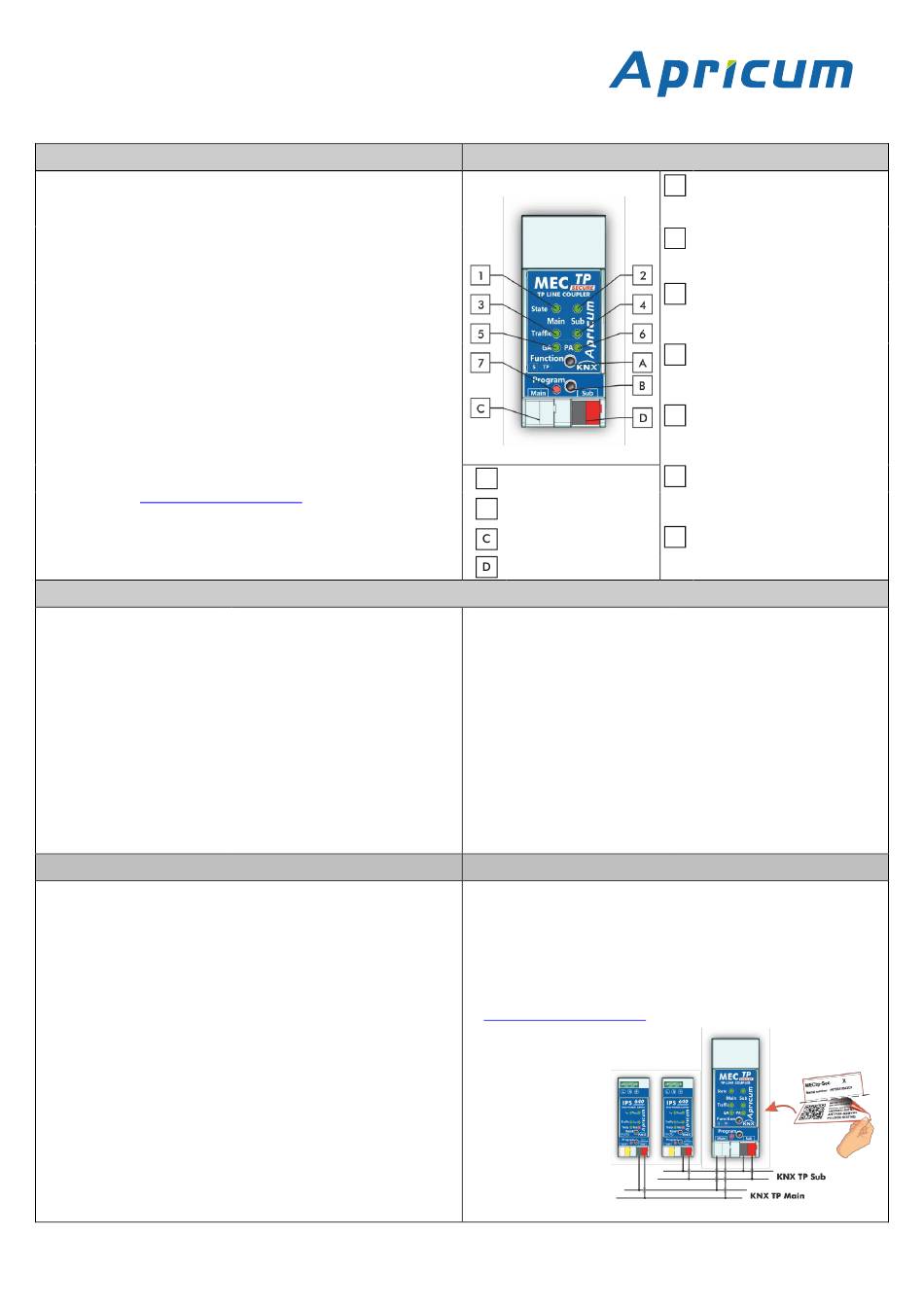

Connectors, buttons and LEDs description
A
Function button
B
Programming button
KNX TP main line connector
KNX TP subline connector
Electrical safety
Pollution degree (IEC60664):
Protection type (IEC60529):
Protection class (IEC61140):
Overvoltage category (IEC60664):
Approbation (ISO/IEC14543-3):
CE Marking
EU Directives:
Standards:
Installation and maintenance
• The housing must not be opened
• Protect the device from moisture, dirt and damage
• The device needs no maintenance
• If necessary, the device can be cleaned with a dry cloth
• In the case of damage (at storage, transport) no repairs may be carried
out by unauthorized persons
• Configuration details and ETS database:
www.apricum.com/mectp-sec
• Device Certificate
and Serial Number
are placed on a
label sidely
adhered.
For archiving, it can
be cut off and
removed. Then, the
cut-off part can only
be identified by
comparison of the
Serial Number.
Bus state KNX TP (Main line)
1
green: Main line OK
orange: Manual Function active
Bus state KNX TP (Subline)
2
green: Subline OK
Telegram traffic KNX TP (Main line)
3
green (blinking):
Telegram traffic extent
red (blinking):
Transmission error
Telegram traffic KNX TP (Subline)
4
green (blinking):
Telegram traffic extent
red (blinking):
Transmission error
Group Address routing
5
green: Filter active
orange: Route all
red: Block all
<off>: Main line / subline different
Physical Address routing
6
green: Filter active
orange: Route all
red: Block all
<off>: Main line / subline different
Programming LED
7
red: Programming Mode active
2
IP20
III
III
KNX-certified
LVD (2014/35/EU)
EMC (2014/30/EU)
RoHS (2011/65/EU)
EN50581
EN61000-6-2/-3
EN IEC 63044-5-1/-2/-3
