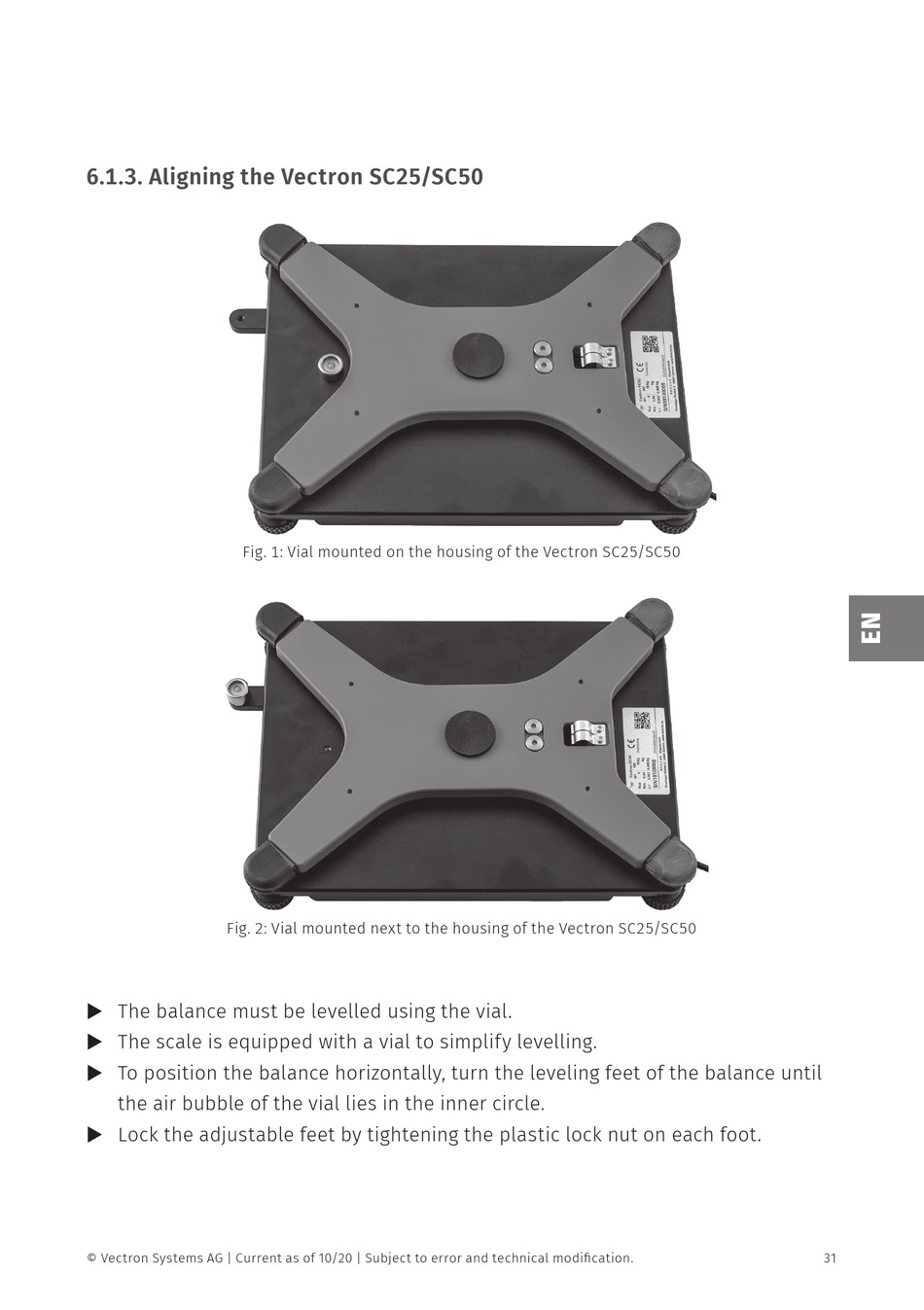

6.1.3. Aligning the Vectron SC25/SC50
Fig. 1: Vial mounted on the housing of the Vectron SC25/SC50
Fig. 2: Vial mounted next to the housing of the Vectron SC25/SC50
X The balance must be levelled using the vial.
X The scale is equipped with a vial to simplify levelling.
X To position the balance horizontally, turn the leveling feet of the balance until
the air bubble of the vial lies in the inner circle.
X Lock the adjustable feet by tightening the plastic lock nut on each foot.
© Vectron Systems AG | Current as of 10/20 | Subject to error and technical modification.
31
