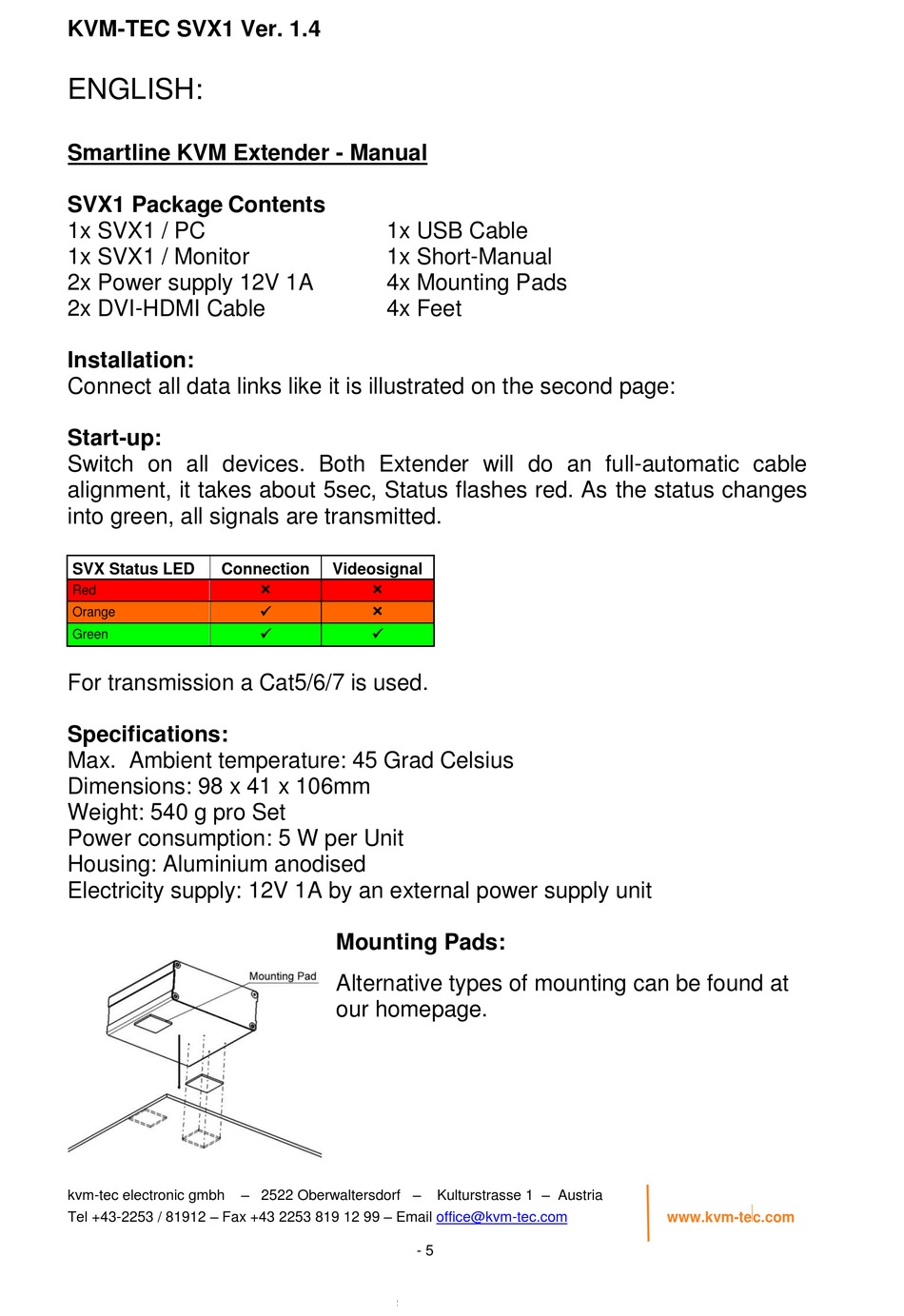

KVM-TEC SVX1 Ver. 1.4
ENGLISH:
Smartline KVM Extender - Manual
SVX1 Package Contents
1x SVX1 / PC
1x SVX1 / Monitor
2x Power supply 12V 1A
2x DVI-HDMI Cable
Installation:
Connect all data links like it is illustrated on the second page:
Start-up:
Switch on all devices. Both Extender will do an full-automatic cable
alignment, it takes about 5sec, Status flashes red. As the status changes
into green, all signals are transmitted.
SVX Status LED
Connection
Red
Orange
Green
For transmission a Cat5/6/7 is used.
Specifications:
Max. Ambient temperature: 45 Grad Celsius
Dimensions: 98 x 41 x 106mm
Weight: 540 g pro Set
Power consumption: 5 W per Unit
Housing: Aluminium anodised
Electricity supply: 12V 1A by an external power supply unit
kvm-tec electronic gmbh
Tel +43-2253 / 81912 – Fax +43 2253 819 12 99 – Email
1x USB Cable
1x Short-Manual
4x Mounting Pads
4x Feet
Videosignal
Mounting Pads:
Alternative types of mounting can be found at
our homepage.
– 2522 Oberwaltersdorf –
Kulturstrasse 1 – Austria
office@kvm-tec.com
- 5
www.kvm-te c.com
