Installation instructions V2.0
MICO BASIC 4.2
Technical data:
Input values:
Input voltage:
+24 V DC (SELV/ PELV)
Residual ripple of power supply
< 5 % for one-phase, 2 % for three-phase
Range of working voltage
18-30 V DC
Frequency of power ON/OFF max 0.5 Hz
Overvoltage protection (suppressor diode) 36 V
No reverse polarity protection
Total operating current:
8 A
(
0 to +20 %)
Maximum summation current of (+24 V)
terminals: 50 A
Output values:
Nominal output voltage:
24V DC, corresponding to the input voltage
Voltage drop at 2 A per each load branch:
Typical 0.1 V
Turn ON capacity:
Max. 20 mF*
Output Current Out 1 ... Out 4: 2 A
The outputs meet the requirements for Class 2
according to UL1310 / NEC Article 725
th
Internal fuse: 4 A delay fuse for each channel
* Depending on: component tolerance, conduit length, used power supply, load current, selected current range

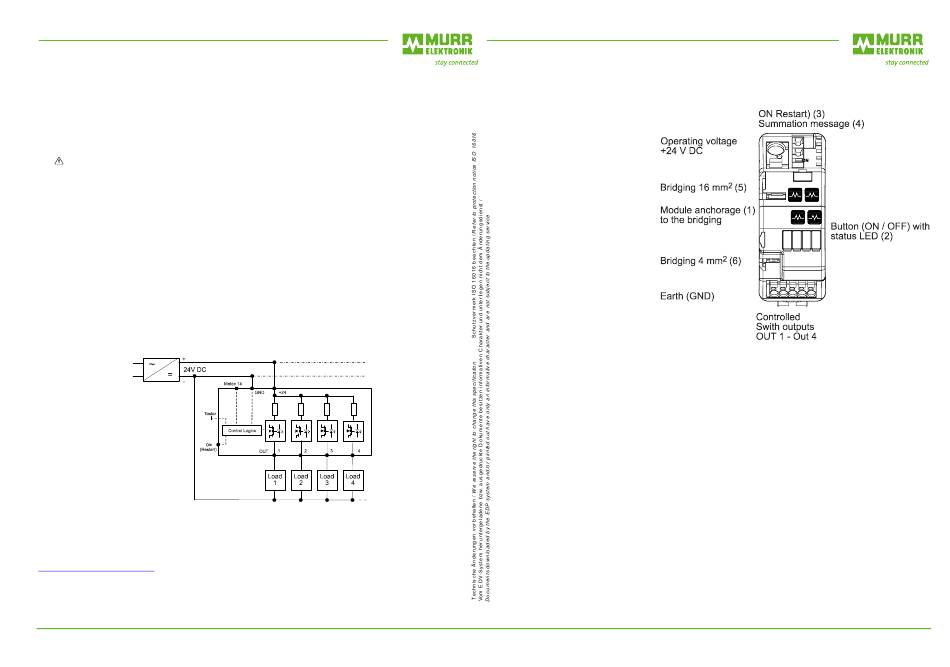

Schematic circuit diagram:
Notice:
Please pay attention to the wire capability in relationship of its cross section, ambient temperature, current as
well as the used protection. For lucid reasons this installation instructions does not contain every detailed
information about this product and may not consider each fictitious case of erection, operation or installation.
Continuing information may be taken from the data sheet or from our homepage in the internet
http://www.murrelektronik.com.
Technical alterations are reserved at any time.
© 2012 Murrelektronik GmbH, Oppenweiler
All rights reserved. Each reprint, even in parts, requires our written consent.
Murrelektronik GmbH
71567 Oppenweiler
GERMANY
Falkenstrasse 3
info@murrelektronik.com
Murrelektronik Intelligent Current Operator
Art.-No.: 9000-41064-0200000MICO
Signalling: See "Displays"
Environment:
Storing temperature:
-40°C to +80°C
Environmental temperature: 0°C to +55°C
Cooling by natural convection
Safety:
Rated insulation voltage: 50 V
degree of pollution: 2
Classification of over-voltage III
Additional output protection:
4 A fuse for each channel internal
(UL 248-14, UL File E10480).
Regulations:
EN 60529: Protective system - IP20
EN 61000-6-2: Immunity to interference
EN 61000-6-3: Interference emission class B
EN 60068-2-6: Oscillating test
EN 60068-2-27: Shock test
Weight: ca. 90 g
Dimensions L x W x D: 90 x 36 x 80 mm
-4-
Telefon +49(0)7191/47-0
Telefax +49(0)7191/47-491000
http://www.murrelektronik.com
Installation instructions V2.0
BASIC 4.2
MICO BASIC 4.2
Art.-No. 9000-41064-0200000
Wiring diagram:
Functional description:
MICO BASIC 4.2 is a 4-channel electronic auxiliary circuit switch and serves as current monitoring. The
operating voltage (+24V DC / at least 10A) supplies the 4 current monitored load circuits (channels). By
engaging the operating voltage, the switched-on channels are time-delay activated (time-delay of each channel
ca. 75 ms) to avoid overload current. When exceeding the permitted operating current, the corresponding
channel will be disconnected pursuant to the disconnecting characteristic. In the event of voltage dip or power
failure the current operating condition will be saved and re-established after the recovery of the supply voltage.
Each channel may be manually connected or disconnected through the buttons
condition is signalised by the LED
(2)
(red/green, see displays). All channels disconnected due to overload
(3)
may be activated through ON-Restart
(see ON-Restart - input). In addition, the module is provided with a
message output
(4)
to establish a summation message (see summation message). A bridging concept permits
the lining-up onto a MICO CLASSIC (e.g. 4.4 / 4.6 / 4.10) without wiring (max. total operating current: 50A). For
this purpose a bridging set is available as an option.
Bridging set:
The bridging set minimises the efforts of wiring, if multiple modules need to be joined together. It offers the
possibility of bridging the following potentials: +24 V DC
with the in the bridging enclosed connecting piece
Art.-No.: 9000-41034-0000001 (packing unit 10 pieces)
Art.-No.: 9000-41034-0000002 (packing unit 1 pieces)
Murrelektronik GmbH
71567 Oppenweiler
GERMANY
Falkenstrasse 3
info@murrelektronik.com
Murrelektronik Intelligent Current Operator
Art.-No.: 9000-41064-0200000
(2)
. The current operating
(5)
(6)
and GND
. It is necessary to fix the modules
(1)
. The bridging set is available under:
