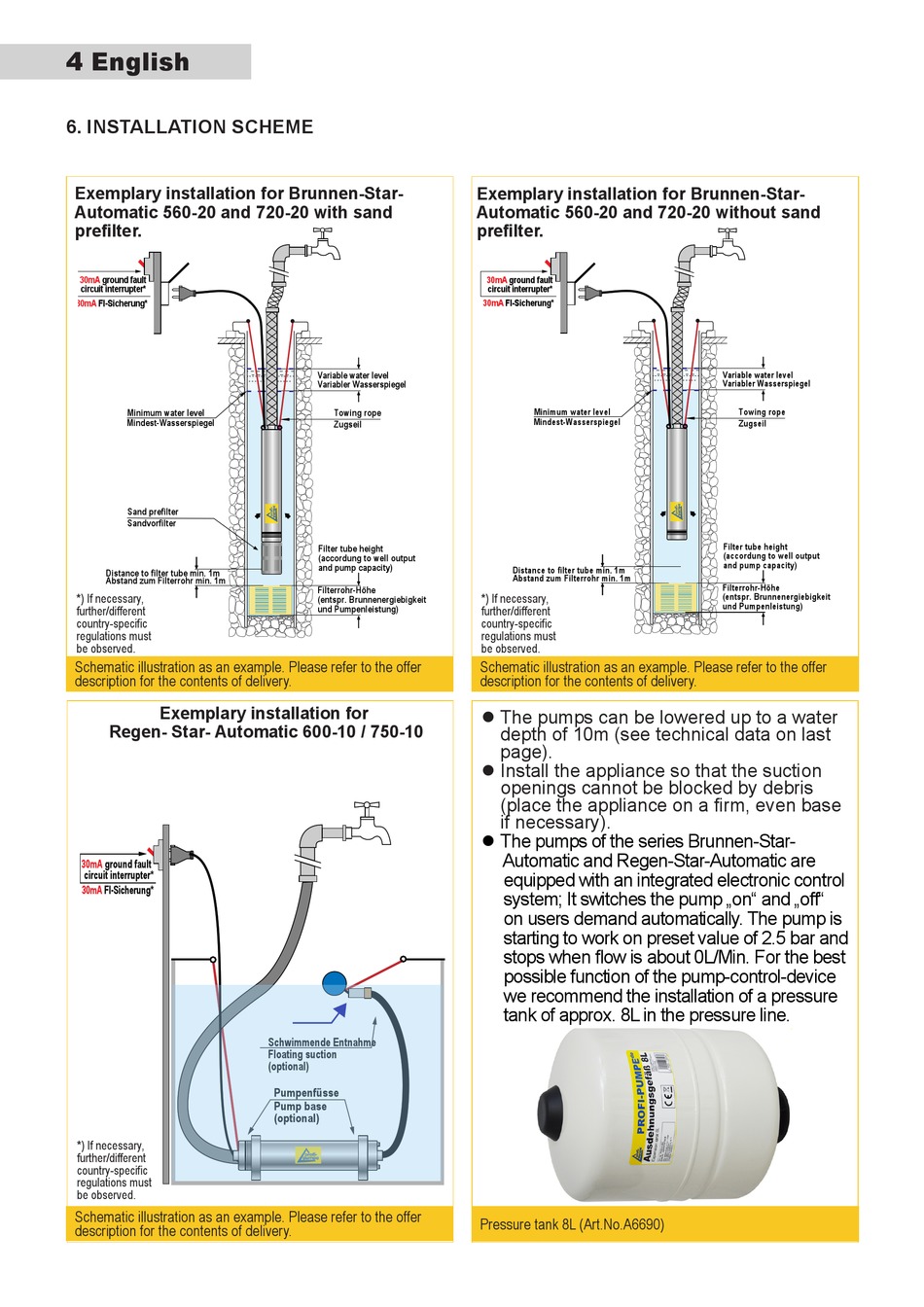

6. INSTALLATION SCHEME

Exemplary installation for Brunnen-Star-
Automatic 560-20 and 720-20 with sand
prefilter.
30mA ground fault
circuit interrupter*
30mA FI-Sicherung*
Minimum water level
Mindest-Wasserspiegel
Sand prefilter
Sandvorfilter
Distance to filter tube min. 1m
Abstand zum Filterrohr min. 1m
*) If necessary,
further/different
country-specific
regulations must
be observed.
Schematic illustration as an example. Please refer to the offer
description for the contents of delivery.
Exemplary installation for
Regen- Star- Automatic 600-10 / 750-10
30mA ground fault
circuit interrupter*
30mA FI-Sicherung*
*) If necessary,
further/different
country-specific
regulations must
be observed.
Schematic illustration as an example. Please refer to the offer
description for the contents of delivery.
Variable water level
Variabler Wasserspiegel
Towing rope
Zugseil
Filter tube height
(accordung to well output
and pump capacity)
Filterrohr-Höhe
(entspr. Brunnenergiebigkeit
und Pumpenleistung)
Schwimmende Entnahme
Floating suction
(optional)
Pumpenfüsse
Pump base
(optional)
Exemplary installation for Brunnen-Star-
Automatic 560-20 and 720-20 without sand
prefilter.
30mA ground fault
circuit interrupter*
30mA FI-Sicherung*
Minimum water level
Mindest-Wasserspiegel
Distance to filter tube min. 1m
Abstand zum Filterrohr min. 1m
*) If necessary,
further/different
country-specific
regulations must
be observed.
Schematic illustration as an example. Please refer to the offer
description for the contents of delivery.
l The pumps can be lowered up to a water
depth of 10m (see technical data on last
page).
l Install the appliance so that the suction
openings cannot be blocked by debris
(place the appliance on a firm, even base
if necessary).
l The pumps of the series Brunnen-Star-
Automatic and Regen-Star-Automatic are
equipped with an integrated electronic control
system; It switches the pump „on" and „off"
on users demand automatically. The pump is
starting to work on preset value of 2.5 bar and
stops when flow is about 0L/Min. For the best
possible function of the pump-control-device
we recommend the installation of a pressure
tank of approx. 8L in the pressure line.
Pressure tank 8L (Art.No.A6690)
Variable water level
Variabler Wasserspiegel
Towing rope
Zugseil
Filter tube height
(accordung to well output
and pump capacity)
Filterrohr-Höhe
(entspr. Brunnenergiebigkeit
und Pumpenleistung)
