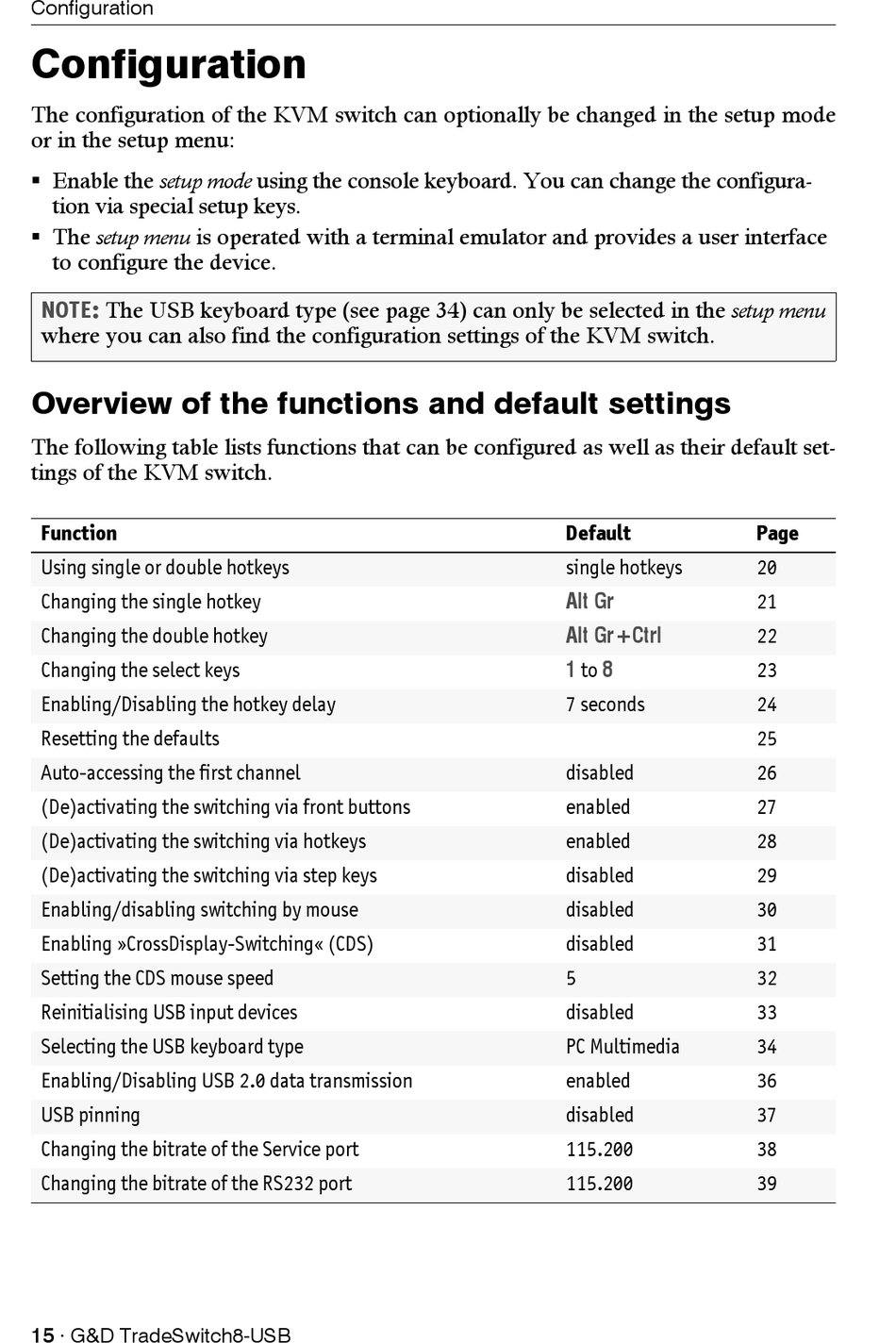

Configuration

Configuration
The configuration of the KVM switch can optionally be changed in the setup mode
or in the setup menu:
 Enable the setup mode using the console keyboard. You can change the configura-
tion via special setup keys.
 The setup menu is operated with a terminal emulator and provides a user interface
to configure the device.
NOTE: The USB keyboard type (see page 34) can only be selected in the setup menu
where you can also find the configuration settings of the KVM switch.

Overview of the functions and default settings

The following table lists functions that can be configured as well as their default set-
tings of the KVM switch.
Function
Using single or double hotkeys
Changing the single hotkey
Changing the double hotkey
Changing the select keys
Enabling/Disabling the hotkey delay
Resetting the defaults
Auto-accessing the first channel
(De)activating the switching via front buttons
(De)activating the switching via hotkeys
(De)activating the switching via step keys
Enabling/disabling switching by mouse
Enabling »CrossDisplay-Switching« (CDS)
Setting the CDS mouse speed
Reinitialising USB input devices
Selecting the USB keyboard type
Enabling/Disabling USB 2.0 data transmission
USB pinning
Changing the bitrate of the Service port
Changing the bitrate of the RS232 port
15 · G&D TradeSwitch8-USB
Default
single hotkeys
Alt Gr
Alt Gr+Ctrl
1 8
to
7 seconds
disabled
enabled
enabled
disabled
disabled
disabled
5
disabled
PC Multimedia
enabled
disabled
115.200
115.200
Page
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
36
37
38
39
