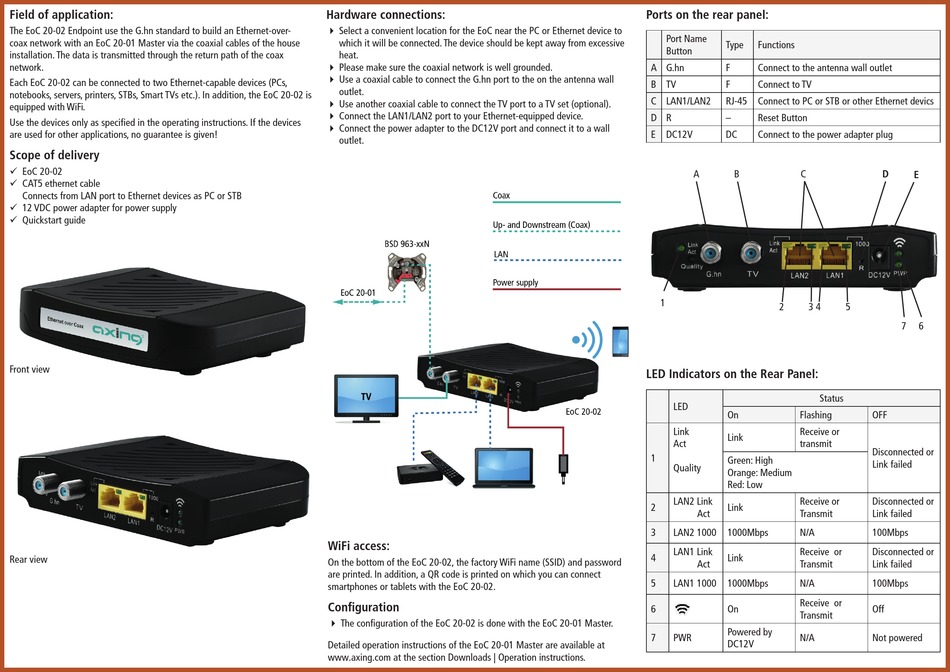

Field of application:
The EoC 20-02 Endpoint use the G.hn standard to build an Ethernet-over-
coax network with an EoC 20-01 Master via the coaxial cables of the house
installation. The data is transmitted through the return path of the coax
network.
Each EoC 20-02 can be connected to two Ethernet-capable devices (PCs,
notebooks, servers, printers, STBs, Smart TVs etc.). In addition, the EoC 20-02 is
equipped with WiFi.
Use the devices only as specified in the operating instructions. If the devices
are used for other applications, no guarantee is given!
Scope of delivery
9 EoC 20-02
9 CAT5 ethernet cable
Connects from LAN port to Ethernet devices as PC or STB
9 12 VDC power adapter for power supply
9 Quickstart guide
Front view
Rear view
Hardware connections:
 Select a convenient location for the EoC near the PC or Ethernet device to
which it will be connected. The device should be kept away from excessive
heat.
 Please make sure the coaxial network is well grounded.
 Use a coaxial cable to connect the G.hn port to the on the antenna wall
outlet.
 Use another coaxial cable to connect the TV port to a TV set (optional).
 Connect the LAN1/LAN2 port to your Ethernet-equipped device.
 Connect the power adapter to the DC12V port and connect it to a wall
outlet.
WiFi access:
On the bottom of the EoC 20-02, the factory WiFi name (SSID) and password
are printed. In addition, a QR code is printed on which you can connect
smartphones or tablets with the EoC 20-02.
Configuration
 The configuration of the EoC 20-02 is done with the EoC 20-01 Master.
Detailed operation instructions of the EoC 20-01 Master are available at
www.axing.com at the section Downloads | Operation instructions.
Ports on the rear panel:
Port Name
Type
Functions
Button
A G.hn
F
Connect to the antenna wall outlet
B TV
F
Connect to TV
C LAN1/LAN2
RJ-45
Connect to PC or STB or other Ethernet devics
D R
Reset Button
E DC12V
DC
Connect to the power adapter plug
C
A
B
1
2
3 4
LED Indicators on the Rear Panel:
Status
LED
On
Flashing
Link
Receive or
Link
Act
transmit
1
Green: High
Quality
Orange: Medium
Red: Low
LAN2 Link
Receive or
2
Link
Act
Transmit
3
LAN2 1000
1000Mbps
N/A
LAN1 Link
Receive or
4
Link
Act
Transmit
5
LAN1 1000
1000Mbps
N/A
Receive or
6
On
Transmit
Powered by
7
PWR
N/A
DC12V
D
E
5
7
6
OFF
Disconnected or
Link failed
Disconnected or
Link failed
100Mbps
Disconnected or
Link failed
100Mbps
Off
Not powered
