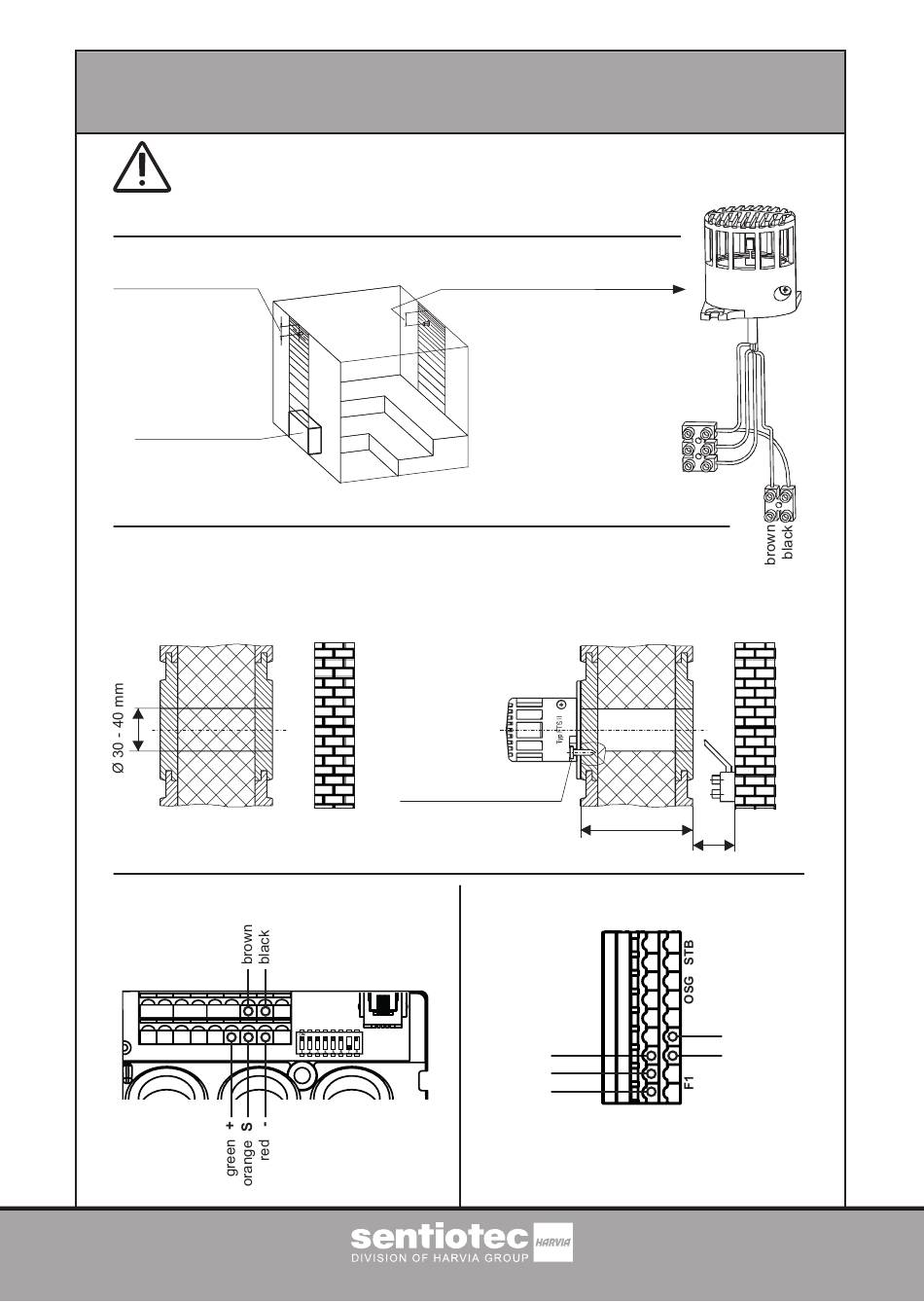

HUMIDITY- TEMPERATURE SENSOR FTS2
Installation may only be performed by a qualified electrician
or similarly qualified person.
1. Arrangement:
150 mm
Temperature sensor F1
in the area above the
heating system
Heating system
Evaporator
2. Installation:
1. Step:
Drill a hole Ø 30 - 40 mm in the
middle of a cabin wall panel.
Keep 150 mm distance to the
ceiling.
3. Connection:
Pro B3, Pro C3, Just Sauna combi, Pro D3(i)
OSG STB F1
Version 02/18
193
150 mm
Humidity- Temperature
sensor FTS II
2. Step:
Pull the connecting line (5-wire) coming
from the control unit through the hole from
the outer side of the cabin. Connect and
secure with the sensor system plug.
2 wood screws 4 x 16
Sauna control home.com4
red
orange
green
red
orange
green
40 - 100 mm
>20 mm
black
brown
