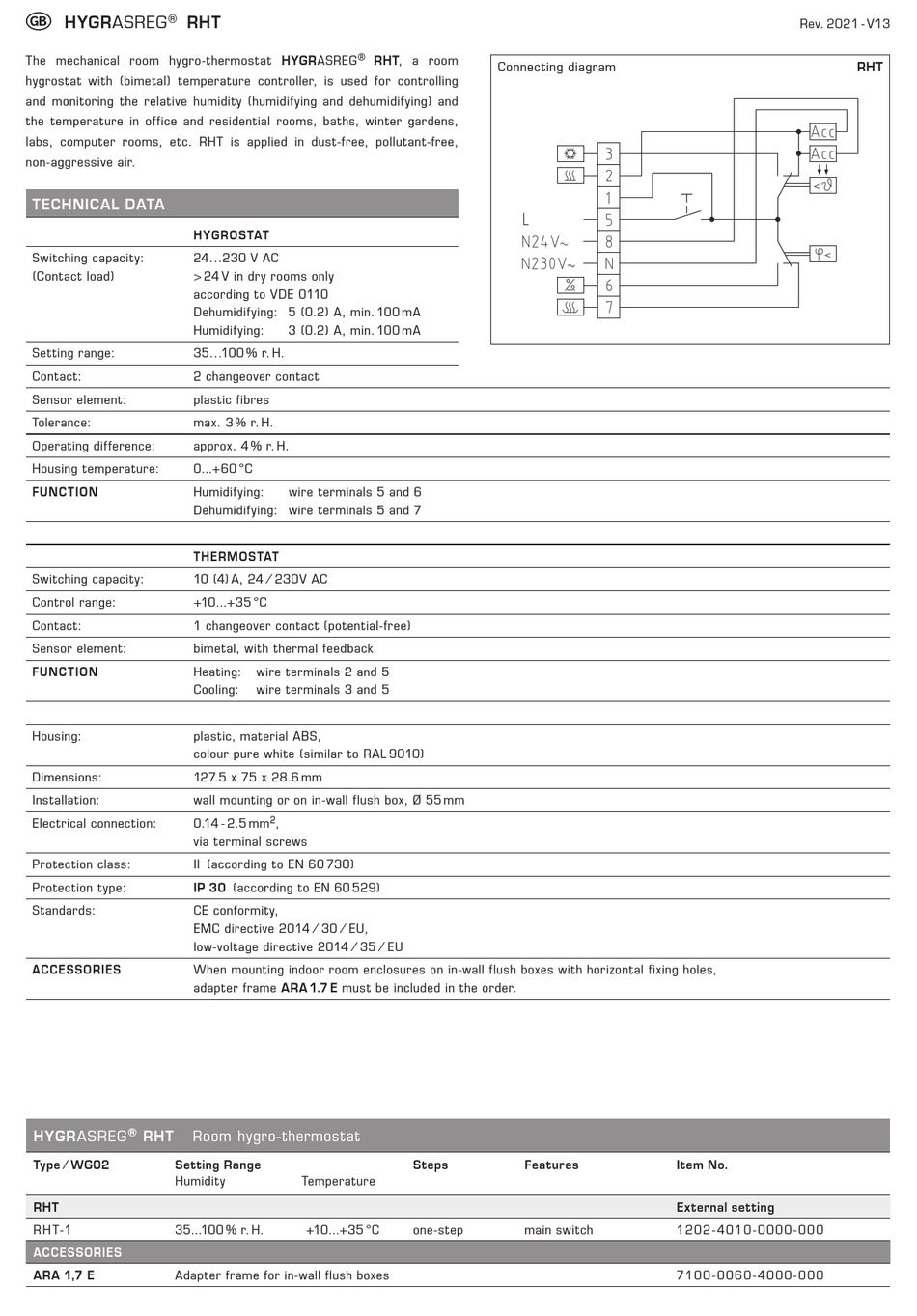

HYGRASREG RHT
The mechanical room hygro-thermostat HYGRASREG
hygrostat with (bimetal) temperature controller, is used for controlling
and monitoring the relative humidity (humidifying and dehumidifying) and
the temperature in office and residential rooms, baths, winter gardens,
labs, computer rooms, etc. RHT is applied in dust-free, pollutant-free,
non-aggressive air.
TECHNICAL DATA
HYGROSTAT
Switching capacity: 24...230 V AC
(Contact load) > 24 V in dry rooms only
according to VDE 0110
Dehumidifying: 5 (0.2) A, min. 100 mA
Humidifying:
Setting range: 35...100 % r. H.
Contact: 2 changeover contact
Sensor element: plastic fibres
Tolerance: max. 3 % r. H.
Operating difference: approx. 4 % r. H.
Housing temperature: 0...+60 °C
FUNCTION Humidifying:
Dehumidifying: wire terminals 5 and 7
THERMOSTAT
Switching capacity: 10 (4) A, 24 ⁄ 230V AC
Control range: +10...+35 °C
Contact: 1 changeover contact (potential-free)
Sensor element: bimetal, with thermal feedback
FUNCTION Heating:
Cooling:
Housing: plastic, material ABS,
colour pure white (similar to RAL 9010)
Dimensions: 127.5 x 75 x 28.6 mm
Installation: wall mounting or on in-wall flush box, Ø 55 mm
Electrical connection: 0.14 - 2.5 mm
via terminal screws
Protection class: II (according to EN 60 730)
Protection type: IP 30 (according to EN 60 529)
Standards: CE conformity,
EMC directive 2014 ⁄ 30 ⁄ EU,
low-voltage directive 2014 ⁄ 35 ⁄ EU
ACCESSORIES
When mounting indoor room enclosures on in-wall flush boxes with horizontal fixing holes,
adapter frame ARA 1.7 E must be included in the order.
®
HYGRASREG RHT Room hygro-thermostat
Type ⁄ WG02 Setting Range
Humidity
RHT
R H T-1 35...100 % r. H.
ACCESSORIES
ARA 1,7 E
Adapter frame for in-wall flush boxes
® RHT, a room
3 (0.2) A, min. 100 mA
wire terminals 5 and 6
wire terminals 2 and 5
wire terminals 3 and 5
2
,
Steps
Temperature
+10...+35 °C one-step
Connecting diagram
Features
main switch
Rev. 2021 - V13
Item No.
External setting
1202-4010- 0000- 000
7100- 0060- 4000-000
RHT
