Schneider Intercom GE 800 Kurzanleitung

Intercom Server GE 800
Digital IP Intercom Server for connection of up to 56 digital, 56 analogue or 112 IP subscribers.
Extent of supply
• Intercom Server GE 800
• G8-GEN (power supply card)
• G8-GEP (processor card)
• G8-NET (networking card)
• G8A-GEN (installation board)
• G8A-NET (installation board)
• Depending on version: country-specific transformer
Connection G8A-GEN
G8A-GEN
Music /
alarm
input
MU1
1
MU2
Floating
IN1
2
contacts
3
IN2
4
5
S1
S2
S1W S1W
S1 S1
RS-232 (configuration)
S2W S2W
S2 S2
+30V
DC
or Power supply GE 800
24V AC
AC
24V AC
e.g.:
Door opener
Grounding
Power supply
Installation
Plug-in cards
Connection G8A-NET
1....GND 1....GND
(Shield) (Shield)
6
2....TXD 2....TXD
7
3....RXD 3....RXD
8 4....NC 4....NC
UPLINK Ethernet (networking and configuration)
5....GND 5....GND
9
6....NC 6....NC
7....NC 7....NC
8....NC 8....NC
9....NC 9....NC
DOWNLINK
OUT (GEV) Connection to network cards (G8-CNET-W, G8-CNET-E1)
or GE 700 (G7-GEV)
IN (GEV)
Grounding point
for wrist strap
grounding
Installation boards
Tool for removing
of installation
boards

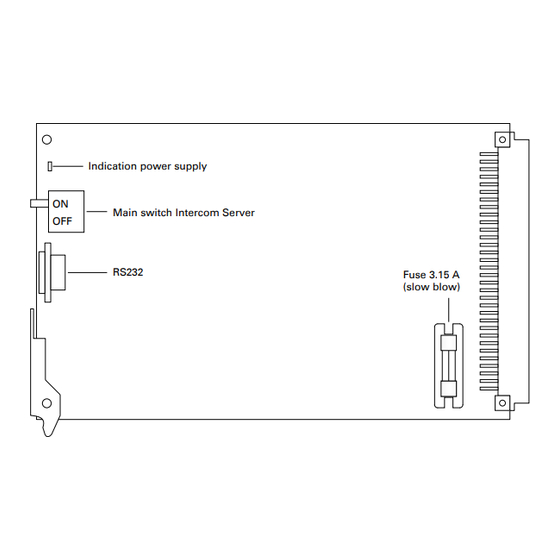

Power supply card G8-GEN
Indication power supply
ON
Main switch Intercom Server
OFF
RS232
Fuse 3.15 A
(slow blow)
Latest software and documentation
To download the latest software and documentation, enter the PIN code to
the right at pin.commend.com
Safety information
• This device shall be installed or replaced by trained and qualified personnel only.
• Only use recommended tools when installing the device.
• Do not place the device in areas where it may become wet or damp, and avoid dusty, humid and
high temperature environments.
• All connected circuits shall fulfil the requirements for Safety Extra Low Voltage (SELV) and Limited
Power Source (LPS) according to IEC/EN 60950-1.
• Only accessories that comply with the device's technical specifications shall be used.
• Use shielded Ethernet cables only.
• Before using the device, ensure all cables are connected correctly and not damaged.
• Disconnect the power cable from the device for any maintenance.
• Allow the device to cool down completely before touching parts inside.
• Do not make any unauthorised modifications to the device.
• If heavy electromagnetic interference is to be expected (industrial environments), then grounding of
the Intercom Server is mandatory.
• The earth terminal of the installation board G8A-GEN is used as grounding point for wrist strap
grounding.
• Attention: This is a Class A product. In a domestic environment this product may cause radio inter-
ference in which case the user may be required to take adequate measures.
Handling
Use the original packaging when transporting the device to prevent damage.
Before exchanging of cards, ESD precautions must be observed.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or commercial
waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable
in the European Union member states.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling
corresponding standard:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and
electronic equipment (directive 2011/65/EU)
For technical specifications, see the respective manual.
Keep this description in safe custody.
Type: D-BZ-GE800, Version: 1.3/1117 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
Processor card G8-GEP
Status LED
1
2
3
4
DIP switch
PIN-CODE
CC23AF 7E1C51
Valid until 30-12-2018
pin.commend.com
