Dear customer!
Rodcraft Pneumatic Tools thanks you for the purchase of one of our products and invites you to reading this user manual.
All necessary information for an adequate use of the purchased equipment is contained herein: it is advisable to read everything from cover to cover and to
observe the references.
Please keep the user manual in good order. The contents of this manual may change without prior notice and without further obligations, so that changes
and improvements can be inserted into already distributed copies.
It is our aim to manufacture products, with which you can work as safe and efficient as possible. Most important for your safety are your caution and
judgment in handling this product and other tools. These safety precautions contain some of the important sources of danger; however, they cannot cover all
possible risks.
Without prior written permission of the manufacturer copying or translation of any part of this manual is prohibited.

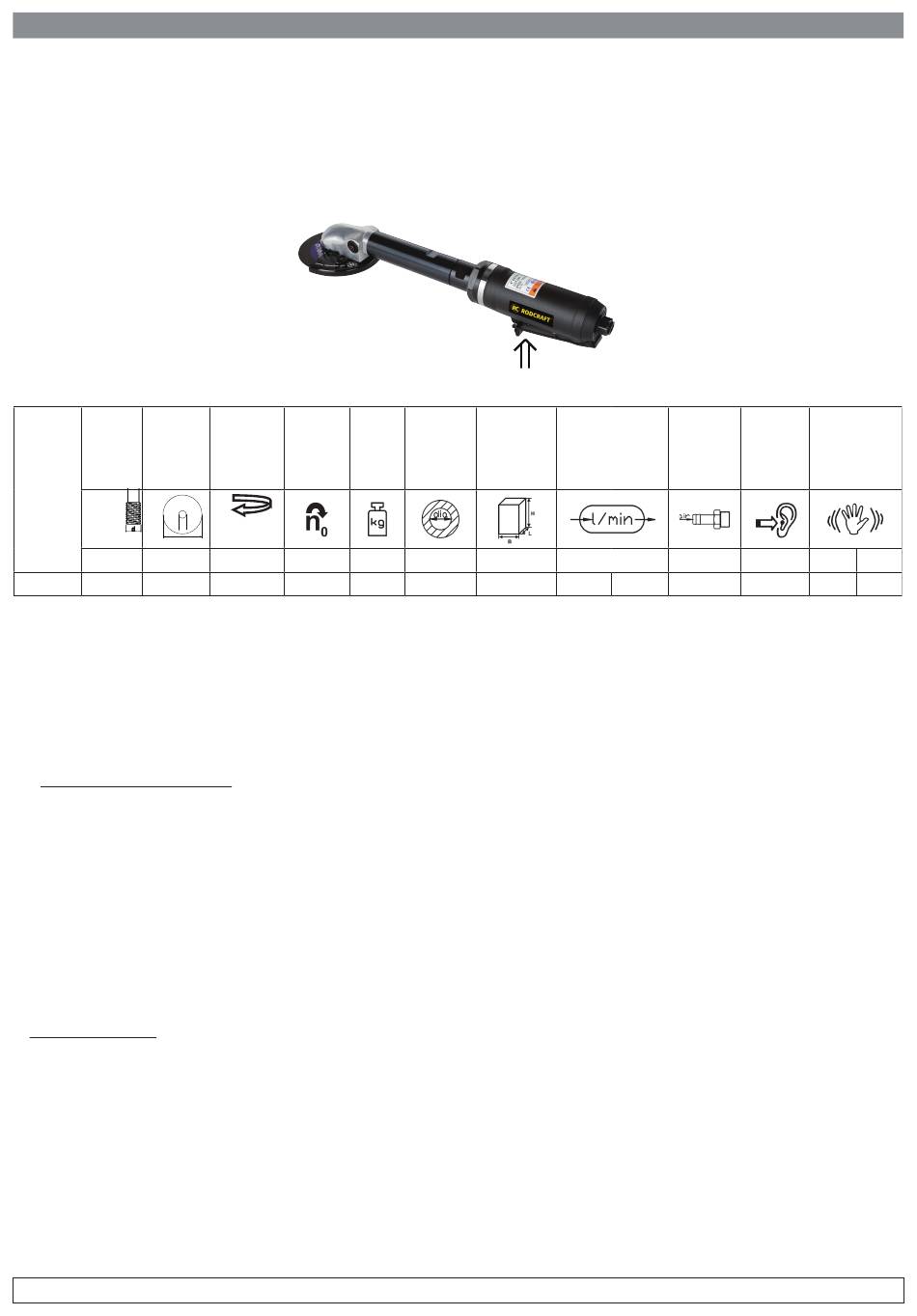

1. Technical Data

Model Thread
Diameter
D2
D1
[mm] [mm]
9.52 100 9.52
RC7170 x
FT: female thread
max pressure 6.3 bar (90 psi)
a :Vibration level, k Uncertainty ; L
hd
Declaration of noise (ISO 15744) and vibration emission (ISO 28927-1)
All values are current as of the date of this publication. For the latest information please visit rodcraft.com.
These declared values were obtained by laboratory type testing in accordance with the stated standards and are suitable for comparison with the declared
values of other tools tested in accordance with the same standards. These declared values are not adequate for use in risk assessments and values measured
in individual work places may be higher. The actual exposure values and risk of harm experienced by an individual user are unique and depend upon the way
the user works, the workpiece and the workstation design, as well upon the exposure time and the physical condition of the user.
We, RODCRAFT PNEUMATIC TOOLS , cannot be held liable for the consequences of using the declared values, instead of values reflecting the actual expo-
sure, in an individual risk assessment in a work place situation over which we have no control.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed. An EU guide to managing hand-arm vibration can be found at www.
pneurop.eu/uploads/documents/pdf/PN3-02-NV_Declaration_info_sheet_0111.pdf
We recommend a programme of health surveillance to detect early symptoms which may relate to noise or vibration exposure, so that management procedures
can be modified to help prevent future impairment.

2. Application and Function

• This product is designed for removing material using abrasives. No other use permitted. For professional use only. Do not misuse the tool.
• Please read the product safety information carefully!
3. Implementation and Operation
General Information:
• Connect device as shown in Fig.01.
• To use a backing plate, it must be screwed tightly to the drive spindle.
• Remove the wrench for tightening prior to operating the machine.
• To start the machine, simply push the lever. Machine speed is increase by increasing pressure on the main switch. Release the main switch to stop.
Power Speed Weight
[W] [min-1] [kg]
746 14000 1.8
Sound pressure level dB(A), K
pA
Generally the safety guidelines are to be observed when working with the equipment.
RODCRAFT PNEUMATIC TOOLS
EN
START
Inner Hose Dimension
Dia. axb
[mm] [mm]
10
370x75
= K = 3 dB Uncertainty.
pA WA
Air Consumtion
Air Inlet
Average – con-
tinuous
[l/min] [inch]
199 216 3/8" FT
Original Instruction
Sound-
Vibrations
pressure
dB(A) a [ ] k [ ]
m/s² m/s²
hd
86 3 3
