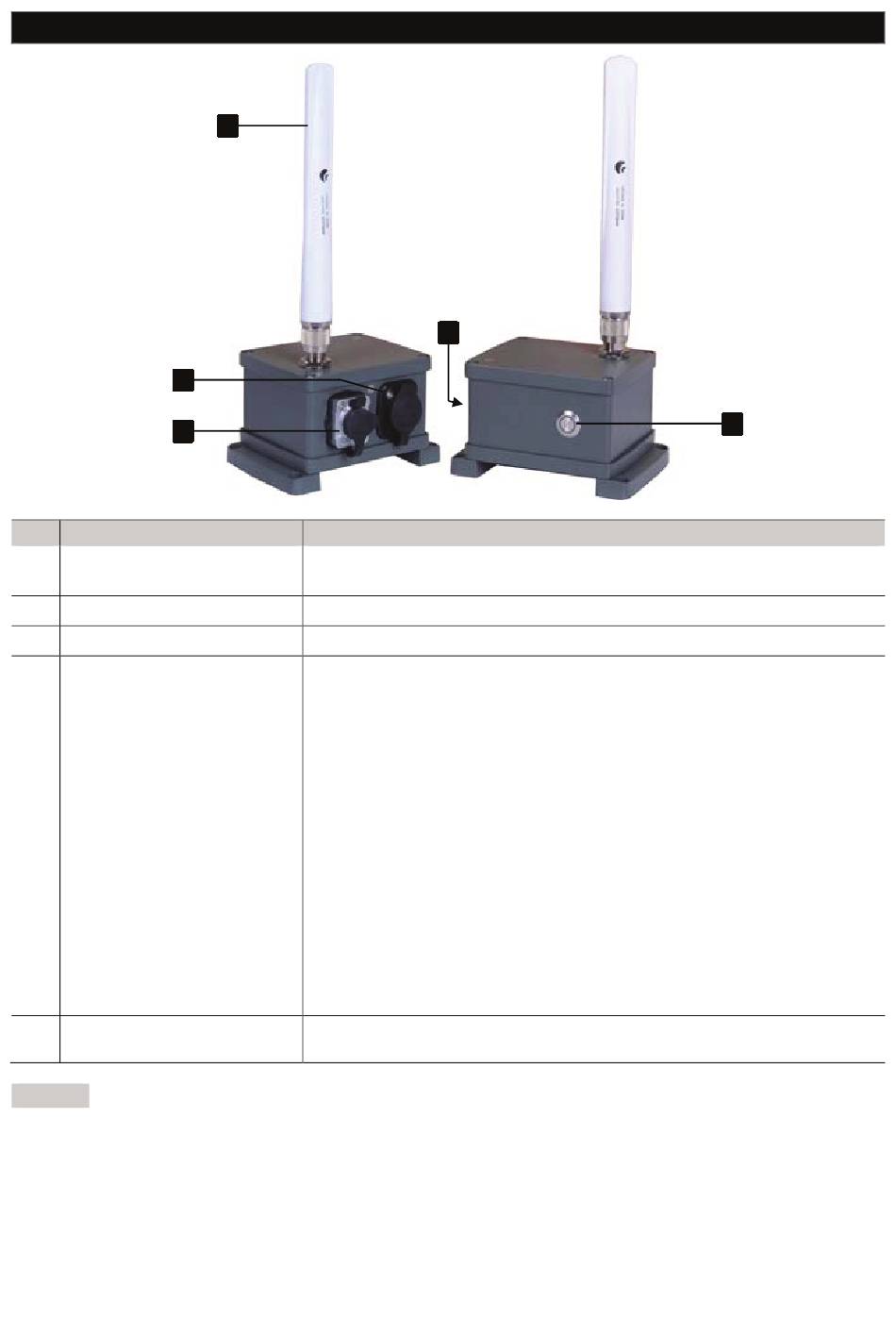

No. Element
1 Antenna
2 AC230V jack
3 DMX IN/DMX OUT plug
4 FUNCTION button with
operating indicator
5 Pressure compensation
element
Note
• This user manual describes model WDR-G5 RX. Model WDS-G5 TX has an additional DMX input.

OPERATING ELEMENTS AND CONNECTIONS

1
Function
Screw on the antenna provided to the antenna input and put it in a vertical
position.
Lockable IP T-Con input for mains connection.
DMX input (model WDS-G5 TX only) and DMX output, 3-pin XLR
Press this button shortly on the transmitter to pair it to receivers.
Hold this button and connect the device to mains power to switch
between transmitter and receiver mode (model WDS-G5 TX only).
Meaning of the LED in transmission mode:
• Lights permanently: Transmission path active, DMX signals are being
sent
• Flashes every 1.0 sec: Transmission path active, no DMX signal present
• Flashes every 0.2 sec: The device tries to set up a transmission path to
a receiver
Meaning of the LED in receiver mode:
• Lights permanently: Transmission path active, DMX signals are being
received
• Flashes every 1.0 sec: Transmission path active, no DMX signal present
• Flashes every 0.2 sec: The device tries to set up a transmission path to
a transmitter
• Off: Transmission path not active
Prevents the development of condensation inside the device.
5
12 • EN
