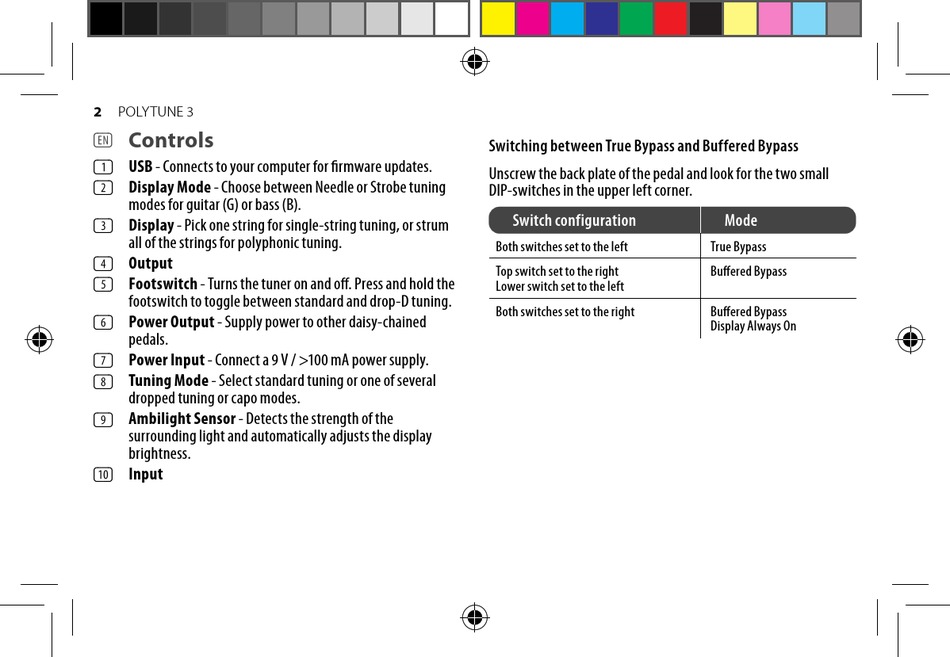

Switch Configuration - TC Electronic POLYTUNE 3 Schnellstart

2
POLYTUNE 3
Controls
(EN)
USB - Connects to your computer for firmware updates.
(1)
Display Mode - Choose between Needle or Strobe tuning
(2)
modes for guitar (G) or bass (B).
Display - Pick one string for single-string tuning, or strum
(3)
all of the strings for polyphonic tuning.
Output
(4)
Footswitch - Turns the tuner on and off. Press and hold the
(5)
footswitch to toggle between standard and drop-D tuning.
Power Output - Supply power to other daisy-chained
(6)
pedals.
Power Input - Connect a 9 V / >100 mA power supply.
(7)
Tuning Mode - Select standard tuning or one of several
(8)
dropped tuning or capo modes.
Ambilight Sensor - Detects the strength of the
(9)
surrounding light and automatically adjusts the display
brightness.
Input
(10)
Switching between True Bypass and Buffered Bypass
Unscrew the back plate of the pedal and look for the two small
DIP-switches in the upper left corner.

Switch configuration

Both switches set to the left
Top switch set to the right
Lower switch set to the left
Both switches set to the right
Mode
True Bypass
Buffered Bypass
Buffered Bypass
Display Always On
